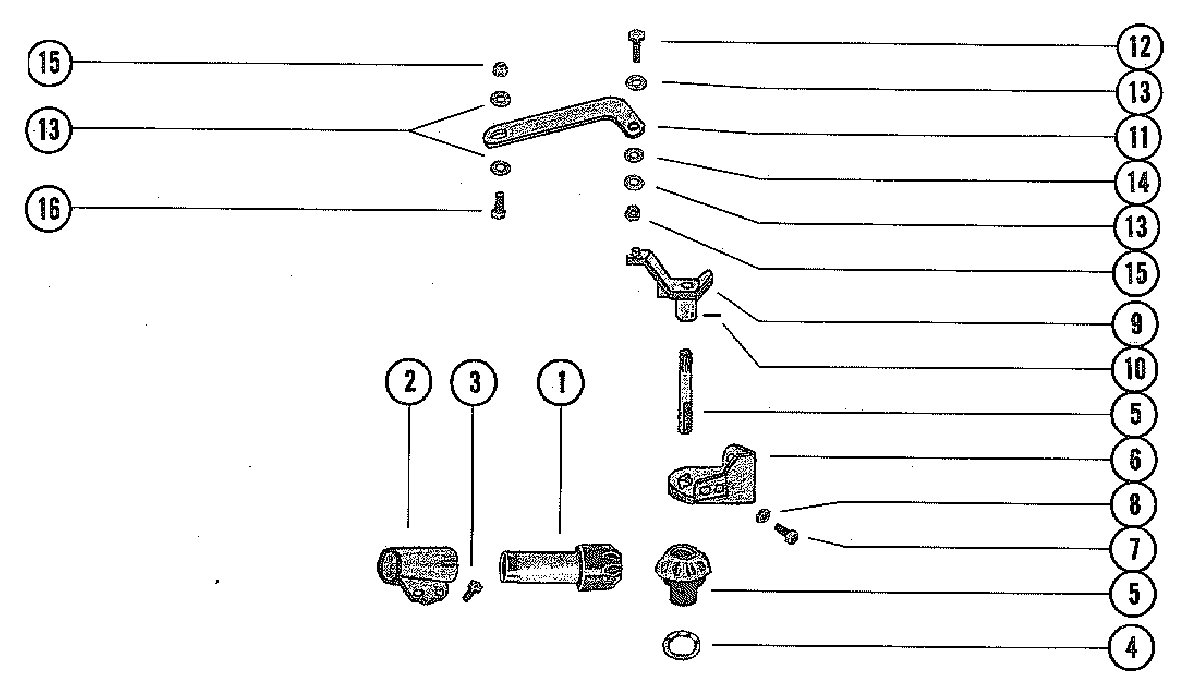

THROTTLE CONTROL LINKAGE для Mercury - 40 (1 CYL.) 3296137 THRU 4107219

  • №
    Артикул
    Название
  • 1
    43-60856 GEAR, HORIZONTAL - THROTTLE CONTROL
    GEAR, HORIZONTAL - THROTTLE CONTROL
  • 2
    60885T HOUSING, HORIZONTAL GEAR
    HOUSING, HORIZONTAL GEAR
  • 3
    10-96138 SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL (5/8")
    SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL (5/8")
  • 4
    15-64653A1 SHIM, PINION GEAR TO BOTTOM COWL
    SHIM, PINION GEAR TO BOTTOM COWL
  • 5
    42666A3 GEAR AND SHAFT ASS'Y, THROTTLE CONTROL
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
    GEAR AND SHAFT ASS'Y, THROTTLE CONTROL
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
  • 5&9
    42666A3 GEAR AND SHAFT ASS'Y, THROTTLE CONTROL
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
    GEAR AND SHAFT ASS'Y, THROTTLE CONTROL
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
  • 6
    62099T BRACKET, THROTTLE CONTROL LEVER
    BRACKET, THROTTLE CONTROL LEVER
  • 7
    10-23015 SCREW, ADJUSTING - THROTTLE (1")
    SCREW, ADJUSTING - THROTTLE (1")
  • 8
    11-68219 NUT, LOCK - THROTTLE ADJUSTING SCREWS
    NUT, LOCK - THROTTLE ADJUSTING SCREWS
  • 9
    42666A3 LEVER, THROTTLE CONTROL
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
    LEVER, THROTTLE CONTROL
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
  • 10
    17-27088 PIN, ROLL - LEVER TO VERTICAL SHAFT
    PIN, ROLL - LEVER TO VERTICAL SHAFT
  • 11
    60920 LINK, THROTTLE LEVER TO STATOR PLATE
    LINK, THROTTLE LEVER TO STATOR PLATE
  • 12
    10-34696 SCREW, THROTTLE LINK TO TTHROTTLE LEVER (3/4")
    SCREW, THROTTLE LINK TO TTHROTTLE LEVER (3/4")
  • 13
    12-34392 WASHER, THROTTLE LINK CREW
    WASHER, THROTTLE LINK CREW
  • 14
    13-29720 WASHER, WAVE - THROTTLE LINK SCREW
    WASHER, WAVE - THROTTLE LINK SCREW
  • 15
    11-28656 NUT, THROTTLE LINK SCREW
    NUT, THROTTLE LINK SCREW
  • 16
    10-56027 SCREW, THROTTLE LINK TO STATOR PLATE (7/8")
    SCREW, THROTTLE LINK TO STATOR PLATE (7/8")
