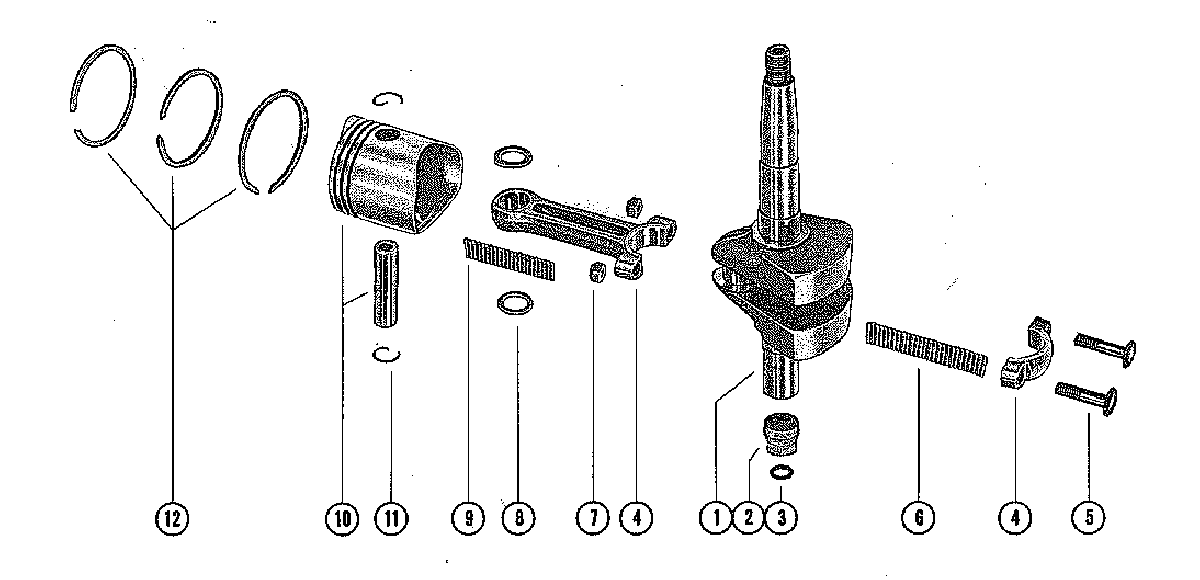

CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 40 (1 CYL.) 3296137 THRU 4107219
-
№АртикулНазвание
-
1427-3513 CRANKSHAFTCRANKSHAFT
-
226-72793 CARRIER ASSEMBLY
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWCARRIER ASSEMBLY
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
326-72793 SEAL, CARRIER ASSEMBLY
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWSEAL, CARRIER ASSEMBLY
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
4608-7395A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
510-87374 SCREW, CONNECTINT RODSCREW, CONNECTINT ROD
-
631-8M0045032 BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
711-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
812-65967 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
929-31505 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
10719-7391T3 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
1140-21666 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
1239-21665A12 RING, PISTONRING, PISTON
