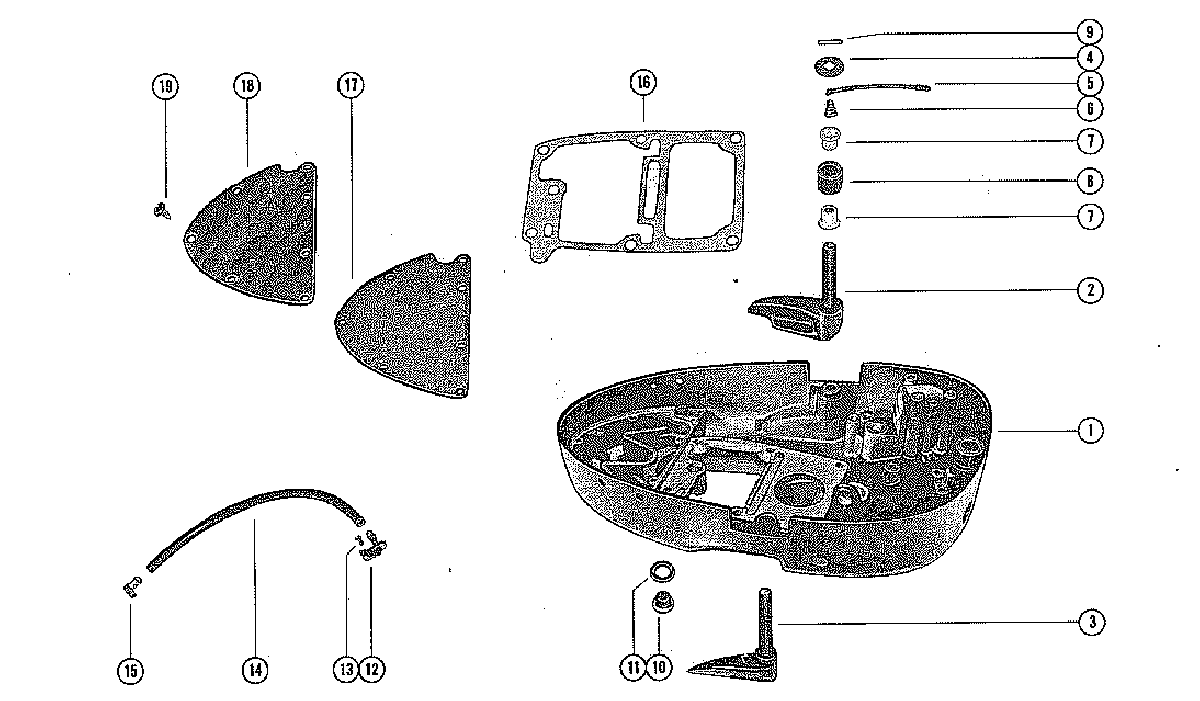

BOTTOM COWL ASSEMBLY для Mercury - 40 (1 CYL.) 3296137 THRU 4107219

  • №
    Артикул
    Название
  • 1
    187-4709 BOTTOM COWL
    UNITED STATES 3764824 AND BELOW
    AUSTRALIA 8014364 AND BELOW
    BELGIUM 9037733 AND BELOW
    CANADA 7025897 AND BELOW
    BOTTOM COWL
    UNITED STATES 3764824 AND BELOW
    AUSTRALIA 8014364 AND BELOW
    BELGIUM 9037733 AND BELOW
    CANADA 7025897 AND BELOW
  • 1
    187-7711A4 BOTTOM COWL
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    BOTTOM COWL
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
  • 2
    36187A1 LEVER ASSEMBLY, CLAMPING - PORT
    LEVER ASSEMBLY, CLAMPING - PORT
  • 3
    36188A1 LEVER ASSEMBLY, CLAMPING - STARBOARD
    LEVER ASSEMBLY, CLAMPING - STARBOARD
  • 4
    53-55891 FASTENER, CLAMPING LEVER
    FASTENER, CLAMPING LEVER
  • 5
    84-60871A7 GROUND STRAP ASSEMBLY
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
    GROUND STRAP ASSEMBLY
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
  • 6
    24-63399 SPRING, GROUND STRAP
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
    SPRING, GROUND STRAP
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
  • 7
    23-26819 BUSHING, NYLON - CLAMPING LEVER
    BUSHING, NYLON - CLAMPING LEVER
  • 8
    23-31293 BUSHING, RUBBER - CLAMPING LEVER
    BUSHING, RUBBER - CLAMPING LEVER
  • 9
    17-58997 PIN, ROLL - CLAMPING LEVER
    PIN, ROLL - CLAMPING LEVER
  • 10
    10-79953Q04 SCREW, BOTTOM COWL FLUSHING HOLE
    SCREW, BOTTOM COWL FLUSHING HOLE
  • 11
    12-191833 WASHER, BOTTOM COWL FLUSHING HOLE SCREW
    WASHER, BOTTOM COWL FLUSHING HOLE SCREW
  • 12
    56712 NOZZLE, TELL TALE
    NOZZLE, TELL TALE
  • 13
    10-35519 SCREW, TELL TALE NOZZLE TO BOTTOM COWL
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL
  • 14
    32-8M0108355 TUBE, TELL TALE (7 1/4")
    TUBE, TELL TALE (7 1/4")
  • 15
    22-996642 ELBOW, TELL TALE - HOSE TO CYLINDER BLOCK
    ELBOW, TELL TALE - HOSE TO CYLINDER BLOCK
  • 16
    27-89937 GASKET, POWERHEAD TO BOTTOM COWL
    GASKET, POWERHEAD TO BOTTOM COWL
  • 17
    27-55847 GASKET, EXHAUST RELEIF COVER TO BOTTOM COWL
    GASKET, EXHAUST RELEIF COVER TO BOTTOM COWL
  • 18
    55936 COVER, EXHAUST RELIEF
    COVER, EXHAUST RELIEF
  • 19
    10-69079 SCREW, EXHAUST RELEIF COVER TO BOTTOM COWL (7/16")
    SCREW, EXHAUST RELEIF COVER TO BOTTOM COWL (7/16")
