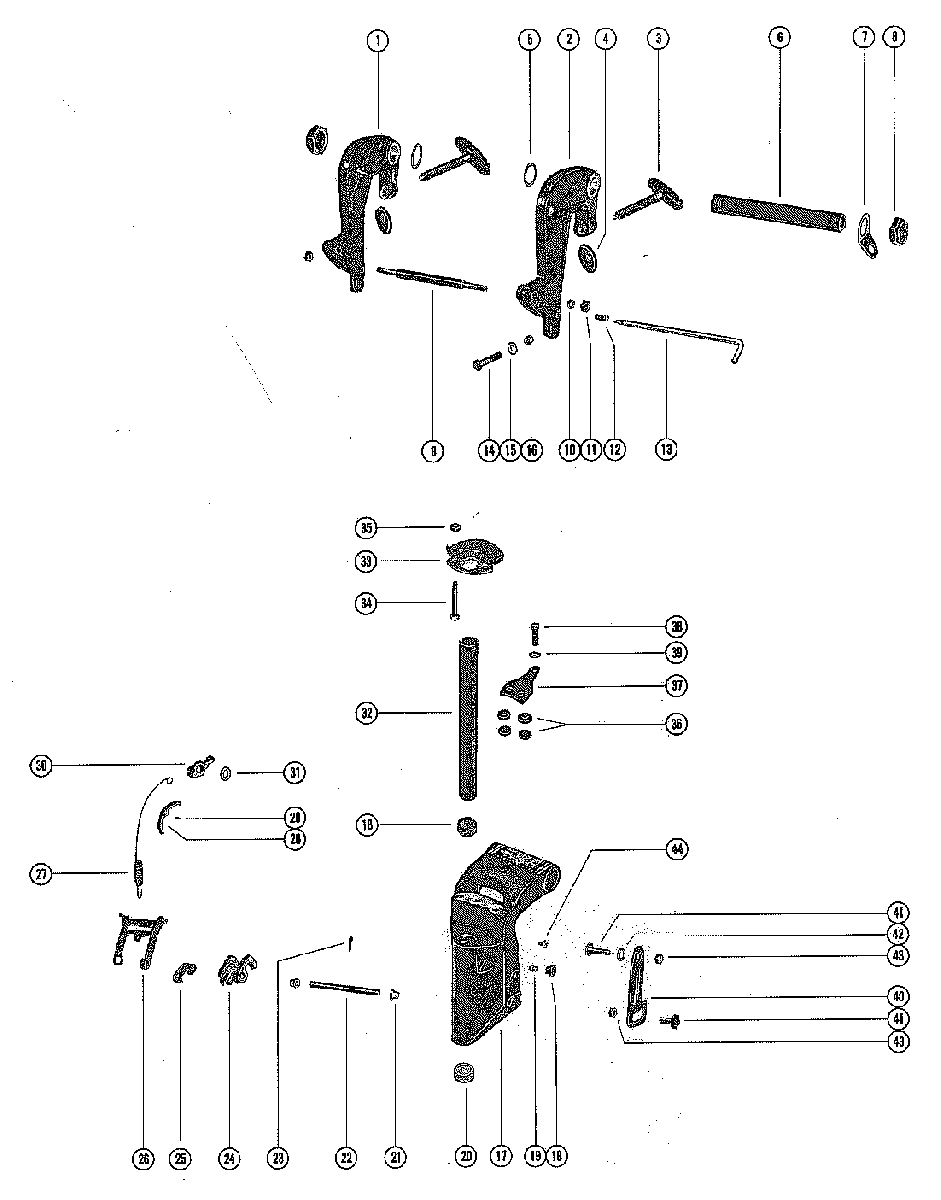

CLAMP AND SWIVEL BRACKET ASSEMBLY (SERIAL GROUP #2) для Mercury - 40 (1 CYL.) 3296137 THRU 4107219
-
№АртикулНазвание
-
11468-5570A3 CLAMP BRACKET ASSEMBLY (PORT)CLAMP BRACKET ASSEMBLY (PORT)
-
21467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)CLAMP BRACKET ASSEMBLY (STARBOARD)
-
359170A3 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
412-26227 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
512-52864 WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKETWASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET
-
645757 TILT TUBE, CLAMP TO SWIVEL BRACKETTILT TUBE, CLAMP TO SWIVEL BRACKET
-
754-8M0085928 CLIP, SAFETY CHAIN - TILT TUBECLIP, SAFETY CHAIN - TILT TUBE
-
811-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
916-59622 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1013-26992 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-29598 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1224-62143 SPRING, TILT LOCK PINSPRING, TILT LOCK PIN
-
1317-55952A1 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1410-67982 BOLT, CLAMP BRACKET TO BOATBOLT, CLAMP BRACKET TO BOAT
-
1512-67983 WASHER, CLAMP BRACKET SCREWWASHER, CLAMP BRACKET SCREW
-
1611-8267098 NUT, CLAMP BRACKET SCREWNUT, CLAMP BRACKET SCREW
-
171471-5822A1 SWIVEL BRACKET
UNITED STATES 3529446 AND UP
AUSTRALIA 8005740 AND UP
BELGIUM 9012109 AND UP
CANADA 7011058 AND UPSWIVEL BRACKET
UNITED STATES 3529446 AND UP
AUSTRALIA 8005740 AND UP
BELGIUM 9012109 AND UP
CANADA 7011058 AND UP -
171471-5822A1 SWIVEL BRACKET ASSEMBLY
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897SWIVEL BRACKET ASSEMBLY
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897 -
1819-77633Q LUBRICAP, GREASE FITTING - SWIVEL BRACKET
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897LUBRICAP, GREASE FITTING - SWIVEL BRACKET
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897 -
1922-74036 FITTING, GREASE - SWIVEL BRACKET
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897FITTING, GREASE - SWIVEL BRACKET
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897 -
2023-64028 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
2123-26841 BUSHING, NYLON - REVERSE LOCK LEVER RODBUSHING, NYLON - REVERSE LOCK LEVER ROD
-
2263551 ROD, REVERSE LOCK TO SWIVEL BRACKETROD, REVERSE LOCK TO SWIVEL BRACKET
-
2318-45882 COTTER PIN, RECERSE LOCK LEVER TO RODCOTTER PIN, RECERSE LOCK LEVER TO ROD
-
2463628T LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
2561007 RETAINER, ROD - REVERSE LOCKRETAINER, ROD - REVERSE LOCK
-
2663559T BRACKET, TROLLBRACKET, TROLL
-
2724-63630 SPRING, EXTENSION - TROLL BRACKETSPRING, EXTENSION - TROLL BRACKET
-
2863554 GUIDE, SPRINGGUIDE, SPRING
-
2917-25319 ROLL PIN, SPRING GUIDEROLL PIN, SPRING GUIDE
-
3079744 LEVER, CONTROL - TROLL BRACKETLEVER, CONTROL - TROLL BRACKET
-
3113-63631 WASHER, WAVE - TROLL BRACKET LEVERWASHER, WAVE - TROLL BRACKET LEVER
-
3266559 SWIVEL PIN, SWIVEL BRACKET TO SADDLE
UNITED STATES 3529446 AND UP
AUSTRALIA 8005740 AND UP
BELGIUM 9012109 AND UP
CANADA 7011058 AND UPSWIVEL PIN, SWIVEL BRACKET TO SADDLE
UNITED STATES 3529446 AND UP
AUSTRALIA 8005740 AND UP
BELGIUM 9012109 AND UP
CANADA 7011058 AND UP -
3266559 SWIVEL PIN, SWIVEL BRACKET TO SADDLE
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897SWIVEL PIN, SWIVEL BRACKET TO SADDLE
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897 -
3377334 CO-PILOT DISCCO-PILOT DISC
-
3410-30679 SCREW, CO-PILOT DISC TO SADDLE (2 1/4")SCREW, CO-PILOT DISC TO SADDLE (2 1/4")
-
3511-20184 NUT, CO-PILOT DISC FASTENING SCREWNUT, CO-PILOT DISC FASTENING SCREW
-
3620203 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKETDISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
-
3763647 PLATE, CLAMP - CO-PILOTPLATE, CLAMP - CO-PILOT
-
3810-62506 SCREW, CLAMP PLATE ADJUSTING (1 5/8")SCREW, CLAMP PLATE ADJUSTING (1 5/8")
-
3912-35462 WASHER, CLAMP PLATE ADKJUSTING SCREWWASHER, CLAMP PLATE ADKJUSTING SCREW
-
4063310A1 LEVER ASSEMBLY, TILT STOPLEVER ASSEMBLY, TILT STOP
-
4110-41433 SCREW, TILT STOP LEVERSCREW, TILT STOP LEVER
-
4213-31030 WASHER, WAVE - LEVER ANCHOR SCREWWASHER, WAVE - LEVER ANCHOR SCREW
-
4311-826709109 NUT, TILT STOP LEVER SCREWNUT, TILT STOP LEVER SCREW
-
4410-36398 SCREW, SWIVEL BRACKET (1/4")SCREW, SWIVEL BRACKET (1/4")
