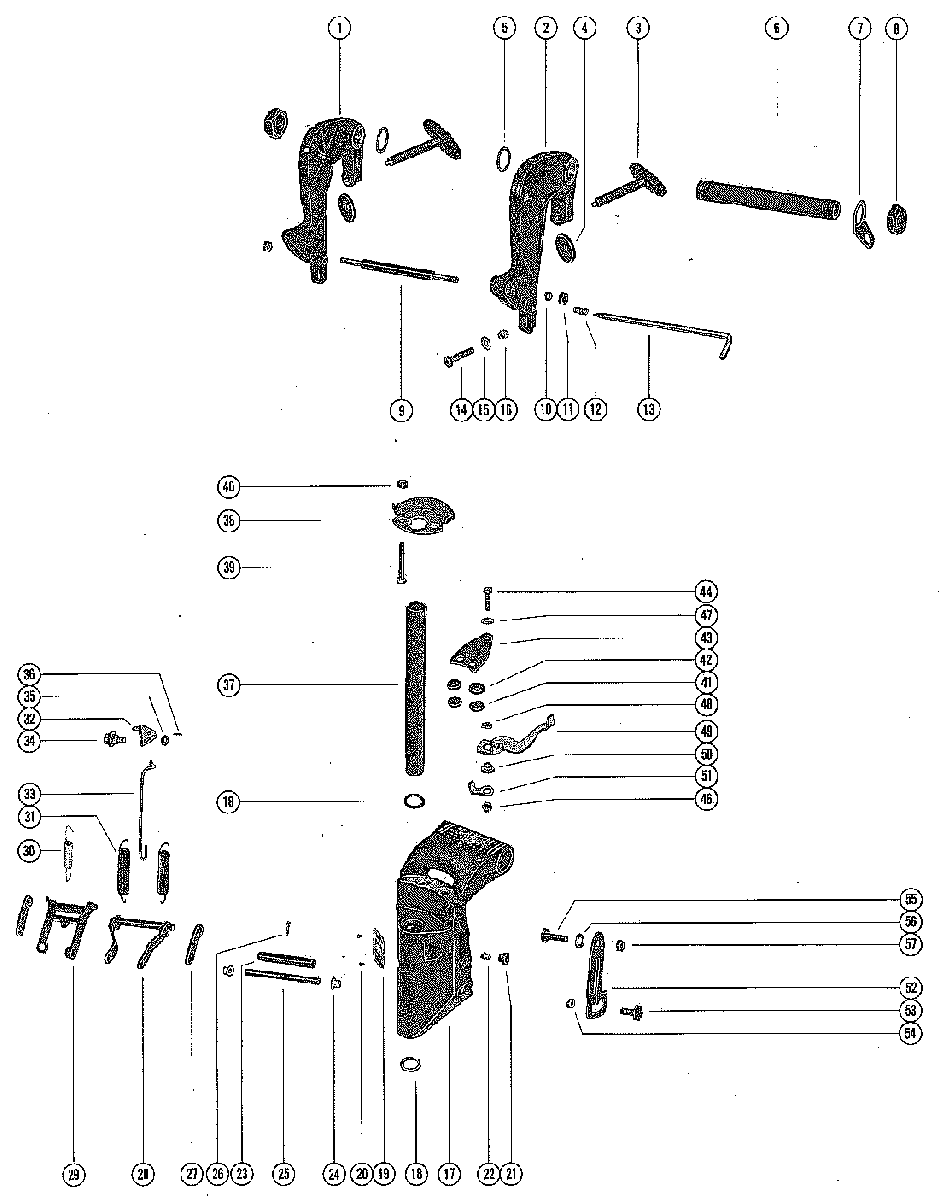

CLAMP AND SWIVEL BRACKET ASSEMBLY (SERIAL GROUP #1) для Mercury - 40 (1 CYL.) 3296137 THRU 4107219

  • №
    Артикул
    Название
  • 1
    1468-5570A3 CLAMP BRACKET ASSEMBLY (PORT)
    CLAMP BRACKET ASSEMBLY (PORT)
  • 2
    1467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)
    CLAMP BRACKET ASSEMBLY (STARBOARD)
  • 3
    59170A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 4
    12-26227 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 5
    12-52864 WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET
    WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET
  • 6
    45757 TITL TUBE, CLAMP TO SWIVEL BRACKET
    TITL TUBE, CLAMP TO SWIVEL BRACKET
  • 7
    54-8M0085928 CLIP, SAFETY CHAIN - TITE TUBE
    CLIP, SAFETY CHAIN - TITE TUBE
  • 8
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 9
    16-59622 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 10
    13-26992 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-29598 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    24-62143 SPRING, TILT LOCK PIN
    SPRING, TILT LOCK PIN
  • 13
    17-55952A1 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 14
    10-67982 BOLT, CLAMP BRACKET TO BOAT
    BOLT, CLAMP BRACKET TO BOAT
  • 15
    12-67983 WASHER, CLAMP BRACKET SCREW
    WASHER, CLAMP BRACKET SCREW
  • 16
    11-8267098 NUT, CLAMP BRACKET SCREW
    NUT, CLAMP BRACKET SCREW
  • 17
    1451-4675 SWIVEL BRACKET
    SWIVEL BRACKET
  • 18
    25-25439 "O" RING, SWIVEL BRACKET
    "O" RING, SWIVEL BRACKET
  • 19
    38-31042 SERIAL PLATE
    SERIAL PLATE
  • 20
    10-28642 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 21
    19-77633Q LUBRICAP, GREASE FITTING - SWIVEL BRACKET
    LUBRICAP, GREASE FITTING - SWIVEL BRACKET
  • 22
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 23
    23-30813 SPACER, TUBE - REVERSE LOCK ROD
    SPACER, TUBE - REVERSE LOCK ROD
  • 24
    23-26856 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
  • 25
    56663 ROD, REVERSE LOCK TO SWIVEL BRACKET
    ROD, REVERSE LOCK TO SWIVEL BRACKET
  • 26
    18-56206 COTTER PIN, RECERSE LOCK LEVER TO ROD
    COTTER PIN, RECERSE LOCK LEVER TO ROD
  • 27
    30815 LINK, REVERSE LOCK LEVER
    LINK, REVERSE LOCK LEVER
  • 28
    53267A1 REVERSE LOCK LEVER ASSEMBLY
    REVERSE LOCK LEVER ASSEMBLY
  • 29
    53435 BRACKET, STOP
    BRACKET, STOP
  • 30
    24-53456 SPRING, EXTENSION - STOP BRACKET
    SPRING, EXTENSION - STOP BRACKET
  • 31
    24-30886 SPRING, TENSION - REVERSE LOCK LEVER
    SPRING, TENSION - REVERSE LOCK LEVER
  • 32
    62257A2 LINK ASSEMBLY, REVERSE LEVER
    LINK ASSEMBLY, REVERSE LEVER
  • 33
    62256 ROD, LINK - REVERSE LOCK LEVER
    ROD, LINK - REVERSE LOCK LEVER
  • 34
    10-60355 SCREW, LINK TO SWIVEL BRACKET
    SCREW, LINK TO SWIVEL BRACKET
  • 35
    13-34632 WASHER, WAVE - LINK SCREW
    WASHER, WAVE - LINK SCREW
  • 36
    17-25905 ROLL PIN, RELEASE LINK
    ROLL PIN, RELEASE LINK
  • 37
    17-30688 SWIVEL PIN, SWIVEL BRACKET TO SADDLE
    SWIVEL PIN, SWIVEL BRACKET TO SADDLE
  • 38
    77334 CO-PILOT DISC
    CO-PILOT DISC
  • 39
    10-30679 SCREW, CO-PILOT DISC TO SADDLE
    SCREW, CO-PILOT DISC TO SADDLE
  • 40
    11-20184 NUT, CO-PILOT DISC FASTENING SCREW
    NUT, CO-PILOT DISC FASTENING SCREW
  • 41
    62342 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET (THIN)
    DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET (THIN)
  • 42
    20203 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET (THICK)
    DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET (THICK)
  • 43
    61296 PLATE, CLAMP - CO-PILOT
    PLATE, CLAMP - CO-PILOT
  • 44
    10-62506 SCREW, CLAMP PLATE ADJUSTING
    . FOR REPLACEMENT OF SCREW AND COTTER PIN USED ON EARLY MODELS IN THIS APPLICATION, ORDER C-10-62506 SCREW AND C-11-62505 NUT.
    SCREW, CLAMP PLATE ADJUSTING
    . FOR REPLACEMENT OF SCREW AND COTTER PIN USED ON EARLY MODELS IN THIS APPLICATION, ORDER C-10-62506 SCREW AND C-11-62505 NUT.
  • 45
    11-62505 NUT, CAMPL PLATE ADJUSTING SCREW
    . FOR REPLACEMENT OF SCREW AND COTTER PIN USED ON EARLY MODELS IN THIS APPLICATION, ORDER C-10-62506 SCREW AND C-11-62505 NUT.
    NUT, CAMPL PLATE ADJUSTING SCREW
    . FOR REPLACEMENT OF SCREW AND COTTER PIN USED ON EARLY MODELS IN THIS APPLICATION, ORDER C-10-62506 SCREW AND C-11-62505 NUT.
  • 47
    12-35462 WSHER, CLAMP PLATE ADJJUSTING SCREW
    WSHER, CLAMP PLATE ADJJUSTING SCREW
  • 48
    13-48239 WASHER, WAVE - CLAMP PLATE ADJUSTING SCREW
    WASHER, WAVE - CLAMP PLATE ADJUSTING SCREW
  • 49
    62024T LEVER, CONTROL - REVERSE LOCK
    LEVER, CONTROL - REVERSE LOCK
  • 50
    23-59573 SPACER, CLAMP PLATE ADJUSTING SCREW
    SPACER, CLAMP PLATE ADJUSTING SCREW
  • 51
    61602 PLATE, LOCKING - CLAMP PLATE ADJUSTING SCREW
    PLATE, LOCKING - CLAMP PLATE ADJUSTING SCREW
  • 52
    63310A1 LEVER, TITLE STOP
    LEVER, TITLE STOP
  • 53
    10-29237 SCREW, RETAINING - TILT STOP LEVER
    SCREW, RETAINING - TILT STOP LEVER
  • 54
    11-20184 NUT, TILT STOP LEVER RETAINING SCREW
    NUT, TILT STOP LEVER RETAINING SCREW
  • 55
    10-27791 SCREW, ANCHOR - TILT STOP LEVER
    SCREW, ANCHOR - TILT STOP LEVER
  • 56
    13-20846 WASHER, WAVE - LEVER ANCHOR SCREW
    WASHER, WAVE - LEVER ANCHOR SCREW
  • 57
    11-20184 NUT, TILT STOP LEVER ANCHOR SCREW
    NUT, TILT STOP LEVER ANCHOR SCREW
