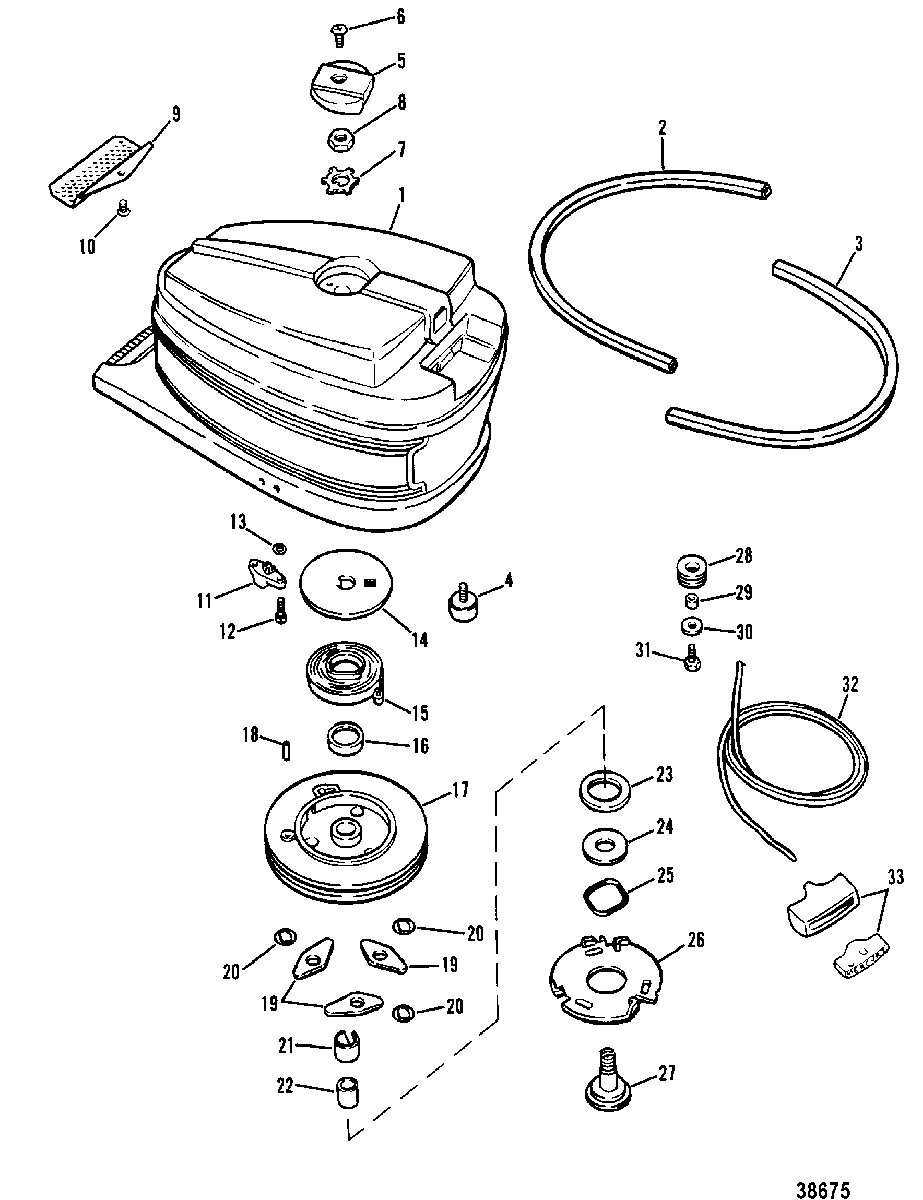

TOP COWL AND STARTER ASSEMBLY для Mercury - 4 (1 CYL. PRODUCT OF USA) 5595532 & Up
-
№АртикулНазвание
-
1191-7668A2 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
239538 STRIP, SOUND SEAL-REARSTRIP, SOUND SEAL-REAR
-
339537 STRIP, SOUND SEAL-FORWARDSTRIP, SOUND SEAL-FORWARD
-
466018 MOUNT, RUBBER-TOP COWLMOUNT, RUBBER-TOP COWL
-
589096 TRIM COVER, TOP COWLTRIM COVER, TOP COWL
-
610-64652 SCREW, TRIM COVER TO TOP COWLSCREW, TRIM COVER TO TOP COWL
-
714-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
811-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
964601 COVER, VENT-TOP COWLCOVER, VENT-TOP COWL
-
1010-35519 SCREW, (#10-16 x .500), VENT SCREEN TO TOP COWLSCREW, (#10-16 x .500), VENT SCREEN TO TOP COWL
-
1139257 BRACKET, TOP COWL FASTENING
(PORT)BRACKET, TOP COWL FASTENING
(PORT) -
1139258 BRACKET, TOP COWL FASTENING
(STARBOARD)BRACKET, TOP COWL FASTENING
(STARBOARD) -
1210-39514 SCREW, BRACKET TO TOP COWL (1-1/8")SCREW, BRACKET TO TOP COWL (1-1/8")
-
1312-39143 WASHER, (.253 x .625 x .0937), BRACKET SCREWWASHER, (.253 x .625 x .0937), BRACKET SCREW
-
1420155 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
1524-29340T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
1623-28912 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
1750-93696A2 SHEAVE ASSEMBLY, StarterSHEAVE ASSEMBLY, Starter
-
1817-22896 PIN, RETAINER, STARTER CABLEPIN, RETAINER, STARTER CABLE
-
1930596 PAWL, STARTERPAWL, STARTER
-
2013-36206 WAVE WASHER, STARTER PAWLWAVE WASHER, STARTER PAWL
-
2123-28919 BUSHING, NYLON-SHEAVE SHAFT SPACERBUSHING, NYLON-SHEAVE SHAFT SPACER
-
2223-61005 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
2326179 RETAINER, SHEAVE SHAFT TO STARTER SHEAVERETAINER, SHEAVE SHAFT TO STARTER SHEAVE
-
2412-35559 WASHER, SHEAVE SHAFT RETAINERWASHER, SHEAVE SHAFT RETAINER
-
2513-20160 WAVE WASHER, RETAINER TENSIONWAVE WASHER, RETAINER TENSION
-
2630595 PLATE, RETAINER-STARTER PAWLPLATE, RETAINER-STARTER PAWL
-
2735558 SHAFT, SheaveSHAFT, Sheave
-
2893695 PULLEY, STARTER CABLEPULLEY, STARTER CABLE
-
2923-309772 SPACER, CALBE PULLEYSPACER, CALBE PULLEY
-
3012-22887 WASHER, PULLEY FASTENING SCREWWASHER, PULLEY FASTENING SCREW
-
3110-28789 SCREW, (.190-24 x .750), PULLEY TO TOP COWLSCREW, (.190-24 x .750), PULLEY TO TOP COWL
-
3250-12066Q10 ROPEROPE
-
3379470A1 RETAINER KIT, RopeRETAINER KIT, Rope
