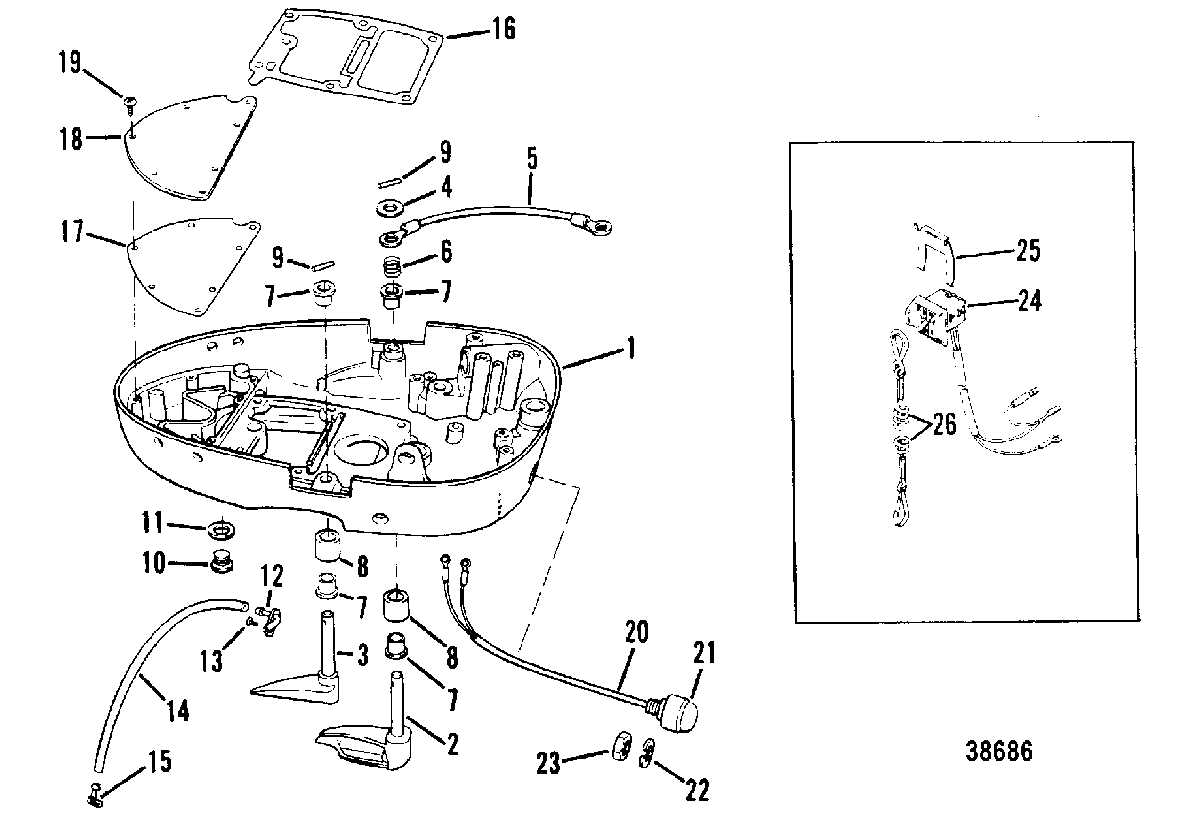

BOTTOM COWL ASSEMBLY для Mercury - 4 (1 CYL. PRODUCT OF USA) 5595532 & Up

  • №
    Артикул
    Название
  • 1
    187-7711A4 BOTTOM COWL
    BOTTOM COWL
  • 2
    36187A1 LEVER ASSEMBLY, CLAMPING - PORT
    LEVER ASSEMBLY, CLAMPING - PORT
  • 3
    36188A1 LEVER ASSEMBLY, CLAMPING - STARBOARD
    LEVER ASSEMBLY, CLAMPING - STARBOARD
  • 4
    53-55891 FASTENER, CLAMPING LEVER
    FASTENER, CLAMPING LEVER
  • 5
    84-60871A7 STRAP ASSEMBLY, Ground
    STRAP ASSEMBLY, Ground
  • 6
    24-63399 SPRING, GROUNG STRAP
    SPRING, GROUNG STRAP
  • 7
    23-26819 BUSHING, NYLON - CLAMPING LEVER
    BUSHING, NYLON - CLAMPING LEVER
  • 8
    23-31293 BUSHING, RUBBER - CLAMPING LEVER
    BUSHING, RUBBER - CLAMPING LEVER
  • 9
    17-58997 PIN, Roll (.164 x .750), CLAMPING LEVER
    PIN, Roll (.164 x .750), CLAMPING LEVER
  • 10
    10-79953Q04 SCREW, (.375-16 x .250), BOTTOM COWL FLUSHING HOLE
    SCREW, (.375-16 x .250), BOTTOM COWL FLUSHING HOLE
  • 11
    12-191833 WASHER, BOTTOM COWL FLUSHING HOLE SCREW
    WASHER, BOTTOM COWL FLUSHING HOLE SCREW
  • 12
    56712 NOZZLE, TELL TALE
    NOZZLE, TELL TALE
  • 13
    10-35519 SCREW, (#10-16 x .500), TELL TALE NOZZLE TO BOTTOM COWL
    SCREW, (#10-16 x .500), TELL TALE NOZZLE TO BOTTOM COWL
  • 14
    32-8M0108355 HOSE, TELL TALE (7-1/4")
    HOSE, TELL TALE (7-1/4")
  • 15
    22-996642 ELBOW, TELL TALE - HOSE TO CYLINDER BLOCK
    ELBOW, TELL TALE - HOSE TO CYLINDER BLOCK
  • 16
    27-89937 GASKET
    GASKET
  • 17
    27-55847 GASKET
    GASKET
  • 18
    55936 COVER, EXHAUST RELIEF
    COVER, EXHAUST RELIEF
  • 19
    10-69079 SCREW, (#10-16 x .440)
    SCREW, (#10-16 x .440)
  • 20
    87-69508A31 SWITCH ASSEMBLY, Stop
    PUSH BUTTON SWITCH
    SWITCH ASSEMBLY, Stop
    PUSH BUTTON SWITCH
  • 21
    87-99525A1 COVER ASSEMBLY
    PUSH BUTTON SWITCH
    COVER ASSEMBLY
    PUSH BUTTON SWITCH
  • 22
    13-69845 LOCKWASHER
    PUSH BUTTON SWITCH
    LOCKWASHER
    PUSH BUTTON SWITCH
  • 23
    11-69844 NUT, STOP SWITCH
    PUSH BUTTON SWITCH
    NUT, STOP SWITCH
    PUSH BUTTON SWITCH
  • 24
    87-11083A9 SWITCH ASSEMBLY, Stop
    TOGGLE SWITCH
    SWITCH ASSEMBLY, Stop
    TOGGLE SWITCH
  • 25
    8M0032846 RETANER
    TOGGLE SWITCH
    RETANER
    TOGGLE SWITCH
  • 26
    8M0092850 LANYARD ASSEMBLY
    TOGGLE SWITCH
    LANYARD ASSEMBLY
    TOGGLE SWITCH
  • -
    27-78139A80 GASKET SET
    GASKET SET
