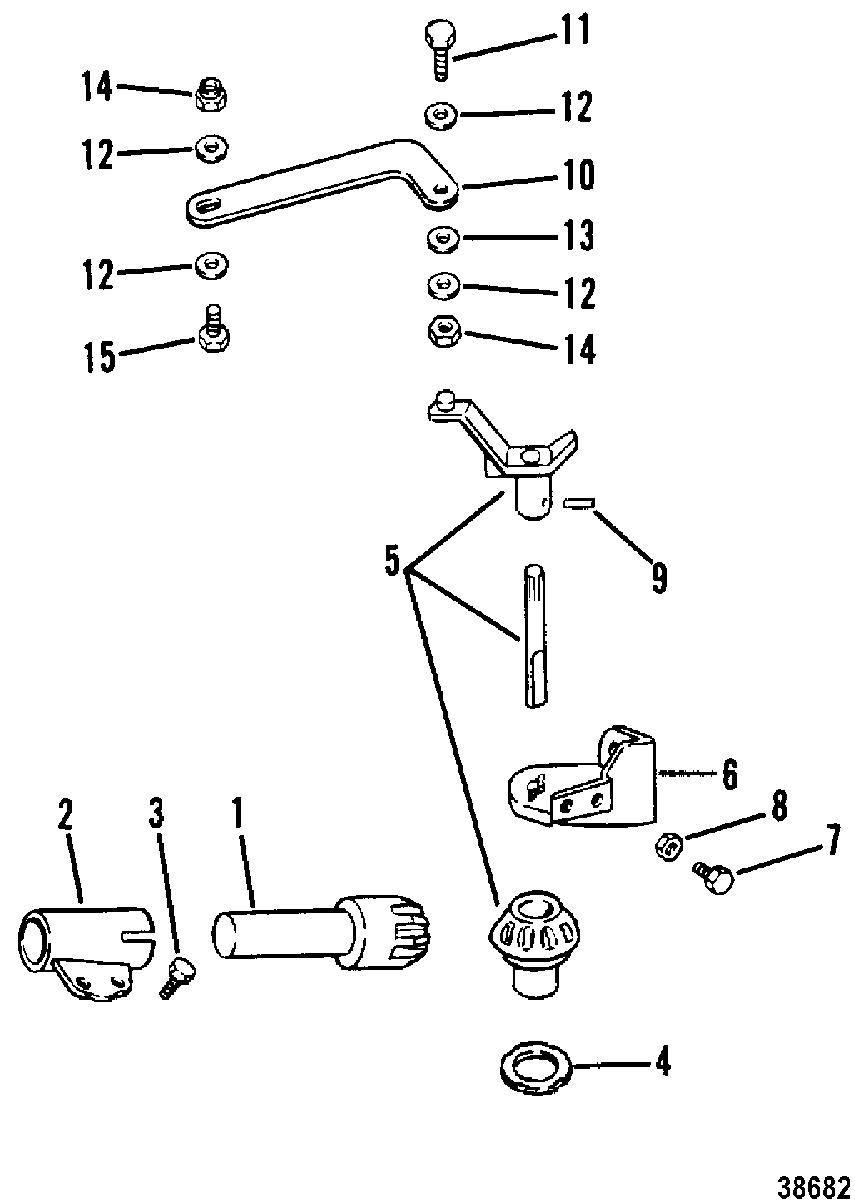

THROTTLE CONTROL LINKAGE для Mercury - 4 (1 CYL. PRODUCT OF USA) 5595532 & Up

  • №
    Артикул
    Название
  • 1
    43-60856 GEAR, THROTTLE CONTROL
    GEAR, THROTTLE CONTROL
  • 2
    60885T HOUSING, HORIZONTAL GEAR
    HOUSING, HORIZONTAL GEAR
  • 3
    10-96138 SCREW, (1/4-28 x 5/8)
    SCREW, (1/4-28 x 5/8)
  • 4
    15-64653A1 SHIM ASSEMBLY, PINION GEAR TO BOTTOM COWL
    SHIM ASSEMBLY, PINION GEAR TO BOTTOM COWL
  • 5
    42666A3 GEAR AND SHAFT ASSEMBLY
    GEAR AND SHAFT ASSEMBLY
  • 6
    62099T BRACKET, THROTTLE CONTROL LEVER
    BRACKET, THROTTLE CONTROL LEVER
  • 7
    10-23015 SCREW, (.190-32 x 1.00), ADJUSTING - THROTTLE
    SCREW, (.190-32 x 1.00), ADJUSTING - THROTTLE
  • 8
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 9
    17-69745 PIN, Roll, LEVER TO VERTICAL SHAFT
    PIN, Roll, LEVER TO VERTICAL SHAFT
  • 10
    60920 LINK, THROTTLE LEVER TO STATOR PLATE
    LINK, THROTTLE LEVER TO STATOR PLATE
  • 11
    10-34696 SCREW, (#8-32 x .750)
    SCREW, (#8-32 x .750)
  • 12
    12-34392 WASHER
    WASHER
  • 13
    13-29720 WAVE WASHER
    WAVE WASHER
  • 14
    11-28656 NUT
    NUT
  • 15
    10-56027 SCREW
    SCREW
