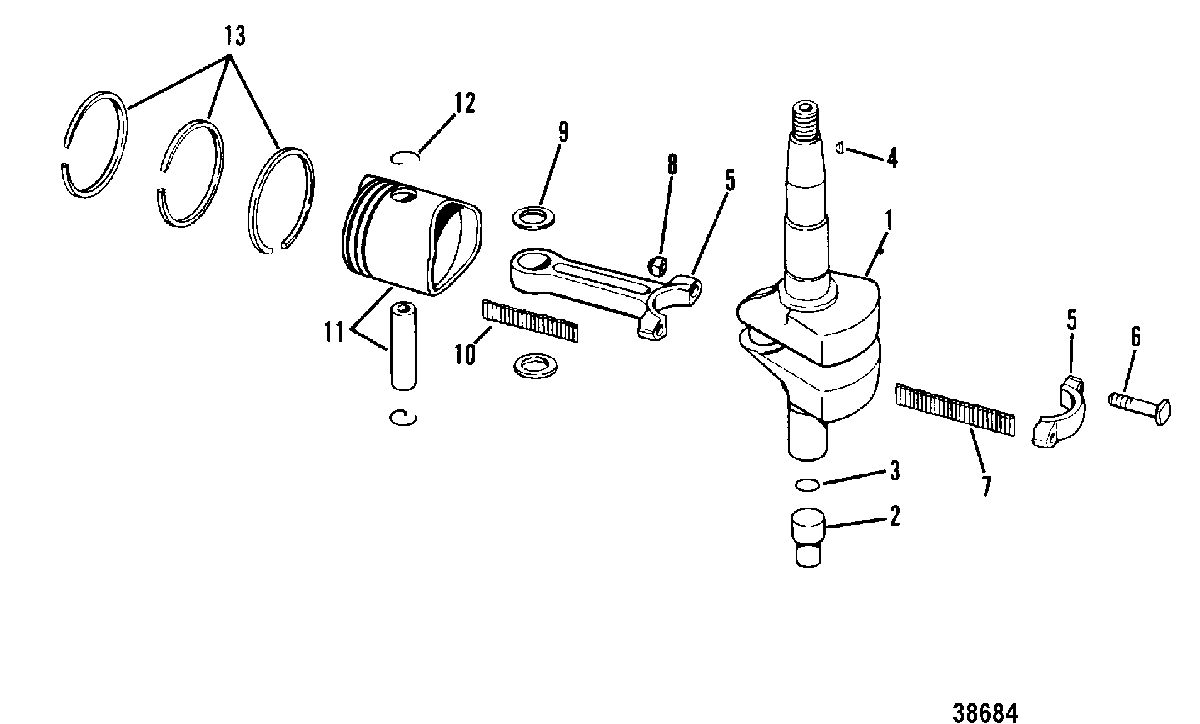

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 4 (1 CYL. PRODUCT OF USA) 5595532 & Up
-
№АртикулНазвание
-
1427-7334A2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
279952A1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
325-62704 O-RING, (.362 x .103)O-RING, (.362 x .103)
-
428-20094 KEY, Woodruff, CRANKSHAFTKEY, Woodruff, CRANKSHAFT
-
5608-7395A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
610-87374 SCREW, (.250-28 x 1.030), CONNECTING RODSCREW, (.250-28 x 1.030), CONNECTING ROD
-
731-8M0045032 BEARING, Needle, CRANKPINBEARING, Needle, CRANKPIN
-
811-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
912-65967 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
1029-31505 BEARING, Needle, PISTON PINBEARING, Needle, PISTON PIN
-
11719-7391T3 PISTON ASSEMBLYPISTON ASSEMBLY
-
1240-21666 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
1339-21665A12 RING SET, PistonRING SET, Piston
-
-27-78139A80 GASKET SETGASKET SET
