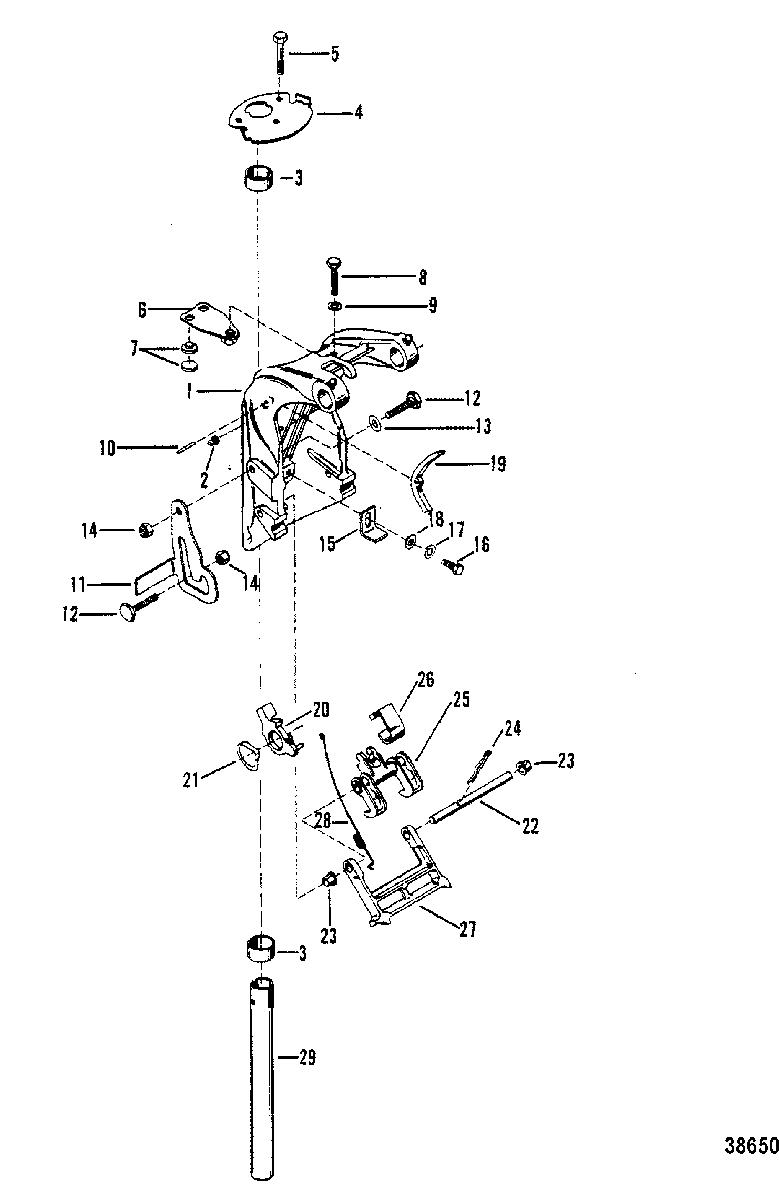

SWIVEL BRACKET ASSEMBLY для Mercury - 4 (1 CYL. PRODUCT OF USA) 5595532 & Up

  • №
    Артикул
    Название
  • 1
    1471-7324A1 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 2
    22-74036 FITTING, Grease, SWIVEL BRACKET
    FITTING, Grease, SWIVEL BRACKET
  • 3
    23-64028 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 4
    77334 PLATE, CO-PILOT
    PLATE, CO-PILOT
  • 5
    10-78038 SCREW, (.250-20 x 1.75), CO-PILOT DISC TO SADDLE
    SCREW, (.250-20 x 1.75), CO-PILOT DISC TO SADDLE
  • 6
    72845A1 PLATE ASSEMBLY, CLAMP - CO-PILOT
    PLATE ASSEMBLY, CLAMP - CO-PILOT
  • 7
    20203 DISC, FRICTION
    DISC, FRICTION
  • 8
    10-36154 SCREW, (.250-28 x 1.380), CLAMP PLATE ADJUSTING
    SCREW, (.250-28 x 1.380), CLAMP PLATE ADJUSTING
  • 9
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 10
    17-25319 PIN, (.125 x 0.75 Inches), SPRING GUIDE
    PIN, (.125 x 0.75 Inches), SPRING GUIDE
  • 11
    879841 LEVER ASSEMBLY, TILT STOP
    (SAILPOWER)
    LEVER ASSEMBLY, TILT STOP
    (SAILPOWER)
  • 11
    87984A1 LEVER ASSEMBLY, TILT STOP
    LEVER ASSEMBLY, TILT STOP
  • 12
    10-41433 SCREW, (.250-28 x 1.00), TILT STOP LEVER
    SCREW, (.250-28 x 1.00), TILT STOP LEVER
  • 13
    13-31030 WAVE WASHER, LEVER ANCHOR SCREW
    WAVE WASHER, LEVER ANCHOR SCREW
  • 14
    11-35888 NUT, (.250-28) Stainless Steel, TILT STOP LEVER SCREW
    NUT, (.250-28) Stainless Steel, TILT STOP LEVER SCREW
  • 15
    72794 STOP, REVERSE LOCK
    STOP, REVERSE LOCK
  • 16
    10-71056 SCREW, (.250-28 x .560), REVERSE STOP TO SWIVEL BRACKET
    SCREW, (.250-28 x .560), REVERSE STOP TO SWIVEL BRACKET
  • 17
    13-26992 LOCKWASHER, (.250) Stainless Steel, REVERSE STOP SCREW
    LOCKWASHER, (.250) Stainless Steel, REVERSE STOP SCREW
  • 18
    12-71055 WASHER, REVERSE STOP SCREW
    WASHER, REVERSE STOP SCREW
  • 19
    63554 GUIDE, SPRING
    GUIDE, SPRING
  • 20
    79744 LEVER, CONTROL - TROLL BRACKET
    LEVER, CONTROL - TROLL BRACKET
  • 21
    13-63631 WAVE WASHER, TROLL BRACKET LEVER
    WAVE WASHER, TROLL BRACKET LEVER
  • 22
    71419 ROD, REVERSE LOCK TO SWITCH BRACKET
    ROD, REVERSE LOCK TO SWITCH BRACKET
  • 23
    23-26841 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
  • 24
    18-45882 COTTER PIN, REVERSE LOCK LEVER TO ROD
    COTTER PIN, REVERSE LOCK LEVER TO ROD
  • 25
    63628T LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
  • 26
    61007 RETAINER, ROD - REVERSE LOCK
    RETAINER, ROD - REVERSE LOCK
  • 27
    63559T BRACKET, TROLL
    BRACKET, TROLL
  • 28
    24-63630 SPRING, EXTENSION - TROLL BRACKET
    SPRING, EXTENSION - TROLL BRACKET
  • 29
    66559 TUBE, SWIVEL BRACKET TO SADDLE
    TUBE, SWIVEL BRACKET TO SADDLE
