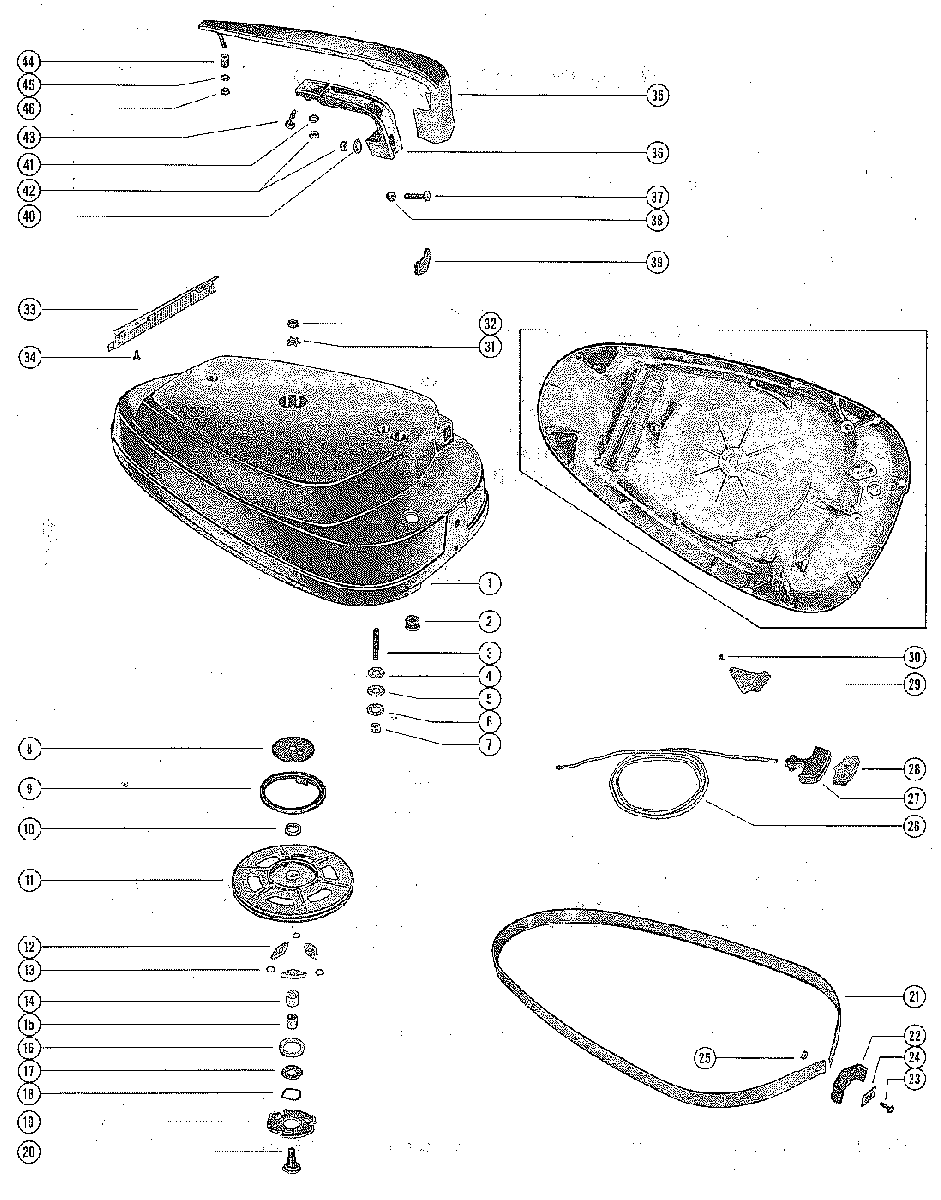

TOP COWL AND STARTER ASSEMBLY для Mercury - 350 1812754 THRU 1960826

  • №
    Артикул
    Название
  • 1
    2100-2172A2 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    25-20116 GROMMET, CHOCK KNOB
    GROMMET, CHOCK KNOB
  • 3
    16-20353 STUD, FRONT AND REAR - TOP COWL TO CYLINDER BLOCK
    STUD, FRONT AND REAR - TOP COWL TO CYLINDER BLOCK
  • 4
    12-20028 WASHER, TOP COWL STUD (1/16")
    WASHER, TOP COWL STUD (1/16")
  • 5
    12-69057 WASHER, TOP COWL STUD (3/4"OD)
    WASHER, TOP COWL STUD (3/4"OD)
  • 6
    12-20583 WASHER, TOP COWL STUD (1/32")
    WASHER, TOP COWL STUD (1/32")
  • 7
    11-8267089 NUT, TOP COWL FASTENING STUD
    NUT, TOP COWL FASTENING STUD
  • 8
    20155 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
  • 9
    24-29340T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 10
    23-28912 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 11
    50-30994 SHEAVE ASSEMBLY
    SHEAVE ASSEMBLY
  • 12
    30596 PAWL, STARTER
    PAWL, STARTER
  • 13
    13-36206 WASHER, WAVE - STARTER PAWL
    WASHER, WAVE - STARTER PAWL
  • 14
    23-28919 BUSHING, NYLON - SHEAVE SHAFT SPACER
    BUSHING, NYLON - SHEAVE SHAFT SPACER
  • 15
    45477A1 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 16
    26179 RETAINER, WAVE WASHER
    RETAINER, WAVE WASHER
  • 17
    12-26180 WASHER, WAVE WASHER RETAINER
    WASHER, WAVE WASHER RETAINER
  • 18
    13-20160 WASHER, WAVE - RETAINER TENSION
    WASHER, WAVE - RETAINER TENSION
  • 19
    30595 PLATE, RETAINER - STARTER PAWL
    PLATE, RETAINER - STARTER PAWL
  • 20
    45477A1 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 21
    34735A1 TRIM MOLDING ASSEMBLY, TOP COWL
    TRIM MOLDING ASSEMBLY, TOP COWL
  • 22
    34433 BRACKET, TRIM MOULDING TENSION
    BRACKET, TRIM MOULDING TENSION
  • 23
    10-37892 SCREW, BRACKET AND MOULDING TO TOP COWL
    SCREW, BRACKET AND MOULDING TO TOP COWL
  • 24
    12-34434 WASHER, BRACKET AND MOULDING TO TOP COWL SCREW
    WASHER, BRACKET AND MOULDING TO TOP COWL SCREW
  • 25
    11-20110 NUT , BRACKET AND MOULDING TO TOP COWL SCREW
    NUT , BRACKET AND MOULDING TO TOP COWL SCREW
  • 26
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
  • 27
    28747 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
  • 28
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
  • 29
    30045 PLATE, ROPE GUIDE
    PLATE, ROPE GUIDE
  • 30
    10-28642 SCREW, DRIVER - ROPE GUIDE PLATE TO TOP COWL
    SCREW, DRIVER - ROPE GUIDE PLATE TO TOP COWL
  • 31
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 32
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 33
    33952 SCREEN, VENT - TOP COWL
    SCREEN, VENT - TOP COWL
  • 34
    10-35193 SCREW, VENT SCREEN TO TOP COWL
    SCREW, VENT SCREEN TO TOP COWL
  • 35
    31875 HANDLE, CHROME - TO COWL
    HANDLE, CHROME - TO COWL
  • 36
    31003 HANDLE, INSIDE - TOP COWL
    HANDLE, INSIDE - TOP COWL
  • 37
    10-56500 SCREW, FRONT - HANDLE TO TOP COWL (1 1/4")
    SCREW, FRONT - HANDLE TO TOP COWL (1 1/4")
  • 38
    11-8267089 NUT, FRONT HANDLE FASTENING SCREW
    NUT, FRONT HANDLE FASTENING SCREW
  • 39
    35496 PAD, BUMPER - TOP COWL HANDLE
    PAD, BUMPER - TOP COWL HANDLE
  • 40
    12-69057 WASHER, LOWER HANDLE STUD (3/4"OD)
    WASHER, LOWER HANDLE STUD (3/4"OD)
  • 41
    12-29245 WASHER, CENTER HANDLE STUD (1/2"OD)
    WASHER, CENTER HANDLE STUD (1/2"OD)
  • 42
    11-21825 NUT, INSIDE HANDLE TO CHROME HANDLE STUDS
    NUT, INSIDE HANDLE TO CHROME HANDLE STUDS
  • 43
    10-29199 SCREW, CENTER - HANDLE TO TOP COWL (1")
    SCREW, CENTER - HANDLE TO TOP COWL (1")
  • 44
    23-29561 BUSHING, REAR HANDLE STUD
    BUSHING, REAR HANDLE STUD
  • 45
    13-26992 LOCKWASHER, REAR HANDLE STUD
    LOCKWASHER, REAR HANDLE STUD
  • 46
    11-21825 NUT, REAR HANDLE STUD
    NUT, REAR HANDLE STUD
