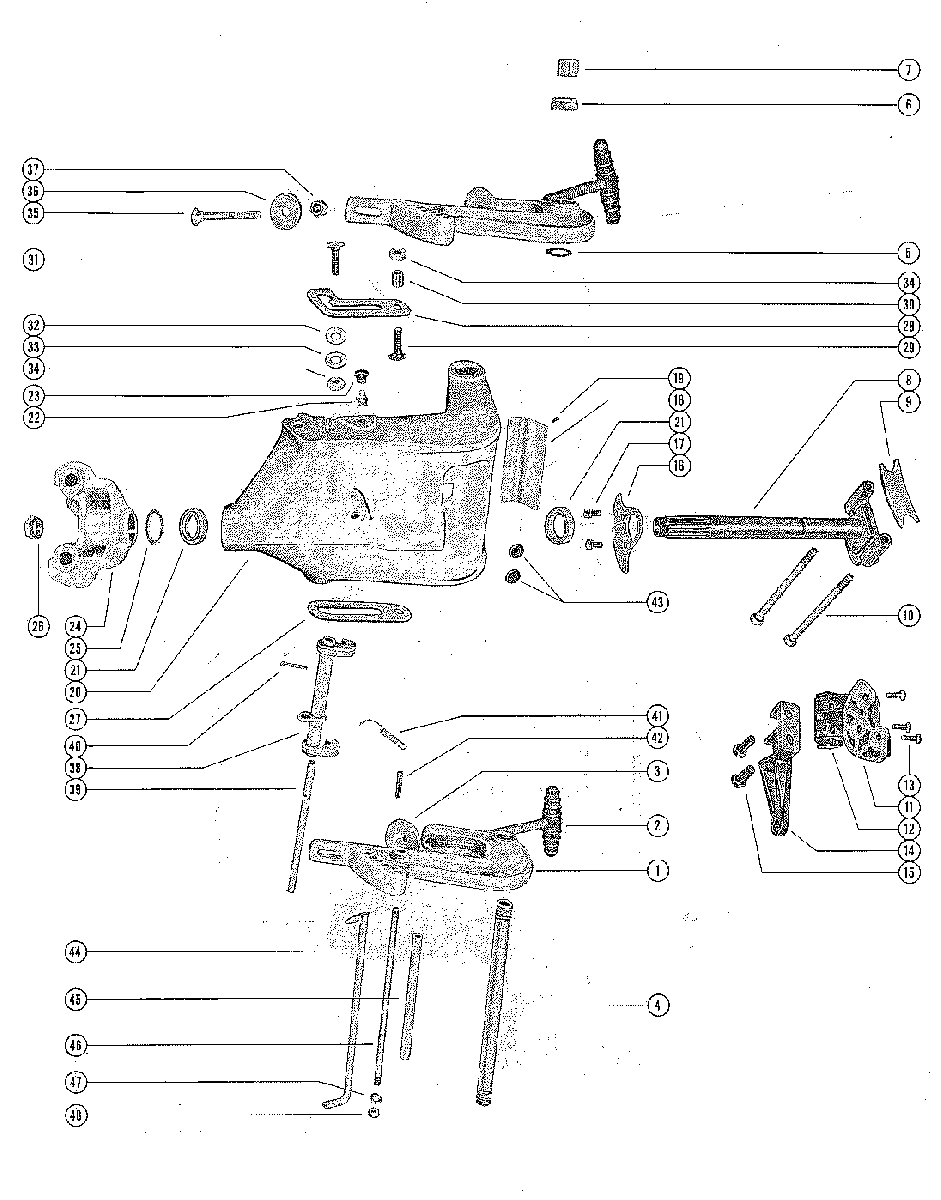

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 350 1812754 THRU 1960826
-
№АртикулНазвание
-
11427-1810A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
222477A4 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
312-26227 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
48M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 SHIM, CLAMP BRACKET TO SWIVEL BRACKET (.010)SHIM, CLAMP BRACKET TO SWIVEL BRACKET (.010)
-
611-858869 NUT, TILT TUBENUT, TILT TUBE
-
753078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
817-33985A1 SWIVEL PIN AND TOP YOKE ASSEMBLYSWIVEL PIN AND TOP YOKE ASSEMBLY
-
930711 BUMPER, TOP YOKEBUMPER, TOP YOKE
-
1010-33986 SCREW, UPPER MOUNT TO SWIVEL PINSCREW, UPPER MOUNT TO SWIVEL PIN
-
1133840 BRACKET, STEERING ARM - SWIVEL PINBRACKET, STEERING ARM - SWIVEL PIN
-
1262297 BUMPER, STEERING ARM BRACKETBUMPER, STEERING ARM BRACKET
-
1310-69028 SCREW, STEERING ARM BRACKET TO SWIVEL PINSCREW, STEERING ARM BRACKET TO SWIVEL PIN
-
1433963 BRACKET, REMOTE STEERINGBRACKET, REMOTE STEERING
-
1510-37612 SCREW, REMOTE BRACKET TO ARM BRACKET (1 1/4")SCREW, REMOTE BRACKET TO ARM BRACKET (1 1/4")
-
1633969 PLATE, FRICTION - CO-PILOT (SWIVEL BRACKET)PLATE, FRICTION - CO-PILOT (SWIVEL BRACKET)
-
1710-69069 SCREW, FRICTION PLATE TO SWIVEL PINSCREW, FRICTION PLATE TO SWIVEL PIN
-
1838-56267 SERIAL PLATESERIAL PLATE
-
1910-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKETSCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
-
201455-2693A3 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
2126-32911 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
2222-69059 FITTING, PREASE - SWIVEL BRACKETFITTING, PREASE - SWIVEL BRACKET
-
2319-77633Q LUBRICAP, SWIVEL BRACKET REASE FITTINGLUBRICAP, SWIVEL BRACKET REASE FITTING
-
2477416T1 YOKE, BOTTOMYOKE, BOTTOM
-
2512-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
-
2512-26837 WASHER, SWIVEL PIN TO BOTTOM YORK (.065)WASHER, SWIVEL PIN TO BOTTOM YORK (.065)
-
2611-71956 NUT, RETAINING - SWIVEL PINNUT, RETAINING - SWIVEL PIN
-
2720215 LEVER, TILT STOP - STARBOARD SIDELEVER, TILT STOP - STARBOARD SIDE
-
2826864 LEVER, TILT STOP - PORT SIDELEVER, TILT STOP - PORT SIDE
-
2910-20217 SCREW, ANCHOR - TILT STOP LEVERSCREW, ANCHOR - TILT STOP LEVER
-
3023-20216 SPACER, TILT STOP LEVERSPACER, TILT STOP LEVER
-
3110-29237 SCREW, RETAINING - TILT STOP LEVERSCREW, RETAINING - TILT STOP LEVER
-
3215-37711 SHIM, RETAINING SCREW - PORT SIDESHIM, RETAINING SCREW - PORT SIDE
-
3313-36076 WASHER, WAVE _ RETAINING SCREW - PORT SIDEWASHER, WAVE _ RETAINING SCREW - PORT SIDE
-
3313-20846 WASHER, WAVE - RETAINING SCREW - STARBOARD SIDEWASHER, WAVE - RETAINING SCREW - STARBOARD SIDE
-
3411-24652 NUT, ANCHOR AND RETAINING SCREWNUT, ANCHOR AND RETAINING SCREW
-
3510-26483 BOLT, CLAMP BRACKET TO BOAT TRANSOMBOLT, CLAMP BRACKET TO BOAT TRANSOM
-
3612-67981 WASHER, CLUMP BRACKET BOLTWASHER, CLUMP BRACKET BOLT
-
3711-26484 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
3826903A2 REVERSE LOCK ASSEMBLYREVERSE LOCK ASSEMBLY
-
3956349 SHAFT, REVERSE LOCK TO SWIVEL BRACKETSHAFT, REVERSE LOCK TO SWIVEL BRACKET
-
4018-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
4124-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
4217-25598 ROLL PIN, REVERSE LOCK SPRING ATTACHINGROLL PIN, REVERSE LOCK SPRING ATTACHING
-
4323026 DISC, FRICTION _ SWIVEL BRACKETDISC, FRICTION _ SWIVEL BRACKET
-
4417-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
4523-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
4616-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
4713-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
4811-22053 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
