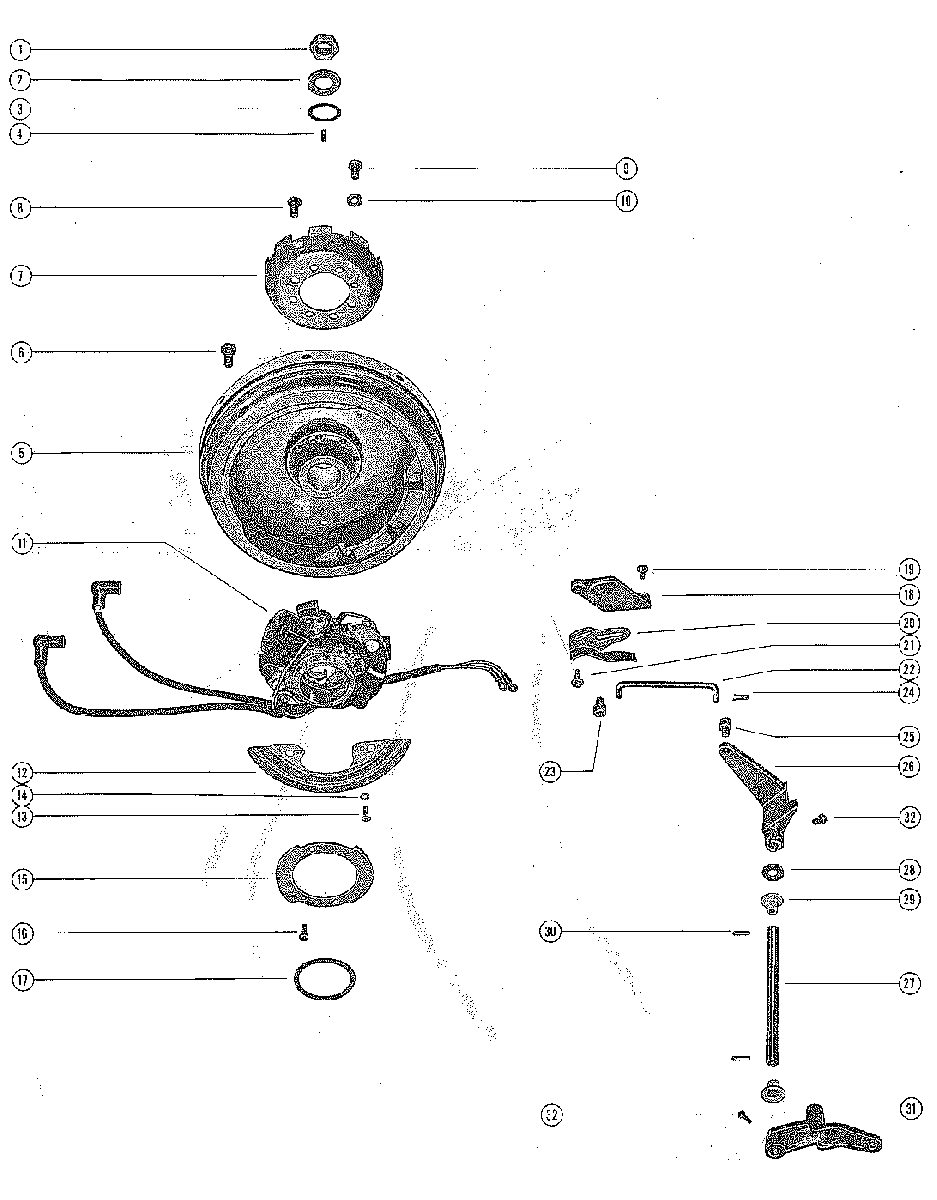

FLYWHEEL ASSEMBLY AND THROTTLE CONTROL LINKAGE для Mercury - 350 1812754 THRU 1960826
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-36281 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
325-37340 "O" RING, FLYWHEEL HUB"O" RING, FLYWHEEL HUB
-
428-45554 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
5218-2241A1 FLYWHEEL ASSEMBLY, COMPLETEFLYWHEEL ASSEMBLY, COMPLETE
-
610-35562 SCREW< FLEXIBLE PLATE TO FLYWHEELSCREW< FLEXIBLE PLATE TO FLYWHEEL
-
750-33000A1 RATCHET ASSEMBLY, FLYWHEELRATCHET ASSEMBLY, FLYWHEEL
-
810-32417 SCREW, RATCHET TO FLYWHEELSCREW, RATCHET TO FLYWHEEL
-
910-34290 SCREW, RACHET TO FLYWHEELSCREW, RACHET TO FLYWHEEL
-
1013-26992 LOCKWASHER, RATCHET TO FLYWHEEL SCREWLOCKWASHER, RATCHET TO FLYWHEEL SCREW
-
11398-2574A3 STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)
-
1236442A1 SHIELD ASSEMBLY, STATOR PLATESHIELD ASSEMBLY, STATOR PLATE
-
1310-45742 SCREW, SHIELD TO STATOR PLATESCREW, SHIELD TO STATOR PLATE
-
1413-26996 LOCKWASHER, SHIELD FASTENING SCREWLOCKWASHER, SHIELD FASTENING SCREW
-
1533904 RING, HOLD DOWN - STATOR PLATERING, HOLD DOWN - STATOR PLATE
-
1610-35400 SCREW, HOLD DOWN RING TO STATOR PLATESCREW, HOLD DOWN RING TO STATOR PLATE
-
1715-33910015 SHIM, STATOR PLATE TO UPPER END CAP (.015)SHIM, STATOR PLATE TO UPPER END CAP (.015)
-
1833974 BRACKET, THROTTLE CAMBRACKET, THROTTLE CAM
-
1910-29722 SCREW, THROTTLE CAM BRACKET TO STATOR PLATESCREW, THROTTLE CAM BRACKET TO STATOR PLATE
-
2034068 CAM, ADJUSTMENT - THROTTLECAM, ADJUSTMENT - THROTTLE
-
2110-31903 SCREW, ADJUSTINGG CAM TO BRACKETSCREW, ADJUSTINGG CAM TO BRACKET
-
2233970 ROD, THROTTLE CONTROLROD, THROTTLE CONTROL
-
2328232 TOGGLE BOLT, THROTTLE CONTROL RODTOGGLE BOLT, THROTTLE CONTROL ROD
-
2418-26811 COTTER PIN, THROTTLE CONTROL RODCOTTER PIN, THROTTLE CONTROL ROD
-
2533973 SWIVEL, THROTTLE CONTROL ROD TO ACTUATING LEVERSWIVEL, THROTTLE CONTROL ROD TO ACTUATING LEVER
-
2633842 LEVER, THROTTLE ACTUATING (UPPER)LEVER, THROTTLE ACTUATING (UPPER)
-
2733902 ROD, VERTICALROD, VERTICAL
-
2812-26825 WASHER, VERTICAL RODWASHER, VERTICAL ROD
-
2923-22981 BUSHING, NYLON - VERTICAL RODBUSHING, NYLON - VERTICAL ROD
-
3017-25870 PIN, ROLL - VERTICAL RODPIN, ROLL - VERTICAL ROD
-
3133833 LEVER, THROTTLE ACTUATING (LOWER)LEVER, THROTTLE ACTUATING (LOWER)
-
3210-25781 SCREW, SET - THROTTLE ACTUATING LEVERSSCREW, SET - THROTTLE ACTUATING LEVERS
