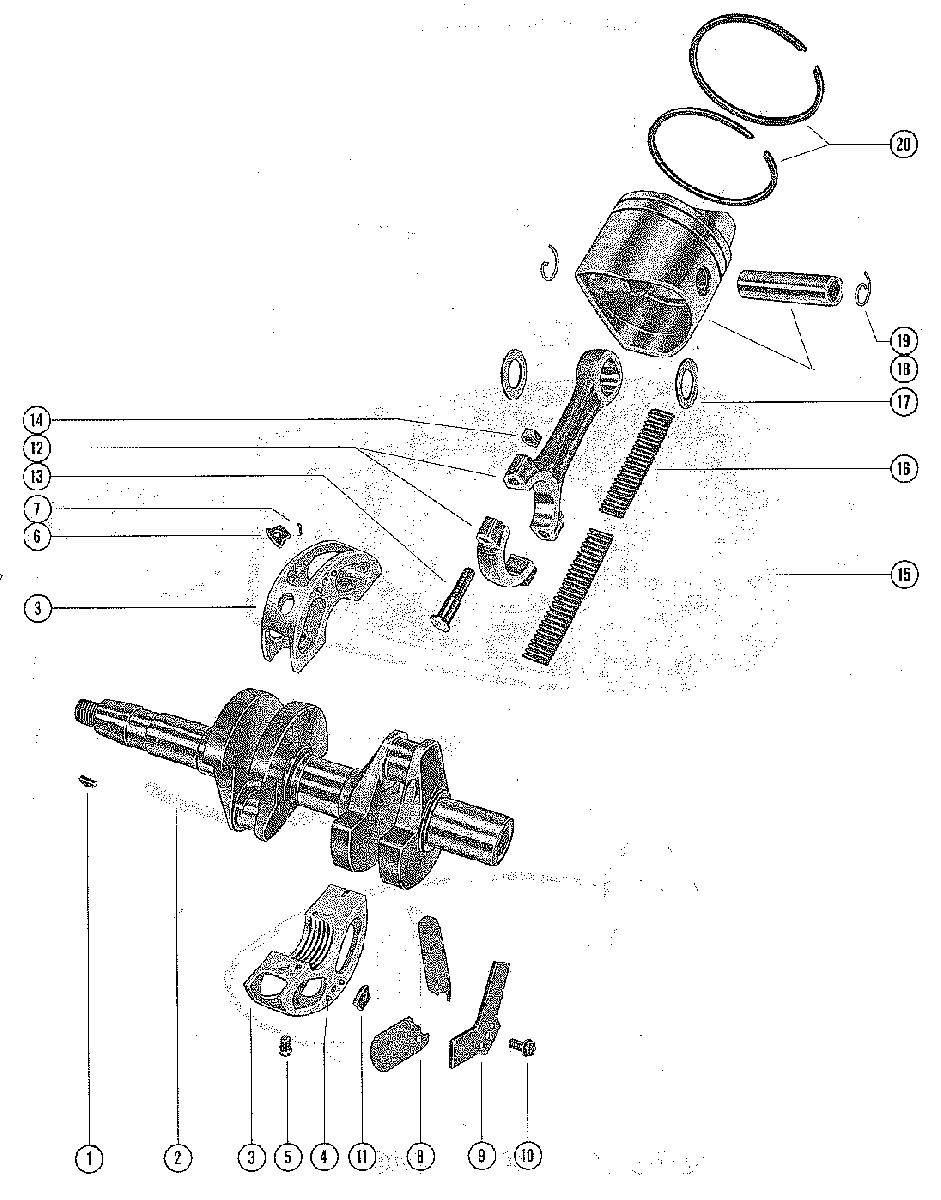

CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 350 1812754 THRU 1960826

  • №
    Артикул
    Название
  • 1
    28-45554 KEY, FLYWHEEL
    KEY, FLYWHEEL
  • 2
    422-2186 CRANKSHAFT
    CRANKSHAFT
  • 3
    533-2761A3 MAIN BEARING ASSEMBLY, VALVE TYPE
    MAIN BEARING ASSEMBLY, VALVE TYPE
  • 4
    17-20032 DOWEL PINE, MAIN BEARING
    DOWEL PINE, MAIN BEARING
  • 5
    10-25313 SCREW, MAIN BEARING CLAMPING
    SCREW, MAIN BEARING CLAMPING
  • 6
    11-29469 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 7
    17-20032 DOWEL PIN, MAIN BEARING TO CYLINDER BLOCK
    DOWEL PIN, MAIN BEARING TO CYLINDER BLOCK
  • 8
    34-32203A1 REED SET, MAIN BEARING (MATCHED)
    REED SET, MAIN BEARING (MATCHED)
  • 9
    34-64632 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 10
    10-77280 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • 11
    11-29469 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 12
    611-1885A4 CONNECTING ROD ASSEMBLY
    SERIAL 00000000-01898815
    CONNECTING ROD ASSEMBLY
    SERIAL 00000000-01898815
  • 13
    10-45379 SCREW, CONNECTING ROD
    SERIAL 00000000-01898815
    SCREW, CONNECTING ROD
    SERIAL 00000000-01898815
  • 14
    11-20061 NUT, CONNECTING ROD SCREW
    SERIAL 00000000-01898815
    NUT, CONNECTING ROD SCREW
    SERIAL 00000000-01898815
  • 15
    29-47897 BEARING, NEEDLE - CRANKPIN
    SERIAL 00000000-01898815
    BEARING, NEEDLE - CRANKPIN
    SERIAL 00000000-01898815
  • 16
    29-39656 BEARING, NEEDLE - PISTON PIN
    SERIAL 00000000-01898815
    BEARING, NEEDLE - PISTON PIN
    SERIAL 00000000-01898815
  • 17
    12-29681 WASHER, NEEDLE BEARING RETAINING
    SERIAL 00000000-01898815
    WASHER, NEEDLE BEARING RETAINING
    SERIAL 00000000-01898815
  • 12
    611-1885A4 CONNECTING ROD ASSEMBLY
    SERIAL 01898816-09999999
    CONNECTING ROD ASSEMBLY
    SERIAL 01898816-09999999
  • 13
    10-45379 SCREW, CONNECTING ROD SCREW
    SERIAL 01898816-09999999
    SCREW, CONNECTING ROD SCREW
    SERIAL 01898816-09999999
  • 14
    11-20061 NUT, CONNECTING ROD SCREW
    SERIAL 01898816-09999999
    NUT, CONNECTING ROD SCREW
    SERIAL 01898816-09999999
  • 15
    29-47897 BEARING, NEEDLE - CRANKPIN
    SERIAL 01898816-09999999
    BEARING, NEEDLE - CRANKPIN
    SERIAL 01898816-09999999
  • 16
    29-39656 BEARING, NEEDLE - PISTON PIN
    SERIAL 01898816-09999999
    BEARING, NEEDLE - PISTON PIN
    SERIAL 01898816-09999999
  • 17
    12-29681 WASHER, NEEDLE BEARING RETAINING
    SERIAL 01898816-09999999
    WASHER, NEEDLE BEARING RETAINING
    SERIAL 01898816-09999999
  • 18
    732-2735A2 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 19
    40-32118 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 20
    39-32921 RING, PISTON
    RING, PISTON
  • -
    732-2739A2 PISTON AND PISTON PIN ASSEMBLY(.015 OVERSIZE)
    PISTON AND PISTON PIN ASSEMBLY(.015 OVERSIZE)
  • -
    39-33945 RING, PISTON (.015 OVERSIZE)
    RING, PISTON (.015 OVERSIZE)
