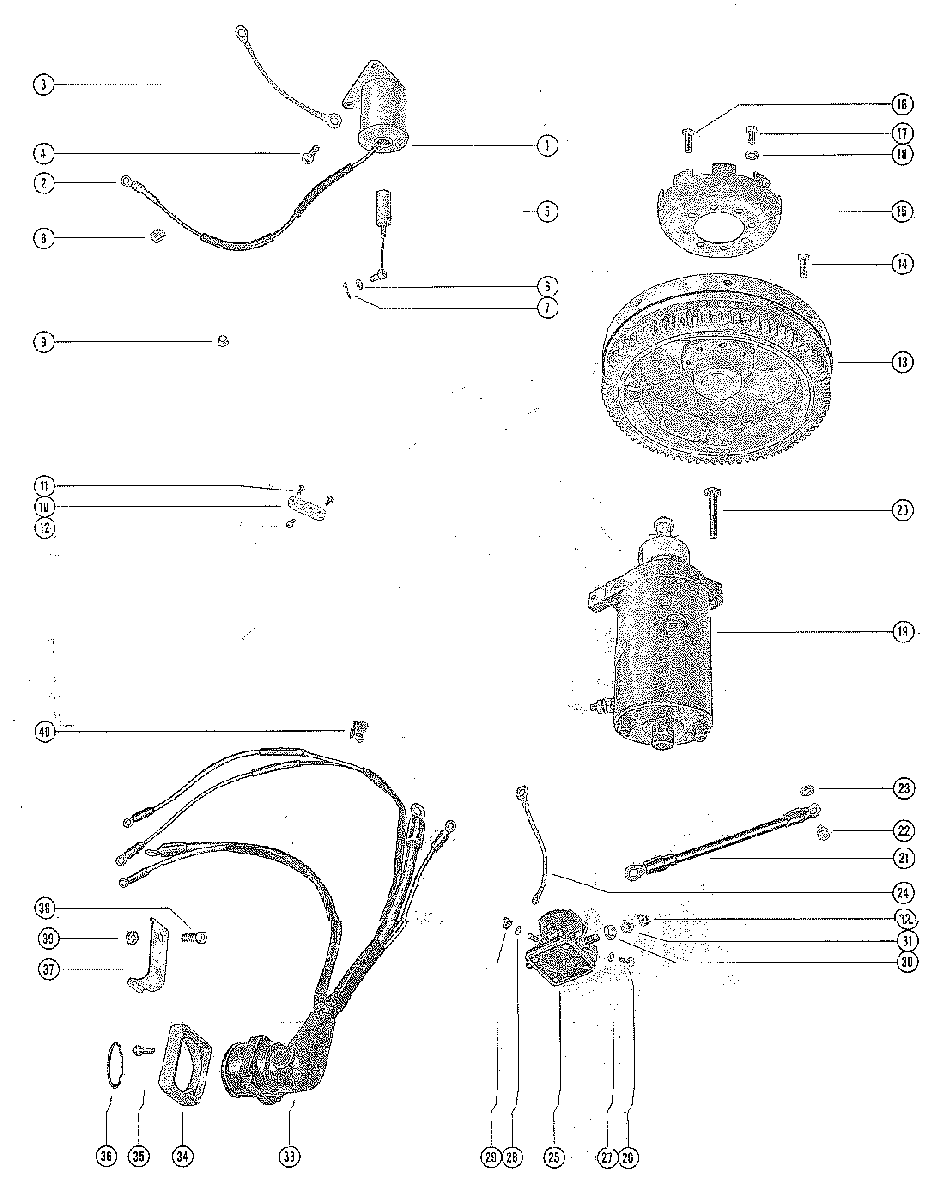

STARTER MOTOR, STARTER SOLENOID AND WIRING HARNESS для Mercury - 350 1812754 THRU 1960826
-
№АртикулНазвание
-
131041 CHOKE SOLENOID, TOP COWLCHOKE SOLENOID, TOP COWL
-
230050 DISCONNECT, CHOKE SOLENOID TERMINALSDISCONNECT, CHOKE SOLENOID TERMINALS
-
328016A1 GROUND STRAP ASSEMBLYGROUND STRAP ASSEMBLY
-
410-35194 SCREW, CHOKE SOLENOID TO TOP COWL (5/8")SCREW, CHOKE SOLENOID TO TOP COWL (5/8")
-
548315A4 PLUNGER ASSEMBLY, CHOKE SOLENOIDPLUNGER ASSEMBLY, CHOKE SOLENOID
-
612-30164 WASHER, CHOKE SOLENOID LINKWASHER, CHOKE SOLENOID LINK
-
718-26953 COTTER PIN, CHOKE SOLENOID LINK FASTENINGCOTTER PIN, CHOKE SOLENOID LINK FASTENING
-
854-22783 "S" CLIP, CHOKE SOLENOID LEADS TO TOP COWL"S" CLIP, CHOKE SOLENOID LEADS TO TOP COWL
-
923-30438 BUSHING, NYLON - CHOKE SBHUTTERBUSHING, NYLON - CHOKE SBHUTTER
-
1030212 TERMINAL BLOCK, CYLINDER BLOCKTERMINAL BLOCK, CYLINDER BLOCK
-
1110-72169 SCREW, TERMINAL BLOCK TO CYLINDER BLOCKSCREW, TERMINAL BLOCK TO CYLINDER BLOCK
-
1210-62568 SCREW, WIRING HARNESS LEADS TO TERMINAL BLOCKSCREW, WIRING HARNESS LEADS TO TERMINAL BLOCK
-
13218-2242A1 FLYWHEEL ASSEMBLY, COMPLETEFLYWHEEL ASSEMBLY, COMPLETE
-
1410-35562 SCREW, FLEXIBLE PLATE TO FLYWHEELSCREW, FLEXIBLE PLATE TO FLYWHEEL
-
1550-33000A1 RATCHET ASSEMBLY, FLYWHEELRATCHET ASSEMBLY, FLYWHEEL
-
1610-32417 SCREW, RATCHET TO FLYWHEELSCREW, RATCHET TO FLYWHEEL
-
1710-34290 SCREW, RATCHET TO FLYWHEELSCREW, RATCHET TO FLYWHEEL
-
1813-26992 LOCKWASHER, RATCHET TO FLYWHEEL SCREWLOCKWASHER, RATCHET TO FLYWHEEL SCREW
-
1950-55601A2 STARTER MOTOR ASSEMBLY
SERIAL 00000000-01900115STARTER MOTOR ASSEMBLY
SERIAL 00000000-01900115 -
1950-55601A2 STARTER MOTOR ASSEMBLY
SERIAL 01900116-09999999STARTER MOTOR ASSEMBLY
SERIAL 01900116-09999999 -
2010-35213 SCREW, STARTER MOTOR TO CRANKCASESCREW, STARTER MOTOR TO CRANKCASE
-
2126511 WIRE, STARTER MOTOR TO STARTER SOLENOIDWIRE, STARTER MOTOR TO STARTER SOLENOID
-
2210-69035 SCREW, GROUND WIRE TO STARTER MOTORSCREW, GROUND WIRE TO STARTER MOTOR
-
2313-26992 LOCKWASHER, GROUND WIRE FASTENING SCREWLOCKWASHER, GROUND WIRE FASTENING SCREW
-
2428016A1 GROUND STRAP ASS'Y, STARTER SOLENOID AND CYLINDER BLOCKGROUND STRAP ASS'Y, STARTER SOLENOID AND CYLINDER BLOCK
-
2532445A1 SOLENOID, STARTERSOLENOID, STARTER
-
2610-29238 SCREW, STARTER SOLENOID TO STARTER MOTORSCREW, STARTER SOLENOID TO STARTER MOTOR
-
2712-37998 WASHER, STARTER SOLENOID SCREWWASHER, STARTER SOLENOID SCREW
-
2813-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
2911-68219 NUT, STARTER SOLENOID TERMINAL (#10)NUT, STARTER SOLENOID TERMINAL (#10)
-
3013-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16)LOCKWASHER, STARTER SOLENOID TERMINAL (5/16)
-
3111-22053 NUT, STARTER SOLENOID TERMINAL (5/16)NUT, STARTER SOLENOID TERMINAL (5/16)
-
3211-26062 NUT, CAP - STARTER SOLENOID TERMINAL - OUTSIDE (5/16)NUT, CAP - STARTER SOLENOID TERMINAL - OUTSIDE (5/16)
-
3334229 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
3426079A2 PLATE, BACKING - WIRING HARNESSPLATE, BACKING - WIRING HARNESS
-
3510-45893 SCREW, BACKING PLATE TO BOTTOM COWLSCREW, BACKING PLATE TO BOTTOM COWL
-
3624-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
3734228 SUPPORT, EXTERNAL WIRING HARNESSSUPPORT, EXTERNAL WIRING HARNESS
-
3810-35092 SCREW, SUPPORT TO BOTTOM COWLSCREW, SUPPORT TO BOTTOM COWL
-
3911-24652 NUT, SUPPORT FASTENING SCREWNUT, SUPPORT FASTENING SCREW
-
4054-22740 CLIP, WIRING HARNESS LEADSCLIP, WIRING HARNESS LEADS
