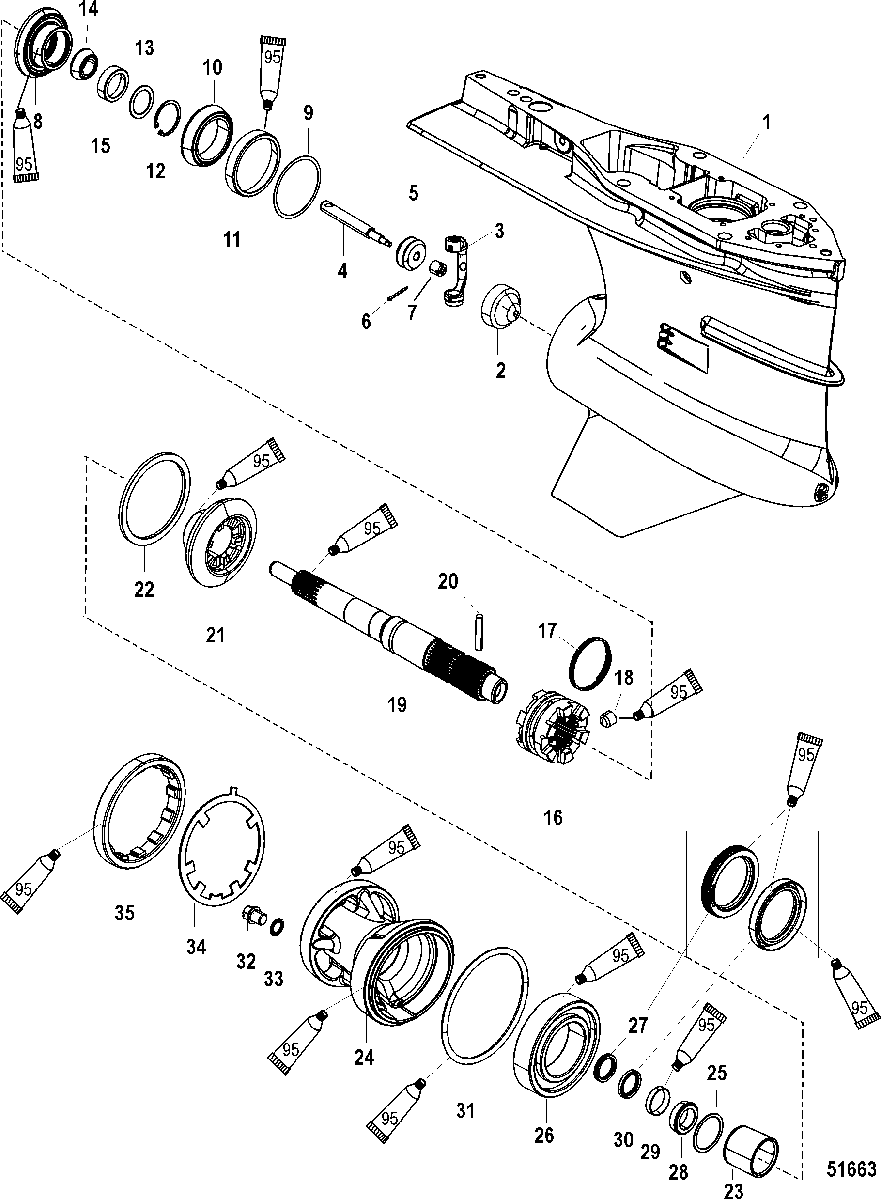

Gear Housing, Prop Shaft, Torque Master 2, SN-1B973744 & up для Mercury - 250 PRO XS (3.0L DFI) 1B752547 & Up
-
№АртикулНазвание
-
-1600-8M0075782 GEAR HOUSING ASSEMBLY, Complete, LongGEAR HOUSING ASSEMBLY, Complete, Long
-
11600-8M0075791 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
2NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
38M0046215 CRANK, Shifter, 1/4 Pivot PinCRANK, Shifter, 1/4 Pivot Pin
-
419755T7 SPOOL ASSEMBLYSPOOL ASSEMBLY
-
5NSS NOT SOLD SEPARATE, SpoolNOT SOLD SEPARATE, Spool
-
618-469501 COTTER PINCOTTER PIN
-
7NSS NOT SOLD SEPARATE, Sleeve AdjustingNOT SOLD SEPARATE, Sleeve Adjusting
-
843-892595A04 GEAR SET, Forward/PinionGEAR SET, Forward/Pinion
-
915-8M0063270 SHIM SETSHIM SET
-
1031-884323T01 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
11NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
1253-8M0051043 RETAINING RINGRETAINING RING
-
1312-8M0053823 THRUST WASHERTHRUST WASHER
-
1431-884325T01 BEARING ASSEMBLY, Roller-TapperedBEARING ASSEMBLY, Roller-Tappered
-
15NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
1652-880714T01 CLUTCHCLUTCH
-
1724-30893 SPRINGSPRING
-
1817-828356 PIN, DetentPIN, Detent
-
1944-8M0140443 PROPELLER SHAFTPROPELLER SHAFT
-
2017-8M0100263 PIN, CrossPIN, Cross
-
2143-8M0118363 GEAR, ReverseGEAR, Reverse
-
22880699 THRUST RINGTHRUST RING
-
2323-8M0064306 SPACERSPACER
-
248M0075827 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
2515-8M0076745 SHIM SETSHIM SET
-
2512-8M0050423 WASHER, .020WASHER, .020
-
2512-8M0050424 WASHER, .022WASHER, .022
-
2512-8M0050425 WASHER, .024WASHER, .024
-
2512-8M0050427 WASHER, .026WASHER, .026
-
2512-8M0050428 WASHER, .028WASHER, .028
-
2512-8M0050429 WASHER, .030WASHER, .030
-
2512-8M0050430 WASHER, .032WASHER, .032
-
2512-8M0050431 WASHER, .034WASHER, .034
-
2512-8M0050432 WASHER, .036WASHER, .036
-
2512-8M0050433 WASHER, .038WASHER, .038
-
2512-8M0050434 WASHER, .040WASHER, .040
-
2512-8M0050435 WASHER, .042WASHER, .042
-
2512-8M0050436 WASHER, .044WASHER, .044
-
2512-8M0050437 WASHER, .046WASHER, .046
-
2512-8M0050438 WASHER, .048WASHER, .048
-
2512-8M0050439 WASHER, .050WASHER, .050
-
2630-8M0142873 BEARING, BallBEARING, Ball
-
2726-888483 SEAL, OilSEAL, Oil
-
2831-884330T01 BEARING ASSEMBLY, TaperedBEARING ASSEMBLY, Tapered
-
29NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
3026-888483 SEAL, OilSEAL, Oil
-
3125-896524 O-RING, (3.850 x .210)O-RING, (3.850 x .210)
-
3210-880717A01 SCREW/SEAL KIT, .38 Inch Long
DrainSCREW/SEAL KIT, .38 Inch Long
Drain -
3210-8M0077071 SCREW/SEAL KIT, .75 Inch Long
DrainSCREW/SEAL KIT, .75 Inch Long
Drain -
3326-830749 SEALSEAL
-
3414-8M0056265 WASHER, TabWASHER, Tab
-
358M2000347 RETAINERRETAINER
-
-26-8M0077244 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-817275A08 REPAIR KIT, Water Pump-UpperREPAIR KIT, Water Pump-Upper
