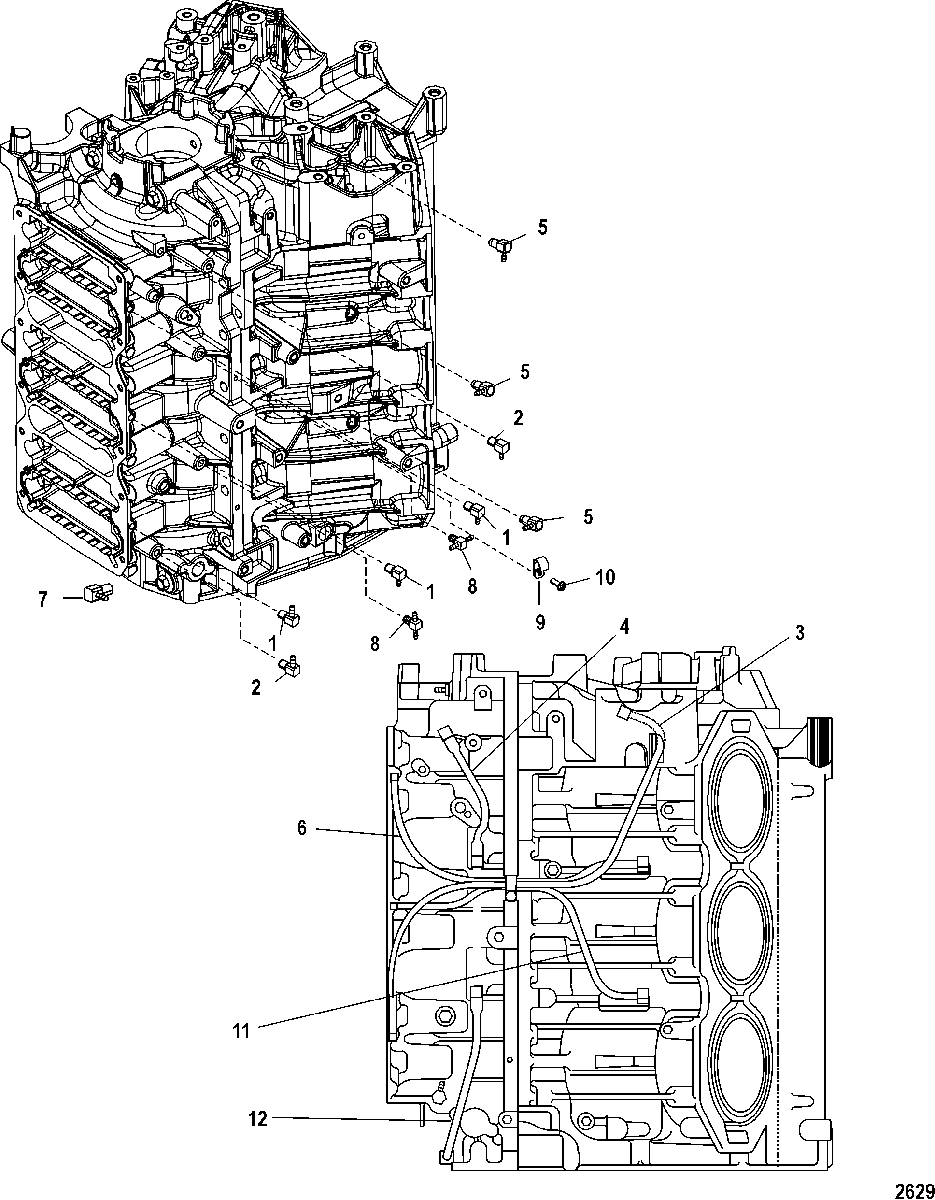

Port Center Main Oiling System для Mercury - 250 PRO XS (3.0L DFI) 1B752547 & Up

  • №
    Артикул
    Название
  • 1
    22-887801 FITTING, Elbow 90 Degree (.0625-27)
    FITTING, Elbow 90 Degree (.0625-27)
  • 2
    22-887801 FITTING, Elbow 90 Degree (.0625-27)
    FITTING, Elbow 90 Degree (.0625-27)
  • 3
    32-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 20.50 Inches)
    TUBING, (38.00 Inches Bulk) (Cut to 20.50 Inches)
  • 4
    32-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 5 Inches)
    TUBING, (38.00 Inches Bulk) (Cut to 5 Inches)
  • 5
    21-8592352 CHECK VALVE, 90 Degree (.0625-27)
    CHECK VALVE, 90 Degree (.0625-27)
  • 6
    32-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 13 Inches)
    TUBING, (38.00 Inches Bulk) (Cut to 13 Inches)
  • 7
    21-8282182 CHECK VALVE
    CHECK VALVE
  • 8
    21-8582362 CHECK VALVE
    CHECK VALVE
  • 9
    54-23567 CLIP
    CLIP
  • 10
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 11
    32-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 11 Inches)
    TUBING, (38.00 Inches Bulk) (Cut to 11 Inches)
  • 12
    32-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 9.50 Inches)
    TUBING, (38.00 Inches Bulk) (Cut to 9.50 Inches)
  • -
    61-843034A07 POWERHEAD ASSEMBLY
    225
    POWERHEAD ASSEMBLY
    225
  • -
    61-841017A52 POWERHEAD ASSEMBLY
    250
    POWERHEAD ASSEMBLY
    250
