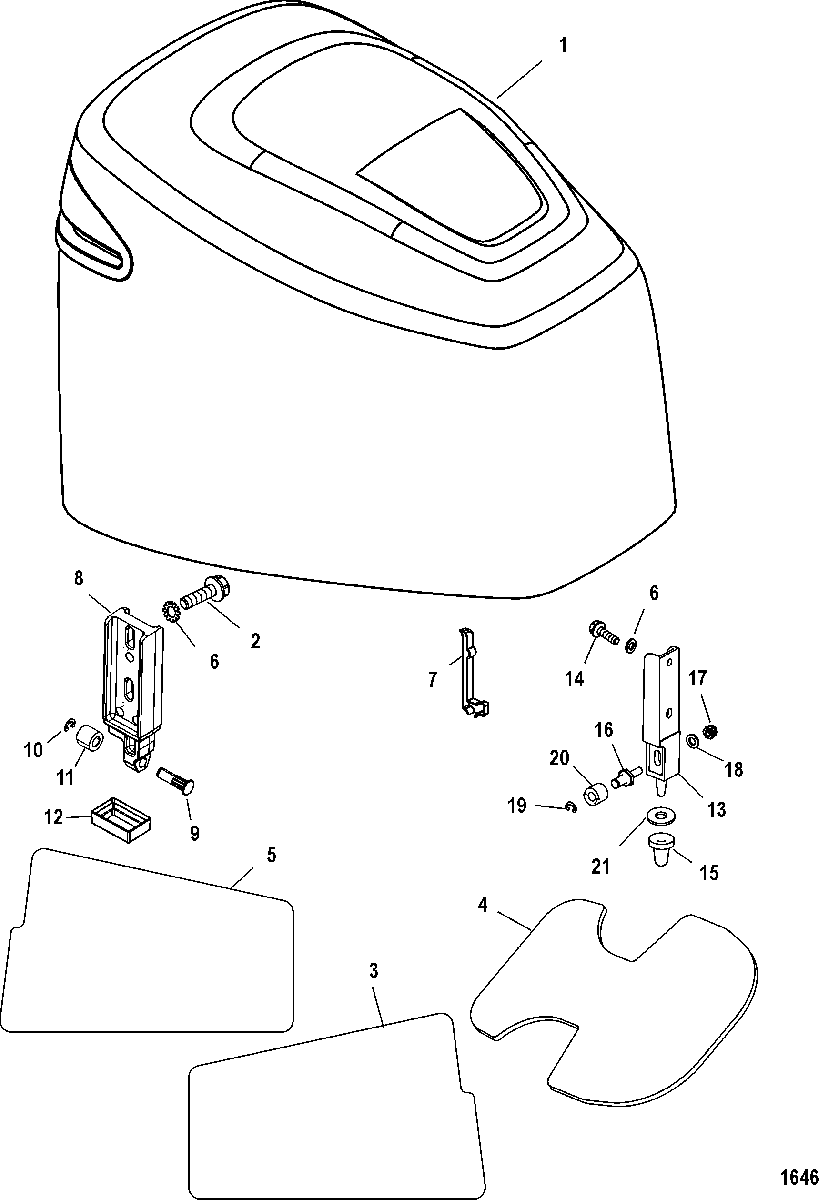

Top Cowl для Mercury - 250 PRO XS (3.0L DFI) 1B752547 & Up

  • №
    Артикул
    Название
  • 1
    100-8M0075372 TOP COWL ASSEMBLY, (Black) (Includes all Decals except HP and Strips)
    SN# 1B934307 & Below
    TOP COWL ASSEMBLY, (Black) (Includes all Decals except HP and Strips)
    SN# 1B934307 & Below
  • 1
    100-8M0083585 TOP COWL ASSEMBLY, (Black) (Includes all Decals except HP and Belt Line)
    SN# 1B934308 & Up
    TOP COWL ASSEMBLY, (Black) (Includes all Decals except HP and Belt Line)
    SN# 1B934308 & Up
  • 2
    10-82130030 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 3
    884041A04 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 4
    NSS NOT SOLD SEPARATE, Sound Blanket-Top
    NOT SOLD SEPARATE, Sound Blanket-Top
  • 5
    NSS NOT SOLD SEPARATE, Sound Blanket-Port
    NOT SOLD SEPARATE, Sound Blanket-Port
  • 6
    13-93702 WASHER, (.250 External Star)
    WASHER, (.250 External Star)
  • 7
    826639T COVER
    COVER
  • 8
    8M0010389 BRACKET ASSEMBLY, Cowl
    BRACKET ASSEMBLY, Cowl
  • 9
    NSS NOT SOLD SEPARATE, Pin
    NOT SOLD SEPARATE, Pin
  • 10
    53-8237951 RING, Retaining
    RING, Retaining
  • 11
    815263 ROLLER
    ROLLER
  • 12
    25-850685T02 GROMMET
    GROMMET
  • 13
    8M0036792 BRACKET, Front
    BRACKET, Front
  • 14
    10-82130020 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 15
    815477 BUMPER, Latch
    BUMPER, Latch
  • 16
    8155381 PIN, Roll
    PIN, Roll
  • 17
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 18
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 19
    53-8237951 RING, Retaining
    RING, Retaining
  • 20
    815263 ROLLER
    ROLLER
  • 21
    12-87161 WASHER
    WASHER
  • -
    37-897136A07 DECAL SET, ProXS, HP decal not included
    SN# 1B934307 & Below
    DECAL SET, ProXS, HP decal not included
    SN# 1B934307 & Below
  • -
    37-8M0114996 DECAL SET, ProXS, HP Decal not included
    SN# 1B934308 & Up
    DECAL SET, ProXS, HP Decal not included
    SN# 1B934308 & Up
  • -
    37-897136A07 DECAL SET, 250 ProXS
    SN# 1B934307 & Below
    DECAL SET, 250 ProXS
    SN# 1B934307 & Below
  • -
    37-8M0061186 DECAL, Horsepower 225
    SN# 1B934307 & Below
    DECAL, Horsepower 225
    SN# 1B934307 & Below
  • -
    37-8M0065747 DECAL, Horsepower 225
    SN# 1B934308 & Up
    DECAL, Horsepower 225
    SN# 1B934308 & Up
  • -
    37-8M0061187 DECAL, Horsepower 250
    SN# 1B934307 & Below
    DECAL, Horsepower 250
    SN# 1B934307 & Below
  • -
    37-8M0062029 DECAL, Horsepower 250
    SN# 1B934308 & Up
    DECAL, Horsepower 250
    SN# 1B934308 & Up
  • -
    37-8M0135962 DECAL, Strips
    SN# 1B934307 & Below
    DECAL, Strips
    SN# 1B934307 & Below
  • -
    37-8M0072981 DECAL, Belt Line
    SN# 1B934308 & Up
    DECAL, Belt Line
    SN# 1B934308 & Up
