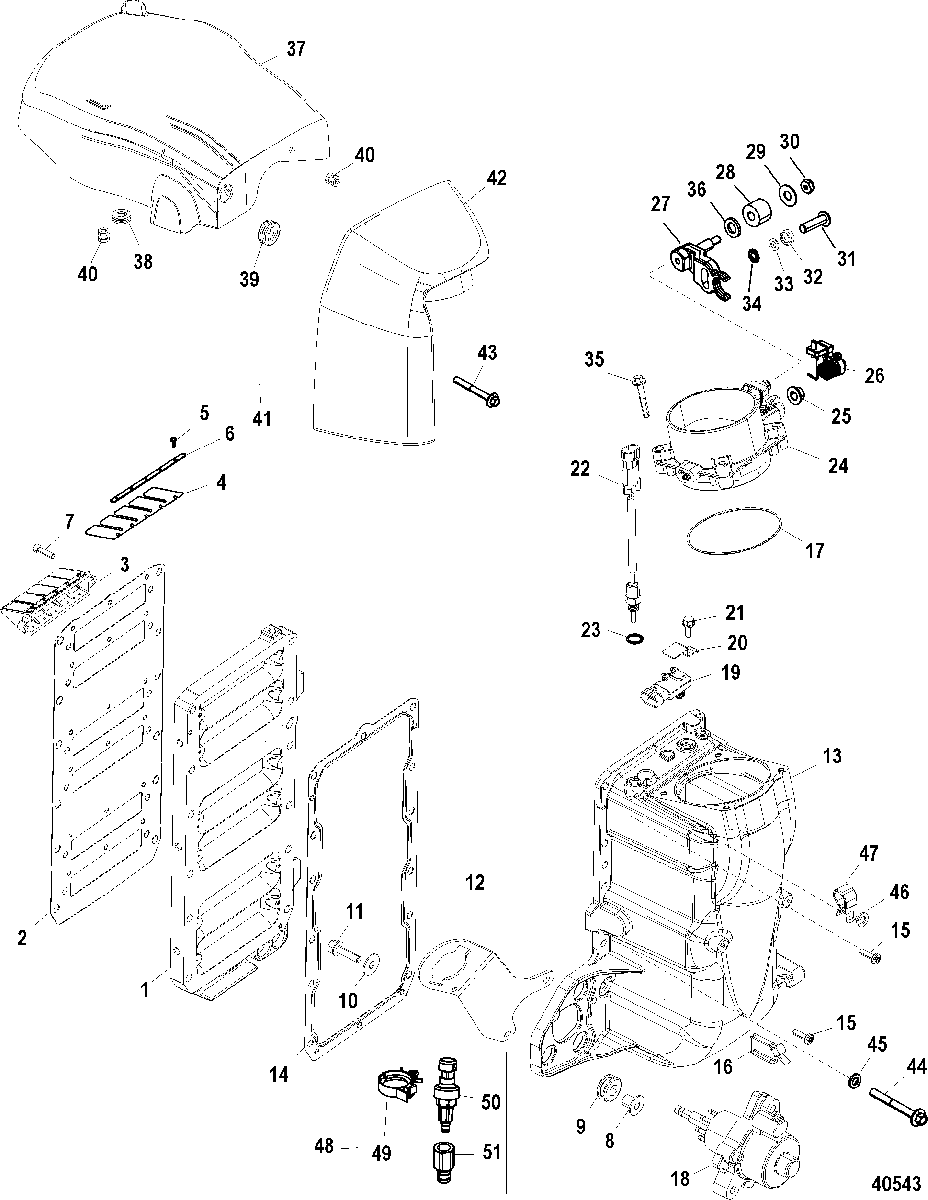

Air Handler для Mercury - 250 PRO XS (3.0L DFI) 1B752547 & Up

  • №
    Артикул
    Название
  • -
    878112T08 AIR HANDLER ASSEMBLY
    SN# 1B973743 & Below
    AIR HANDLER ASSEMBLY
    SN# 1B973743 & Below
  • -
    8M0075814 AIR HANDLING ASSEMBLY
    SN# 1B973744 & Up
    AIR HANDLING ASSEMBLY
    SN# 1B973744 & Up
  • 1
    858541T4 ADAPTOR PLATE
    ADAPTOR PLATE
  • 2
    27-841220 GASKET
    GASKET
  • 3
    840418T04 REED BLOCK ASSEMBLY
    REED BLOCK ASSEMBLY
  • 4
    34-840445A04 REED PETAL ASSEMBLY
    REED PETAL ASSEMBLY
  • 5
    10-849038 SCREW, (M3 x 5)
    SCREW, (M3 x 5)
  • 6
    840447 REED PLATE
    REED PLATE
  • 7
    10-8555252 SCREW, (M6)
    SCREW, (M6)
  • 8
    23-855364 BUSHING
    BUSHING
  • 9
    25-855362001 GROMMET
    GROMMET
  • 10
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 11
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 12
    8M0001447 BRACKET
    BRACKET
  • 13
    858708T1 PLENUM KIT, Air
    PLENUM KIT, Air
  • 14
    27-804679004 GASKET
    GASKET
  • 15
    10-883942 SCREW, (M4 x 16)
    SCREW, (M4 x 16)
  • 16
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 17
    25-855426 O-RING
    O-RING
  • 18
    8M0128080 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 19
    854445 SENSOR, MAP
    SENSOR, MAP
  • 20
    884522 BRACKET, MAP Sensor
    BRACKET, MAP Sensor
  • 21
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 22
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 23
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 24
    841194T04 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 25
    23-891774 BUSHING
    BUSHING
  • 26
    853659A01 LEVER KIT, Throttle
    LEVER KIT, Throttle
  • 27
    858851A03 LEVER ASSEMBLY, Throttle
    LEVER ASSEMBLY, Throttle
  • 28
    8M0072162 ROLLER
    ROLLER
  • 29
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 30
    11-826709104 NUT, (#8-32) Stainless Steel
    NUT, (#8-32) Stainless Steel
  • 31
    10-889354 SCREW, Special
    SCREW, Special
  • 32
    8M0095734 WASHER, Cupped
    WASHER, Cupped
  • 33
    8M0095734 WASHER, Spool
    WASHER, Spool
  • 34
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 35
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 36
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 37
    8M0111168 COVER ASSEMBLY
    COVER ASSEMBLY
  • 38
    25-86361 GROMMET
    GROMMET
  • 39
    25-13467 GROMMET, (.88 Inside Diameter)
    GROMMET, (.88 Inside Diameter)
  • 40
    25-821555001 GROMMET
    GROMMET
  • 41
    37-881865 DECAL, Caution-Start in Gear
    DECAL, Caution-Start in Gear
  • 42
    854343T11 ATTENUATOR, Air
    ATTENUATOR, Air
  • 43
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 44
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 45
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 46
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 47
    54-858902 CLAMP
    CLAMP
  • 48
    881879T25 SENSOR ASSEMBLY, Pitot
    SENSOR ASSEMBLY, Pitot
  • 49
    54-883066 CLIP, (.865)
    CLIP, (.865)
  • 50
    881879T11 SENSOR, Pressure (0 - 100 PSI)
    SENSOR, Pressure (0 - 100 PSI)
  • 51
    22-892403 FITTING
    FITTING
  • -
    27-841220A03 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    61-843034A07 POWERHEAD ASSEMBLY
    225
    POWERHEAD ASSEMBLY
    225
  • -
    61-841017A52 POWERHEAD ASSEMBLY
    250
    POWERHEAD ASSEMBLY
    250
