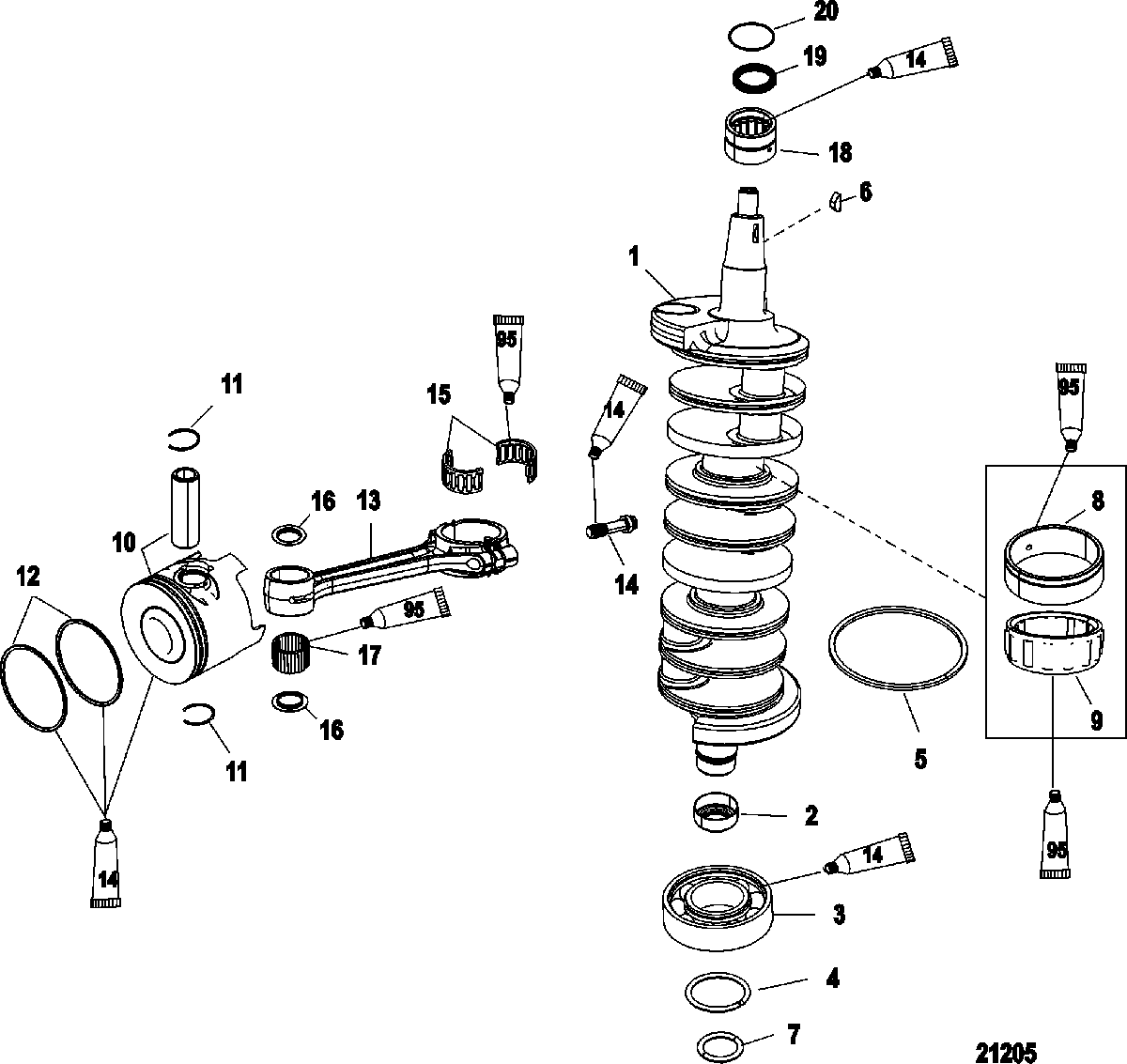

Crankshaft, Pistons and Connecting Rods для Mercury - 250 PRO XS (3.0L DFI) 1B752547 & Up
-
№АртикулНазвание
-
1482-842753A02 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
2830882 WEAR SLEEVEWEAR SLEEVE
-
330-67923T BEARING, Ball (Lower)BEARING, Ball (Lower)
-
453-67446 RINGRING
-
539-843198T01 RING, SealRING, Seal
-
628-91800 KEY, WoodruffKEY, Woodruff
-
725-35126 O-RING, (.859 x .139)O-RING, (.859 x .139)
-
831-88270A02 BEARING/RACE KITBEARING/RACE KIT
-
931-88269T BEARING ASSEMBLYBEARING ASSEMBLY
-
102720-843199T13 PISTON ASSEMBLY
(Starboard)PISTON ASSEMBLY
(Starboard) -
102720-842986T03 PISTON ASSEMBLY
(Port)PISTON ASSEMBLY
(Port) -
1140-841202 RINGRING
-
1239-858772A02 RING SET, PistonRING SET, Piston
-
13647-879148T74 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1410-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1531-844338A01 BEARING ASSEMBLYBEARING ASSEMBLY
-
1612-88263 THRUST WASHERTHRUST WASHER
-
1729-88258001 BEARING, NeedleBEARING, Needle
-
1831-816773A2 BEARING ASSEMBLY (Upper)BEARING ASSEMBLY (Upper)
-
1926-859093 SEALSEAL
-
2025-823683 O-RING, (1.989 x .070)O-RING, (1.989 x .070)
-
-27-841220A03 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-843034A07 POWERHEAD ASSEMBLY
225POWERHEAD ASSEMBLY
225 -
-61-841017A52 POWERHEAD ASSEMBLY
250POWERHEAD ASSEMBLY
250
