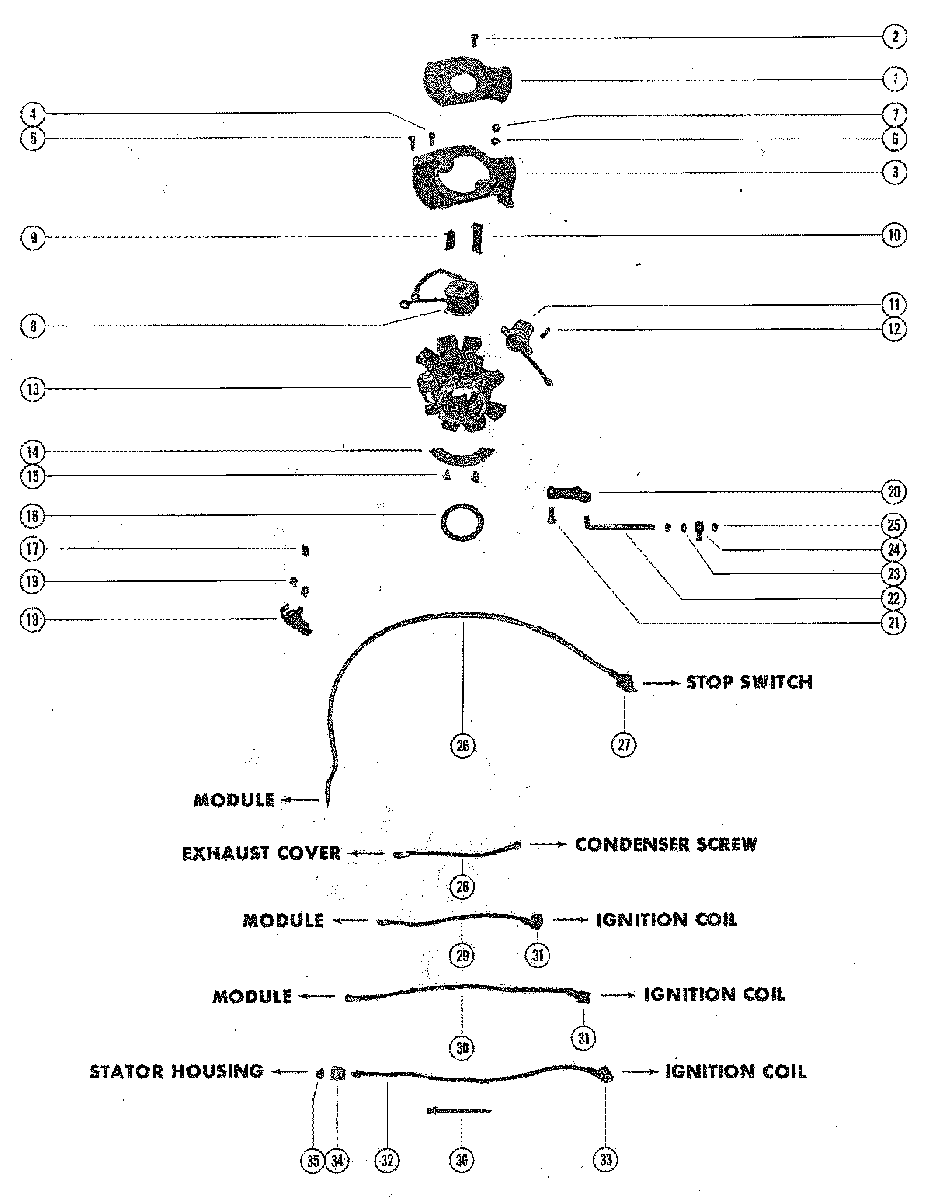

STATOR AND IGNITION COMPONENTS для Mercury - 200 3226958 THRU 3537530
-
№АртикулНазвание
-
1336-4524A1 COVER ASSEMBLYCOVER ASSEMBLY
-
210-60491 SCREW, COVER TO MODULE (5/8')SCREW, COVER TO MODULE (5/8')
-
3336-4516A2 IGNITION MODULE ASSEMBLYIGNITION MODULE ASSEMBLY
-
410-59800 SCREW< MODULE TO STATOR (9/16")SCREW< MODULE TO STATOR (9/16")
-
410-59800 SCREW, MODULE TO STATOR (9/16")SCREW, MODULE TO STATOR (9/16")
-
410-59800 SCREW, MODULE TO STATOR (9/16")SCREW, MODULE TO STATOR (9/16")
-
410-59800 SCREW, MODULE TO STATOR (9/16")SCREW, MODULE TO STATOR (9/16")
-
410-59800 SCREW, MODULE TO STATOR (9/16")SCREW, MODULE TO STATOR (9/16")
-
510-36046 SCREW, MODULE - COIL LEADS (1/4")SCREW, MODULE - COIL LEADS (1/4")
-
613-26996 LOCKWASHER, MODULE - IGNITION COIL LEAD TERMINALSLOCKWASHER, MODULE - IGNITION COIL LEAD TERMINALS
-
711-45076 NUT, MODULE - IGNITION COIL LEAD TERMINALSNUT, MODULE - IGNITION COIL LEAD TERMINALS
-
8336-4468A1 COIL, HIGH SPEEDCOIL, HIGH SPEED
-
8336-4467A1 COIL, LOW SPEEDCOIL, LOW SPEED
-
954-59538T CLIP, COIL RETAININGCLIP, COIL RETAINING
-
1054-59539 CLIP, COIL RETAININGCLIP, COIL RETAINING
-
11336-4463 CONDENSER ASSEMBLYCONDENSER ASSEMBLY
-
1210-62269 SCREW< CONDENSER ATTACHING (7/16")SCREW< CONDENSER ATTACHING (7/16")
-
13336-4477A1 STATRO ASSEMBLYSTATRO ASSEMBLY
-
14336-4458 PLATE, STATOR HOLD DOWNPLATE, STATOR HOLD DOWN
-
1510-35400 SCREW, HOLD DOWN PLATE TO STATOR (7/16")SCREW, HOLD DOWN PLATE TO STATOR (7/16")
-
1615-33910015 SHIM, STATOR PLATE TO UPPER END CAPSHIM, STATOR PLATE TO UPPER END CAP
-
17336-3989 WICK, CAM WIPER - STATER ASSEMBLYWICK, CAM WIPER - STATER ASSEMBLY
-
18336-4318A2 MAKER ASSEMBLY, STATOR HOUSINGMAKER ASSEMBLY, STATOR HOUSING
-
1910-56266 SCREW, MAKER TO STATOR HOUSING (3/8")SCREW, MAKER TO STATOR HOUSING (3/8")
-
2059710 BRACKET, LINK ROD TO STATOR PLATEBRACKET, LINK ROD TO STATOR PLATE
-
2110-29722 SCREW, BRACKET TO STATOR (5/8")SCREW, BRACKET TO STATOR (5/8")
-
2259783 LINK, THROTTLE - STATOR ASSEMBLYLINK, THROTTLE - STATOR ASSEMBLY
-
2312-30164 WASHER, THROTTLE LINKWASHER, THROTTLE LINK
-
2433973 SWIVEL, THROTTLE LINKSWIVEL, THROTTLE LINK
-
2511-859124 NUT, THROTTLE LINKNUT, THROTTLE LINK
-
2656319A3 LEAD ASSEMBLY, STOP SWITCH (SALMON - 24 3/16")LEAD ASSEMBLY, STOP SWITCH (SALMON - 24 3/16")
-
2759060 BOOT, LEAD ASSEMBLYBOOT, LEAD ASSEMBLY
-
2856757A1 JUMPER WIRE ASSEMBLY, CONDENSER TO EXHAUST COVER (BLACK - 6)JUMPER WIRE ASSEMBLY, CONDENSER TO EXHAUST COVER (BLACK - 6)
-
2956318A6 LEAD ASSEMBLY, MODULE TO IGNITION COIL (GREEN - 10 3/4")LEAD ASSEMBLY, MODULE TO IGNITION COIL (GREEN - 10 3/4")
-
3056318A5 LEAD ASSEMBLY, MODULE TO IGNITION COIL (GREEN - 13 7/8")LEAD ASSEMBLY, MODULE TO IGNITION COIL (GREEN - 13 7/8")
-
3138938 BOOT, LEAD ASSEMBLYBOOT, LEAD ASSEMBLY
-
3256316A3 CABLE ASSEMBLY, STATOR HOUSING (WHITE - 12 3/4")CABLE ASSEMBLY, STATOR HOUSING (WHITE - 12 3/4")
-
3256317A4 CABLE ASSEMBLY< STATOR HOUSING (BROWN - 16 1/4")CABLE ASSEMBLY< STATOR HOUSING (BROWN - 16 1/4")
-
3338938 BOOT, CABLEBOOT, CABLE
-
34336-4460 INSULATOR, CABLE TO CONTACT HOUSINGINSULATOR, CABLE TO CONTACT HOUSING
-
3511-56325 NUT, CABLE INSULATORNUT, CABLE INSULATOR
-
3656762 STA-STRAPSTA-STRAP
