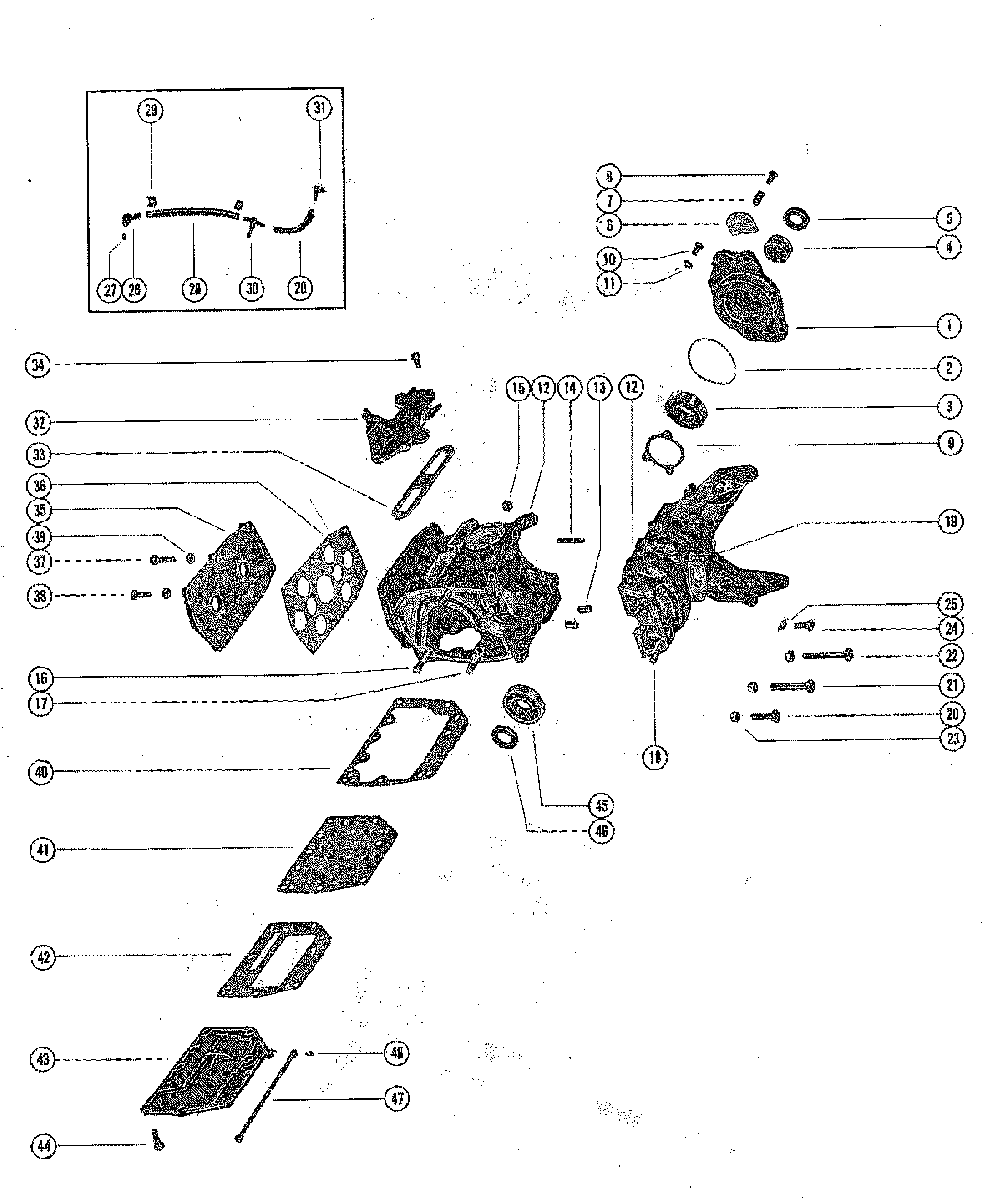

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 200 3226958 THRU 3537530

  • №
    Артикул
    Название
  • 1
    1147-4472A1 CRANKCASE TOP ASSEMBLY
    CRANKCASE TOP ASSEMBLY
  • 2
    25-20081 "O" RING, CRANKCASE TOP
    "O" RING, CRANKCASE TOP
  • 3
    30-63326T BEARING, BALL - CRANKCASE TOP (UPPER)
    BEARING, BALL - CRANKCASE TOP (UPPER)
  • 4
    31-20594 BEARING, ROLLER - CRANKCASE TOP (UPPER)
    BEARING, ROLLER - CRANKCASE TOP (UPPER)
  • 5
    26-66300 OIL SEAL, CRANKCASE TOP (UPPER)
    OIL SEAL, CRANKCASE TOP (UPPER)
  • 6
    54-53557A1 CLIP ASSEMBLY, STATOR HOLD DOWN
    CLIP ASSEMBLY, STATOR HOLD DOWN
  • 7
    24-34731 SPRING, STATOR HOLD DOWN
    SPRING, STATOR HOLD DOWN
  • 8
    10-53852 SCREW, CLIP ASSEMBLY TO END CAP (5/8")
    SCREW, CLIP ASSEMBLY TO END CAP (5/8")
  • 9
    15-56191A1 SHIM, CRANKCASE TOP TO CYLINDER BLOCK (.002-3-5-10)
    SHIM, CRANKCASE TOP TO CYLINDER BLOCK (.002-3-5-10)
  • 10
    10-24786 SCREW, CRANKCASE TOP TO CYLINDER BLOCK (5/8")
    SCREW, CRANKCASE TOP TO CYLINDER BLOCK (5/8")
  • 11
    13-20202 LOCKWASHER, CRANKCASE TOP TO CYLINDER BLOCK SCREW
    LOCKWASHER, CRANKCASE TOP TO CYLINDER BLOCK SCREW
  • 12
    848-6434A1 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 13
    17-23784 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
    PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
  • 14
    16-65866 STUD, CRANKCASE TO CYLINDER BLOCK (1 5/16")
    STUD, CRANKCASE TO CYLINDER BLOCK (1 5/16")
  • 15
    11-29250 NUT, CRANKCASE STUD
    NUT, CRANKCASE STUD
  • 16
    16-65868 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 1/8")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 1/8")
  • 17
    16-68165 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 5/8")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 5/8")
  • 18
    16-68165 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
  • 19
    16-65865 STUD, CARBURETOR TO CRANKCASE (1 3/32")
    STUD, CARBURETOR TO CRANKCASE (1 3/32")
  • 20
    10-26066 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
  • 21
    10-26065 SCREW, CRANKCASE TO CYLINDER BLOCK (1")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1")
  • 21
    10-21449 SCREW, CRANKCASE TO CYLINDER BLOCK (2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2")
  • 22
    10-26132 SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")
  • 23
    11-29250 NUT, CRANKCASE SCREW
    NUT, CRANKCASE SCREW
  • 24
    10-98260 SCREW, LOCK - CENTER MAIN BEARING (5/8")
    SCREW, LOCK - CENTER MAIN BEARING (5/8")
  • 25
    14-20091 TAB WASHER, CENTER MAIN BEARING LOCK SCREW
    TAB WASHER, CENTER MAIN BEARING LOCK SCREW
  • 26
    22-61295A5 ELBOW ASSEMBLY, BLEED DRAIN PART OF CYLINDER BLOCK AND CRANK
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    ELBOW ASSEMBLY, BLEED DRAIN PART OF CYLINDER BLOCK AND CRANK
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 27
    21-42657A3 CHECK VALVE ASSEMBLY
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CHECK VALVE ASSEMBLY
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 28
    32-892024122 HOSE, BLEED DRAIN
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    HOSE, BLEED DRAIN
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 29
    54-56223 CLAMP, BLEED HOSE ATTACHING
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CLAMP, BLEED HOSE ATTACHING
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 30
    22-61559 TEE, INJECTION
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    TEE, INJECTION
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 31
    22-78915 ELBOW, BLEED DRAIN
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    ELBOW, BLEED DRAIN
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 32
    77362 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 33
    27-279361 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 34
    10-28636 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (3/4")
    SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (3/4")
  • 34
    10-24646 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
    SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
  • 35
    1022-3567 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 36
    27-78410 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 37
    10-24644 SCREW< COVER TO CYLINDER BLOCK (1 3/8")
    SCREW< COVER TO CYLINDER BLOCK (1 3/8")
  • 38
    10-21091 SCREW, COVER TO CYLINDER BLOCK (1 1/8')
    SCREW, COVER TO CYLINDER BLOCK (1 1/8')
  • 39
    11-20184 NUT, CYLINDER BLOCK COVER SCREW
    NUT, CYLINDER BLOCK COVER SCREW
  • 40
    27-78411 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 41
    39308 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 42
    27-78409 GASKET, BAFFLE PLATE TO MANIFOLD COVER
    GASKET, BAFFLE PLATE TO MANIFOLD COVER
  • 43
    88797 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 44
    10-28782 SCREW, MANIFOLD COVER TO CYLINDER BLOCK (7/8")
    SCREW, MANIFOLD COVER TO CYLINDER BLOCK (7/8")
  • 45
    30-63326T BEARING, BALL - CRANKCASE (LOWER)
    BEARING, BALL - CRANKCASE (LOWER)
  • 46
    26-66302 OIL SEAL, CRANKCASE (LOWER)
    OIL SEAL, CRANKCASE (LOWER)
  • 47
    56757A2 GROUND WIRE ASSEMBLY, EXHAUST COVER TO BOTTOM COWL
    GROUND WIRE ASSEMBLY, EXHAUST COVER TO BOTTOM COWL
  • 48
    10-62568 SCREW, GROUND LEAD TO EXHAUST COVER (3/8")
    SCREW, GROUND LEAD TO EXHAUST COVER (3/8")
