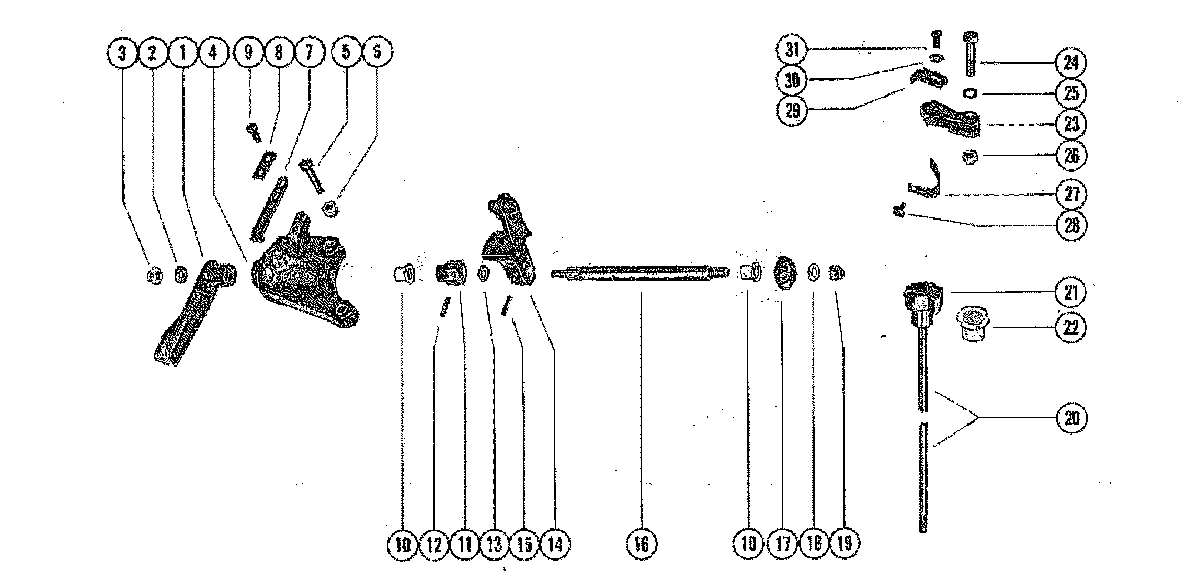

SHIFT CONTROL LINKAGE для Mercury - 200 3226958 THRU 3537530

  • №
    Артикул
    Название
  • 1
    59107 HANDLE, NYLON - SHIFT CONTROL
    HANDLE, NYLON - SHIFT CONTROL
  • 2
    12-29245 WASHER, SHIFT CONTROL HANDLE
    WASHER, SHIFT CONTROL HANDLE
  • 3
    11-826709109 NUT, SHIFT CONTROL HANDLE TO SHIFT SHAFT
    NUT, SHIFT CONTROL HANDLE TO SHIFT SHAFT
  • 4
    64122 BRACKET, MOUNTING - SHIFT SHAFT
    BRACKET, MOUNTING - SHIFT SHAFT
  • 5
    10-56500 SCREW, MOUNTING BRACKET TO POWERHEAD PLATE (1 1/4")
    SCREW, MOUNTING BRACKET TO POWERHEAD PLATE (1 1/4")
  • 6
    11-20184 NUT, MOUNTING BRACKET SCREW
    NUT, MOUNTING BRACKET SCREW
  • 7
    24-39627 SPRING, DETENT - MOUNTING BRACKET
    SPRING, DETENT - MOUNTING BRACKET
  • 8
    39601 PLATE, DETENT SPRING
    PLATE, DETENT SPRING
  • 9
    10-69022 SCREW, PLATE AND SPRING TO MOUNTING BRACKET (1/2")
    SCREW, PLATE AND SPRING TO MOUNTING BRACKET (1/2")
  • 10
    23-30678 BUSHING, NYLON - SHIFT SHAFT
    BUSHING, NYLON - SHIFT SHAFT
  • 11
    39588 CAM, DETENT - SHIFT SHAFT
    CAM, DETENT - SHIFT SHAFT
  • 12
    17-25905 PIN, ROLL - DETENT CAM TO SHIFT SHAFT
    PIN, ROLL - DETENT CAM TO SHIFT SHAFT
  • 13
    13-36206 WASHER, WAVE - SHIFT SHAFT
    WASHER, WAVE - SHIFT SHAFT
  • 14
    39415 LEVER, SHIFT CONTROL
    LEVER, SHIFT CONTROL
  • 15
    17-25905 PIN, ROLL - SHIFT CONTROL LEVER TO SHIFT SHAFT
    PIN, ROLL - SHIFT CONTROL LEVER TO SHIFT SHAFT
  • 16
    39632 SHAFT< SHIFT (HORIZONTAL)
    SHAFT< SHIFT (HORIZONTAL)
  • 17
    43-30802 GEAR, SECTOR - SHIFT SHAFT
    GEAR, SECTOR - SHIFT SHAFT
  • 18
    12-29245 WASHER< SHIFT SHAFT
    WASHER< SHIFT SHAFT
  • 19
    11-8267089 NUT, SECTOR GEAR TO SHIFT SHAFT
    NUT, SECTOR GEAR TO SHIFT SHAFT
  • 20
    61009A1 SHIFT CONTROL SHAFT ASSEMBLY, VERTICAL
    SHIFT CONTROL SHAFT ASSEMBLY, VERTICAL
  • 21
    43-58972 GEAR, SECTOR - SHIFT CONTROL SHAFT
    GEAR, SECTOR - SHIFT CONTROL SHAFT
  • 22
    23-30677 BUSHING, NYLON - SHIFT CONTROL SHAFT
    BUSHING, NYLON - SHIFT CONTROL SHAFT
  • 23
    58979 FOLLOWER, NEUTRAL SPEED LIMITER
    FOLLOWER, NEUTRAL SPEED LIMITER
  • 24
    10-24644 SCREW, FOLLOWER TO POWERHEAD MOUNTING PLATE (1 3/8")
    SCREW, FOLLOWER TO POWERHEAD MOUNTING PLATE (1 3/8")
  • 25
    15-28212 SHIM, LIMITER FOLLOWER SCREW
    SHIM, LIMITER FOLLOWER SCREW
  • 26
    11-20184 NUT, LIMITER FOLLOWER SCREW
    NUT, LIMITER FOLLOWER SCREW
  • 27
    24-39675 SPRING, NEUTRAL SPEED LIMITER FOLLOWER
    SPRING, NEUTRAL SPEED LIMITER FOLLOWER
  • 28
    10-62568 SCREW, SPRING TO LIMITER FOLLOWER (3/8")
    SCREW, SPRING TO LIMITER FOLLOWER (3/8")
  • 29
    72857 STOP, OVER-SPEED LIMITER
    STOP, OVER-SPEED LIMITER
  • 30
    12-24676 WASHER, LIMITER STOP SCREW
    WASHER, LIMITER STOP SCREW
  • 31
    10-35400 SCREW, LIMITER STOP TO FOLLOWER (7/16")
    SCREW, LIMITER STOP TO FOLLOWER (7/16")
