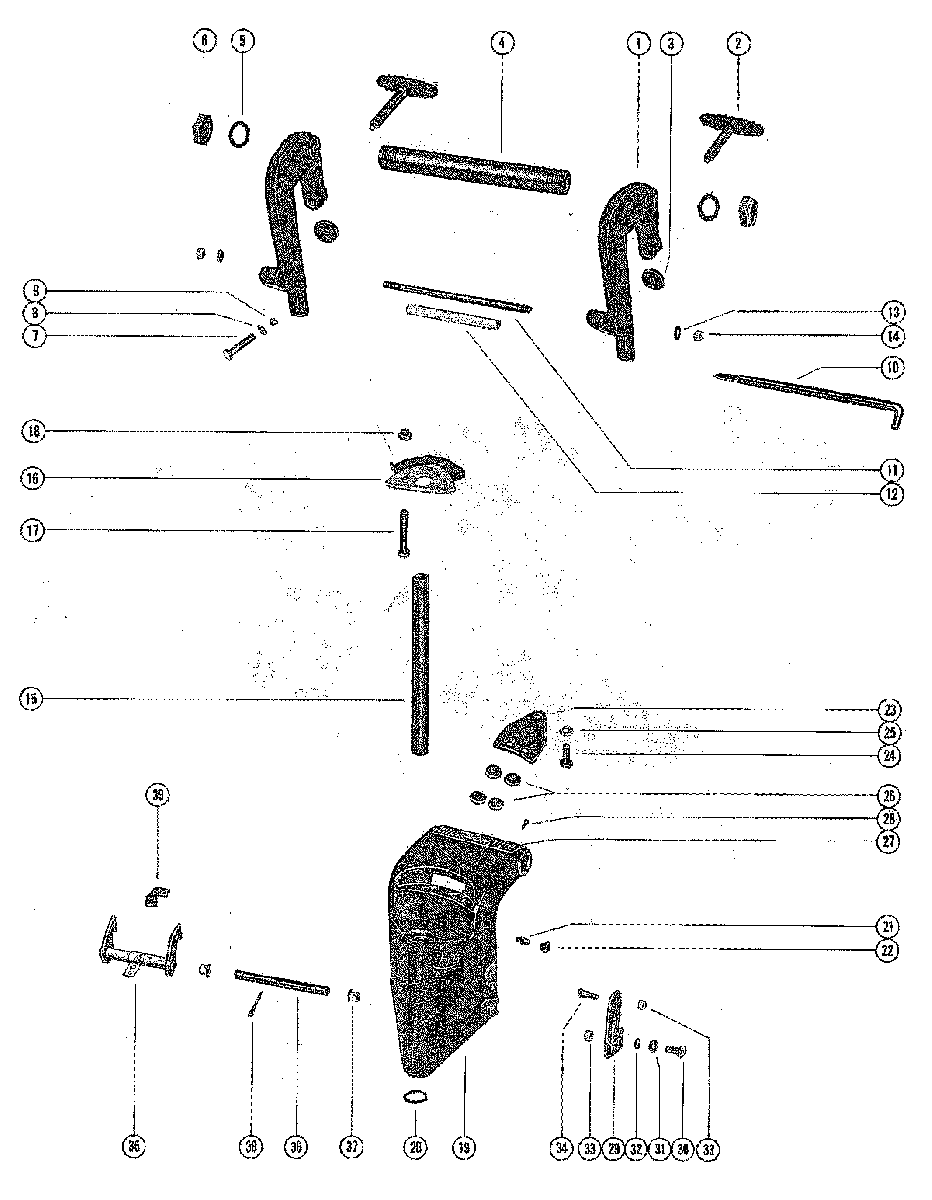

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 200 3226958 THRU 3537530

  • №
    Артикул
    Название
  • 1
    1427-5632A3 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    22477A4 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-26227 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    74249 TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKET
    TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    12-52864 SHIM, CLAMP BRACKET TILT TUBE
    SHIM, CLAMP BRACKET TILT TUBE
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    10-26483 BOLT, CLAMP BRACKET TO TRANSOM (2 3/4")
    BOLT, CLAMP BRACKET TO TRANSOM (2 3/4")
  • 8
    12-67981 WASHER, CLAMP BRACKET SCREW
    WASHER, CLAMP BRACKET SCREW
  • 9
    11-26484 NUT, CLAMP BRACKET SCREW
    NUT, CLAMP BRACKET SCREW
  • 10
    17-56373A2 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 11
    16-59620 STUD, CLAMP BRACKET (8")
    STUD, CLAMP BRACKET (8")
  • 12
    23-59621T SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 13
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 14
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 15
    17-39585 SWIVEL PIN
    SWIVEL PIN
  • 16
    33423 CO-PILOT DISC
    CO-PILOT DISC
  • 17
    10-26132 SCREW, CO-PILOT DISC TO SADDLE (2 1/2")
    SCREW, CO-PILOT DISC TO SADDLE (2 1/2")
  • 18
    11-29250 NUT, CO-PILOT DISC TO SADDLE SCREW
    NUT, CO-PILOT DISC TO SADDLE SCREW
  • 19
    1461-6667A1 SWIVEL BRACKET ASSEMBLY
    SERIAL 00000000-03312949
    SWIVEL BRACKET ASSEMBLY
    SERIAL 00000000-03312949
  • 20
    25-29845 "O" RING, SWIVEL BRACKET
    SERIAL 00000000-03312949
    "O" RING, SWIVEL BRACKET
    SERIAL 00000000-03312949
  • 21
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    SERIAL 00000000-03312949
    FITTING, GREASE - SWIVEL BRACKET
    SERIAL 00000000-03312949
  • 22
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    SERIAL 00000000-03312949
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
    SERIAL 00000000-03312949
  • 23
    39307 PLATE, CLAMP - CO-PILOT
    SERIAL 00000000-03312949
    PLATE, CLAMP - CO-PILOT
    SERIAL 00000000-03312949
  • 24
    10-56784 SCREW, CLAMP PLATE TO SWIVEL BRACKET (1")
    SERIAL 00000000-03312949
    SCREW, CLAMP PLATE TO SWIVEL BRACKET (1")
    SERIAL 00000000-03312949
  • 19
    1461-6667A1 SWIVEL BRACKET ASSEMBLY
    SERIAL 03312950-09999999
    SWIVEL BRACKET ASSEMBLY
    SERIAL 03312950-09999999
  • 20
    25-29845 "O" RING, SWIVEL BRACKET
    SERIAL 03312950-09999999
    "O" RING, SWIVEL BRACKET
    SERIAL 03312950-09999999
  • 21
    22-74036 FITTING, GREASE
    SERIAL 03312950-09999999
    FITTING, GREASE
    SERIAL 03312950-09999999
  • 22
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    SERIAL 03312950-09999999
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
    SERIAL 03312950-09999999
  • 23
    73014A1 PLATE, CLAMP - CO-PILOT
    SERIAL 03312950-09999999
    PLATE, CLAMP - CO-PILOT
    SERIAL 03312950-09999999
  • 24
    10-62055 SCREW, PLATE TO SWIVEL BRACKET (1 1/4")
    SERIAL 95033129-09999999
    SCREW, PLATE TO SWIVEL BRACKET (1 1/4")
    SERIAL 95033129-09999999
  • 25
    12-56720 WASHER, CLAMP PLATE SCREW
    SERIAL 03312950-09999999
    WASHER, CLAMP PLATE SCREW
    SERIAL 03312950-09999999
  • 26
    20203 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
    DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
  • 27
    38-56745 SERIAL PLATE
    SERIAL PLATE
  • 28
    10-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 29
    63310A1 LEVER, TILT STOP
    LEVER, TILT STOP
  • 30
    10-29237 SCREW, RETAINING - LEVER TO SWIVEL BRACKET
    SCREW, RETAINING - LEVER TO SWIVEL BRACKET
  • 31
    13-36076 WASHER, WAVE - TILT STOP LEVER SCREW
    WASHER, WAVE - TILT STOP LEVER SCREW
  • 32
    15-37711020 SHIM, RETAINING SCREW
    SHIM, RETAINING SCREW
  • 33
    11-20184 NUT, TILT STOP LEVER SCREW
    NUT, TILT STOP LEVER SCREW
  • 34
    10-27791 SCREW, ANCHOR - TILT STOP LEVER
    SCREW, ANCHOR - TILT STOP LEVER
  • 35
    61012 LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
  • 36
    26092 ROD, REVERSE LOCK LEVER
    ROD, REVERSE LOCK LEVER
  • 37
    23-26841 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
  • 38
    18-45882 COTTER PIN, REVERSE LOCK LEVER TO ROD
    COTTER PIN, REVERSE LOCK LEVER TO ROD
  • 39
    61007 RETAINER, ROD - REVERSE LOCK
    RETAINER, ROD - REVERSE LOCK
