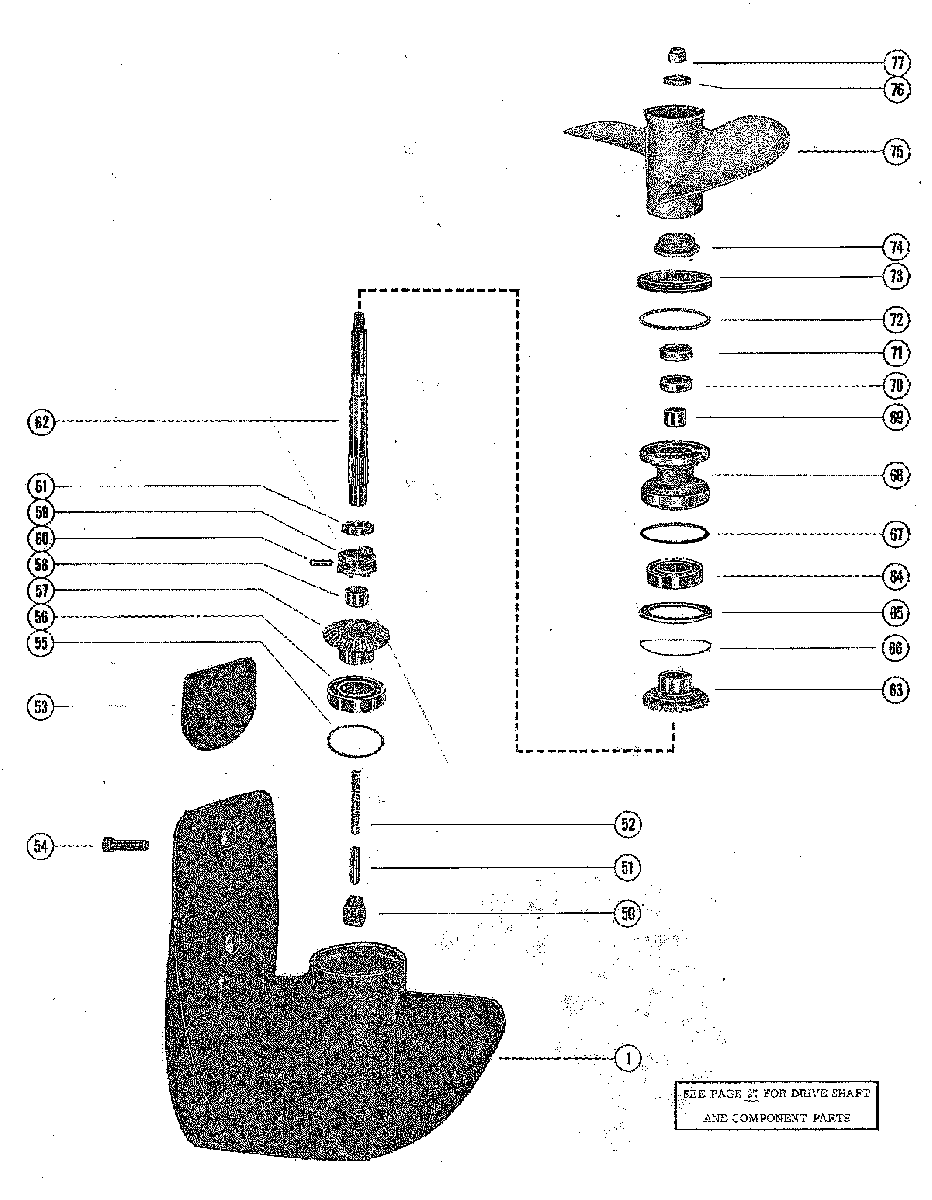

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 200 3226958 THRU 3537530

  • №
    Артикул
    Название
  • 1627-6006A3 GEAR HOUSING ASSEMBLY COMPLETE (SHORT SHAFT)
    A-1627-4404A4 AND 1-1627-4404A5, GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU REFERENCE #73.
    GEAR HOUSING ASSEMBLY COMPLETE (SHORT SHAFT)
    A-1627-4404A4 AND 1-1627-4404A5, GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU REFERENCE #73.
  • 1627-6006A4 GEAR HOUSING ASSEMBLY COMPLETE (LONG SHAFT)
    A-1627-4404A4 AND 1-1627-4404A5, GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU REFERENCE #73.
    GEAR HOUSING ASSEMBLY COMPLETE (LONG SHAFT)
    A-1627-4404A4 AND 1-1627-4404A5, GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU REFERENCE #73.
  • 1627-6006A5 GEAR HOUSING ASSEMBLY
    SEE PAGE Gear Housing Assembly, Complete (Page1) section.
    GEAR HOUSING ASSEMBLY
    SEE PAGE Gear Housing Assembly, Complete (Page1) section.
  • 1627-6006A5 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 50
    58975 CAM, SHIFT
    CAM, SHIFT
  • 51
    33438 FOLLOWER, CAM
    FOLLOWER, CAM
  • 52
    24-88435 SPRING, CAM FOLLOWER
    SPRING, CAM FOLLOWER
  • 53
    97-47820A1 PLATE ASSEMBLY, ANADOC - GEAR HOUSING
    PLATE ASSEMBLY, ANADOC - GEAR HOUSING
  • 54
    10-47819 SCREW, ANODIC PLATE TO GEAR HOUSING (1 1/4")
    SCREW, ANODIC PLATE TO GEAR HOUSING (1 1/4")
  • 55
    15-20788A1 SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)
  • 55
    30-25398 (#30-25398)
    (#30-25398)
  • 56
    30-25398 BEARING, BALL - FORWARD GEAR
    BEARING, BALL - FORWARD GEAR
  • 57
    43-45227A5 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 58
    31-28157 BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 59
    52-53518A1 RATCHET ASSEMBLY, SLIDING CLUTCH
    RATCHET ASSEMBLY, SLIDING CLUTCH
  • 60
    17-53372 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 61
    24-53373 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 62
    44-75366A2 PROPELLER SHAFT ASSEMBLY INCLUDES REF #74 ------ A-23-34237
    PROPELLER SHAFT ASSEMBLY INCLUDES REF #74 ------ A-23-34237
  • 63
    43-45229 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 64
    30-25398 BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 65
    12-33434 WASHER, THRUST - REVERSE GEAR
    WASHER, THRUST - REVERSE GEAR
  • 66
    15-33431A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
    SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
  • 67
    25-33465 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 68
    33402T4 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 69
    31-28157 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 70
    26-27163 OIL SEAL, BEARING CARRIER (SPRING LOADED)
    OIL SEAL, BEARING CARRIER (SPRING LOADED)
  • 71
    26-26805 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 72
    12-33432 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 73
    33410 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 74
    23-85964A1 COLLAR, GUIDE - PROPELLER SHAFT
    PART OF PROPELLER SHAFT ASSEMBLY
    COLLAR, GUIDE - PROPELLER SHAFT
    PART OF PROPELLER SHAFT ASSEMBLY
  • 75
    48-33480A1 PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 11" PITCH)
    SHIPPED WITH ENGINE FROM FACTORY
    PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 11" PITCH)
    SHIPPED WITH ENGINE FROM FACTORY
  • 75
    48-34402A1 PROPELLER ASSEMBLY (2 BLADE - BRONZE - 11" PITCH)
    PROPELLER ASSEMBLY (2 BLADE - BRONZE - 11" PITCH)
  • 75
    48-86962A4 PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 9" PITCH)
    PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 9" PITCH)
  • 75
    48-37316A1 PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 7" PITCH)
    PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 7" PITCH)
  • 76
    11-64075A1 SPACER, SPLINE - PROPELLER SHAFT
    SPACER, SPLINE - PROPELLER SHAFT
  • 77
    11-34933 NUT, PROPELLER RETAINING
    NUT, PROPELLER RETAINING
