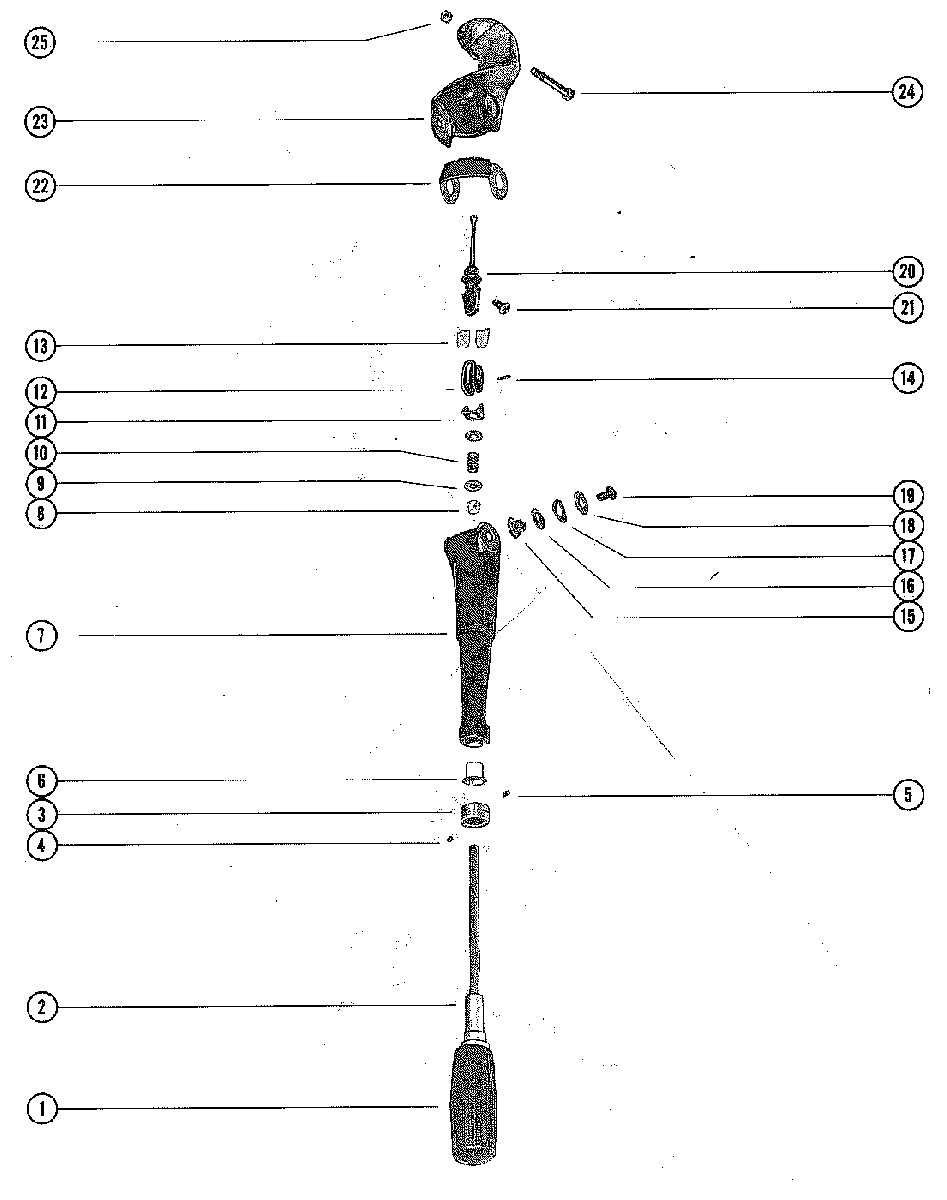

STEERING HANDLE ASSEMBLY для Mercury - 200 1866496 THRU 2296266

  • №
    Артикул
    Название
  • 33405A4 STEERING HANDLE ASSEMBLY, COMPLETE
    STEERING HANDLE ASSEMBLY, COMPLETE
  • 1
    27763 GRIP, RUBBER - STEERING HANDLE BODY
    GRIP, RUBBER - STEERING HANDLE BODY
  • 2
    39352 BODY AND SHAFT, STEERING HANDLE
    BODY AND SHAFT, STEERING HANDLE
  • 3
    31001 INDICATOR, SPEED AND SHIFT - STEERING HANDLE
    INDICATOR, SPEED AND SHIFT - STEERING HANDLE
  • 4
    10-31002 SCREW, SET - SPEED AND SHIFT INDICATOR
    SCREW, SET - SPEED AND SHIFT INDICATOR
  • 5
    10-22290 SCREW, DRIVE - INDICATOR TO STEERING HANDLE BODY
    SCREW, DRIVE - INDICATOR TO STEERING HANDLE BODY
  • 6
    23-30677 BUSHING, NYLON - STEERING HANDLE TO BODY
    BUSHING, NYLON - STEERING HANDLE TO BODY
  • 7
    49557A4 STEERING HANDLE ASSEMBLY
    STEERING HANDLE ASSEMBLY
  • 8
    23-28100 BUSHING, NYLON - STEERING HANDLE
    BUSHING, NYLON - STEERING HANDLE
  • 9
    12-30283 WASHER, STEERING HANDLE SHAFT
    WASHER, STEERING HANDLE SHAFT
  • 10
    24-26703 SPRING, STEERING HANDLE SHAFT
    SPRING, STEERING HANDLE SHAFT
  • 11
    39211 RETAINER, YOKE PIN HOLDING
    RETAINER, YOKE PIN HOLDING
  • 12
    39208 YOKE, STEERING HANDLE SHAFT
    YOKE, STEERING HANDLE SHAFT
  • 13
    39210 PLATE, NYLON - THROTTLE CONTROL SHAFT
    PLATE, NYLON - THROTTLE CONTROL SHAFT
  • 14
    17-26862 PIN, YOKE TO STEERING HANDLE SHAFT
    PIN, YOKE TO STEERING HANDLE SHAFT
  • 15
    39218 PIVOT, STEERING HANDLE TO BRACKET
    PIVOT, STEERING HANDLE TO BRACKET
  • 16
    15-26707 SHIM, STEERING HANDLE PIVOT TO BRACKET
    SHIM, STEERING HANDLE PIVOT TO BRACKET
  • 17
    13-39227 WASHER, WAVE - STEERING HANDLE PIVOT TO BRACKET
    WASHER, WAVE - STEERING HANDLE PIVOT TO BRACKET
  • 18
    13-39228 LOCKWASHER, STEERING HANDLE SCREW
    LOCKWASHER, STEERING HANDLE SCREW
  • 19
    10-96138 SCREW, STEERING HANDLE TO ARM BRACKET
    SCREW, STEERING HANDLE TO ARM BRACKET
  • 20
    39631A1 THROTTLE CONTROL SHAFT ASSEMBLY
    THROTTLE CONTROL SHAFT ASSEMBLY
  • 21
    10-96138 SCREW, THROTTLE CONTROL SHAFT TO BRACKET (1/2")
    SCREW, THROTTLE CONTROL SHAFT TO BRACKET (1/2")
  • 22
    39185 SHIELD, STEERING HANDLE
    SHIELD, STEERING HANDLE
  • 23
    39302T BRACKET, STEERING ARM
    BRACKET, STEERING ARM
  • 24
    10-53460 SCREW, STEERING ARM BRACKET TO SADDLE
    SCREW, STEERING ARM BRACKET TO SADDLE
  • 25
    11-29250 NUT, STEERING ARM BRACKET FASTENING SCREW
    NUT, STEERING ARM BRACKET FASTENING SCREW
