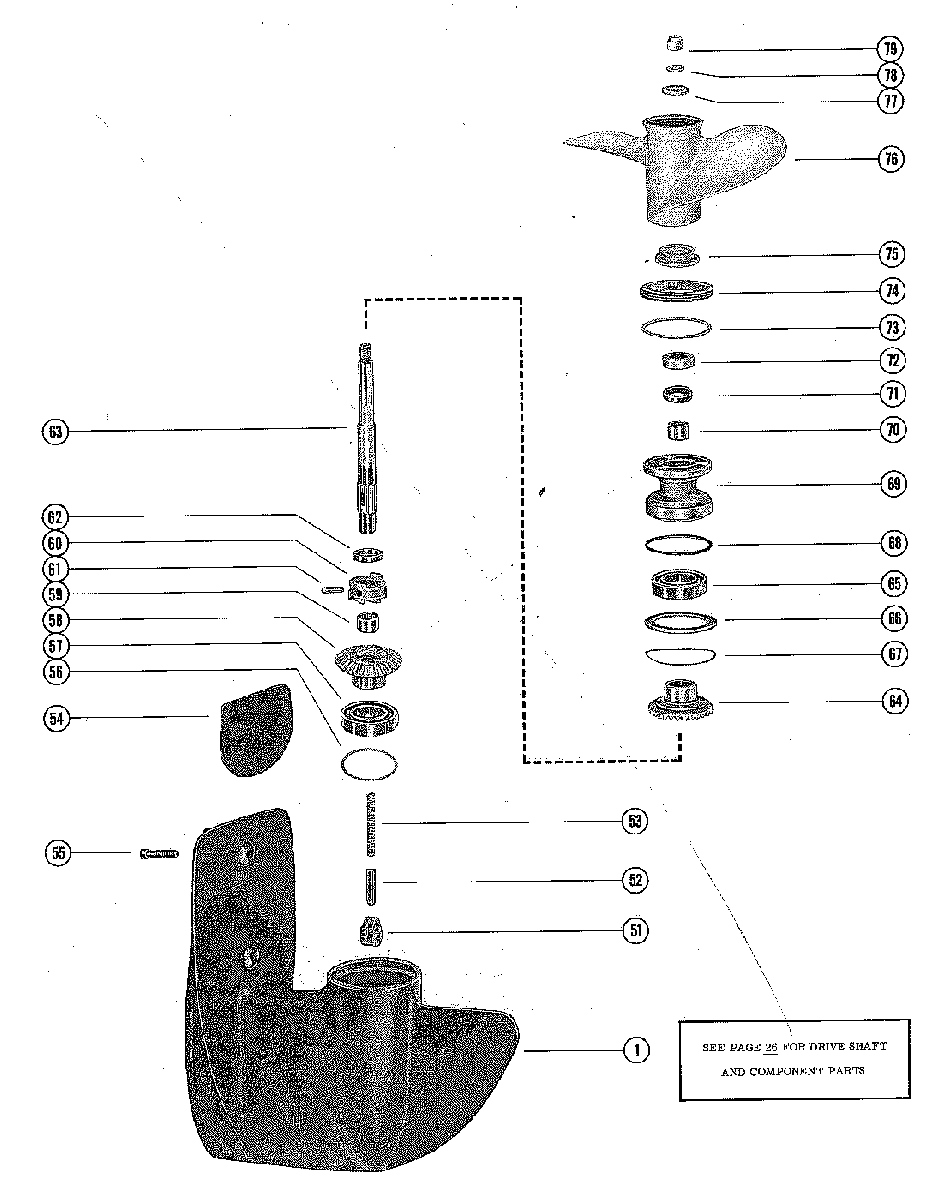

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 200 1866496 THRU 2296266

  • №
    Артикул
    Название
  • 1627-3482A13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELOW
  • 1627-3482A14 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW
  • 1627-3482A13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)SEE NOT BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)SEE NOT BELOW
  • 1627-3482A14 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW
  • 1
    1627-2964A5 GEAR HOUSING ASSEMBLY SEE PAGE 26 FOR PARTS BREAKDOWN
    GEAR HOUSING ASSEMBLY SEE PAGE 26 FOR PARTS BREAKDOWN
  • 1
    1627-2964A1 GEAR HOUSING ASSEMBLY SEE PAGE 26 FOR PARTS BREAKDOWN
    GEAR HOUSING ASSEMBLY SEE PAGE 26 FOR PARTS BREAKDOWN
  • 51
    33436 CAM, SHIFT
    CAM, SHIFT
  • 52
    33438 FOLLOWER, CAM
    FOLLOWER, CAM
  • 53
    24-88435 SPRING, CAM FOLLOWER
    SPRING, CAM FOLLOWER
  • 54
    97-47820A1 PLATE, ANODIC - GEAR HOUSING
    PLATE, ANODIC - GEAR HOUSING
  • 55
    10-29081 SCREW, ANODIC PLATE TO GEAR HOUSING (1 1/4")
    SCREW, ANODIC PLATE TO GEAR HOUSING (1 1/4")
  • 56
    15-20788A1 SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)
  • 56
    43-45227A3 FORWARD GEAR ASSEMBLY, COMPLETE
    FORWARD GEAR ASSEMBLY, COMPLETE
  • 57
    30-25398 BEARING, BALL - FORWARD GEAR
    BEARING, BALL - FORWARD GEAR
  • 58
    43-45227A3 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 59
    31-28157 BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 60
    43-45227A3 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 61
    17-33433 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 62
    53-33430 RING, RETAINING - CROSS PIN
    RING, RETAINING - CROSS PIN
  • 63
    44-75366A2 PROPELLER SHAFT ASSEMBLY
    PROPELLER SHAFT ASSEMBLY
  • 63
    43-45227A3 REVERSE GEAR ASSEMBLY, COMPLETE
    REVERSE GEAR ASSEMBLY, COMPLETE
  • 64
    43-45227A3 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 65
    30-25398 BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 66
    12-33434 WASHER, THRUST - REVERSE GEAR
    WASHER, THRUST - REVERSE GEAR
  • 67
    15-33431A1 SHIM, THRUST WASHER TO GEAR HOUSING (.00A2-3-5-10)
    SHIM, THRUST WASHER TO GEAR HOUSING (.00A2-3-5-10)
  • 68
    25-33465 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 69
    33402T4 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 70
    31-28157 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 71
    26-27163 OIL SEAL, BEARING CARRIER (SPRING LOADED)
    OIL SEAL, BEARING CARRIER (SPRING LOADED)
  • 72
    26-26805 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 73
    12-33432 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 74
    33410 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 75
    23-85964A1 COLLAR, GUIDE - PROPELLER SHAFT
    COLLAR, GUIDE - PROPELLER SHAFT
  • 76
    48-33480A1 PROPELLER ASSEMBLY(2 BLADE - ALUMINUM - 11"PITCH)
    PROPELLER ASSEMBLY(2 BLADE - ALUMINUM - 11"PITCH)
  • 76
    48-34402A1 PROPELLER ASSEMBLY (2 BLADE - BRONZE - 11" PITCH)
    PROPELLER ASSEMBLY (2 BLADE - BRONZE - 11" PITCH)
  • 76
    48-86962A4 PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 9" PITCH)
    PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 9" PITCH)
  • 76
    48-37316A1 PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 7" PITCH)
    PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 7" PITCH)
  • 77
    11-64075A1 SPACER, SPLINE - PROPELLER SHAFT
    SPACER, SPLINE - PROPELLER SHAFT
  • 78
    12-27025 WASHER, PROPELLER NUT
    WASHER, PROPELLER NUT
  • 79
    11-34933 NUT, PROPELLER RETAINING
    NUT, PROPELLER RETAINING
  • 79
    11-34933 NUT, PROPELLER RETAINING
    NUT, PROPELLER RETAINING
