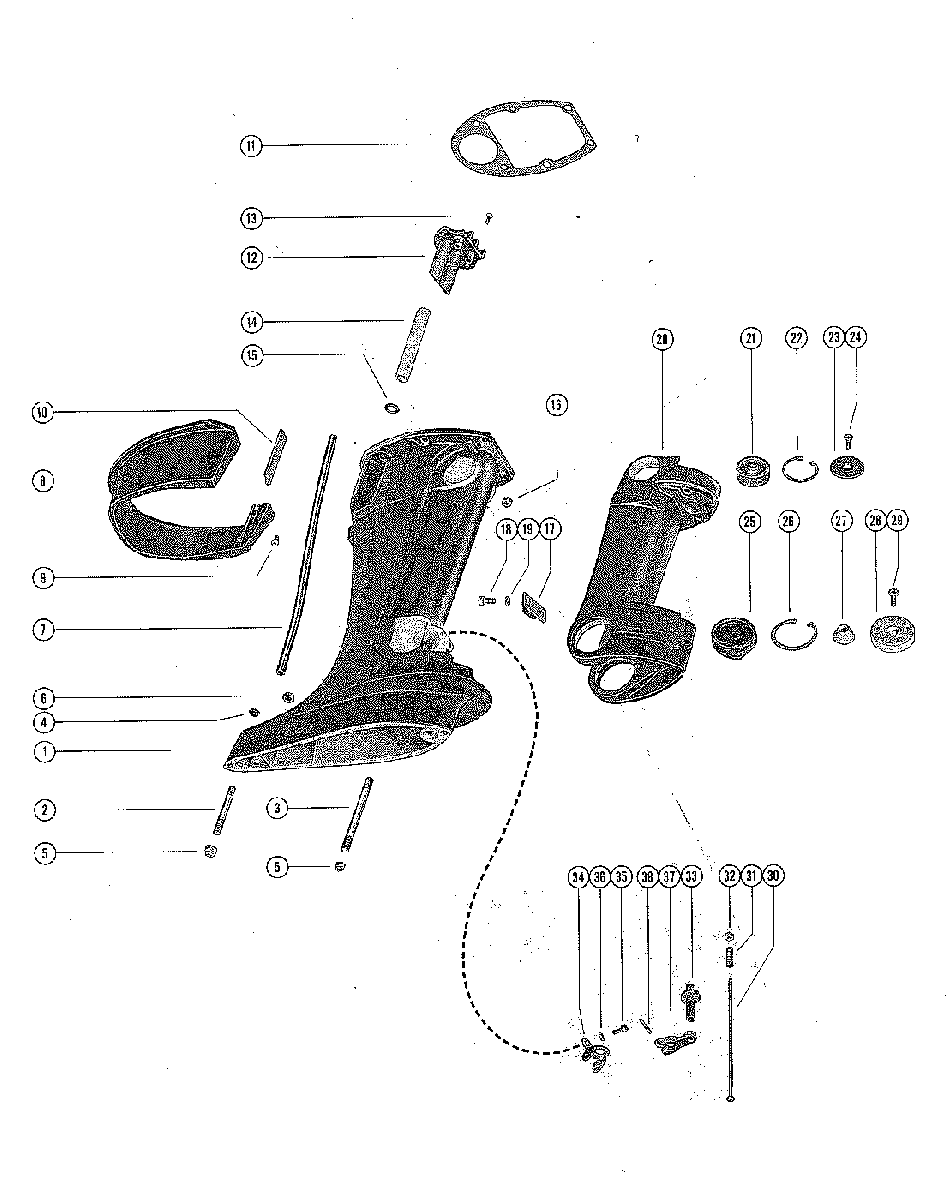

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 200 1866496 THRU 2296266

  • №
    Артикул
    Название
  • 1
    1561-2672A4 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
  • 1
    1560-2671A2 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
  • 1
    1561-2672A4 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
  • 1
    1560-2671A2 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
  • 2
    16-33469 STUD, DRIVE SHAFT HSG. TO GEAR HSG. (2 11/16")
    STUD, DRIVE SHAFT HSG. TO GEAR HSG. (2 11/16")
  • 2
    16-34378 STUD, DRIVE SHAFT HSG. TO GEAR HSG. (2 5/16")
    STUD, DRIVE SHAFT HSG. TO GEAR HSG. (2 5/16")
  • 3
    16-33470 STUD, DRIVE SHAFT HSG. TO GEAR HSG. (3 15/16")
    STUD, DRIVE SHAFT HSG. TO GEAR HSG. (3 15/16")
  • 4
    19-32298 PLUG, DRIVE SHAFT HOUSING
    PLUG, DRIVE SHAFT HOUSING
  • 5
    11-82670911 NUT, DRIVE SHAFT HOUSING STUD
    NUT, DRIVE SHAFT HOUSING STUD
  • 6
    11-8M0042636 NUT, GEAR HOUSING TO DRIVE SAHFT HOUSING STUD
    NUT, GEAR HOUSING TO DRIVE SAHFT HOUSING STUD
  • 7
    32-39586 TUBE, WATER OUTLET (SHORT SHAFT)
    TUBE, WATER OUTLET (SHORT SHAFT)
  • 7
    32-39587 TUBE, WATER OUTLET (LONG SHAFT)
    TUBE, WATER OUTLET (LONG SHAFT)
  • 8
    39301 COVER, TRIM - DRIVE SHAFT HOUSING
    COVER, TRIM - DRIVE SHAFT HOUSING
  • 9
    10-35012 SCREW, TRIM COVER TO BOTTOM COWL (5/8")
    SCREW, TRIM COVER TO BOTTOM COWL (5/8")
  • 10
    39353 SEAL, RUBBER - TRIM COVER
    SEAL, RUBBER - TRIM COVER
  • 11
    27-39402 GASKET, MOUNTING PLATE TO DRIVE SHAFT HOUSING
    GASKET, MOUNTING PLATE TO DRIVE SHAFT HOUSING
  • 12
    39492 PLATE, IDLE RELIEF
    PLATE, IDLE RELIEF
  • 13
    10-35519 SCREW, IDLE RELIEF PLATE TO DRIVE SHAFT HOUSING
    SCREW, IDLE RELIEF PLATE TO DRIVE SHAFT HOUSING
  • 14
    32-45054 TUBE, NYLON - IDLE RELIEF PLATE
    TUBE, NYLON - IDLE RELIEF PLATE
  • 15
    25-201951 "O" RING, IDLE RELIEF TUBE
    "O" RING, IDLE RELIEF TUBE
  • 16
    11-29250 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 17
    33420 BUMPER, RUBBER - SADDLE
    BUMPER, RUBBER - SADDLE
  • 18
    10-31716 SCREW, RUBBER BUMPER TO SADDLE (5/8")
    SCREW, RUBBER BUMPER TO SADDLE (5/8")
  • 19
    13-26992 LOCKWASHER, RUBBER BUMPER SCREW
    LOCKWASHER, RUBBER BUMPER SCREW
  • 20
    1562-7098A1 SADDLE
    SADDLE
  • 21
    85003 MOUT, RUBBER - UPPER (SHORT SHAFT)
    MOUT, RUBBER - UPPER (SHORT SHAFT)
  • 21
    85002 MOUNT, RUBBER - UPPER (LONG SHAFT)
    MOUNT, RUBBER - UPPER (LONG SHAFT)
  • 22
    53-23720 RING, RETAINING - UPPER MOUNT
    RING, RETAINING - UPPER MOUNT
  • 23
    39481 COVER, UPPER MOUNT
    COVER, UPPER MOUNT
  • 24
    10-39669 SCREW, UPPER MOUNT COVER FASTENING
    SCREW, UPPER MOUNT COVER FASTENING
  • 25
    79948A1 MOUNT, RUBBER - LOWER (SHORT SHAFT)
    MOUNT, RUBBER - LOWER (SHORT SHAFT)
  • 25
    79947A1 MOUNT, RUBBER - LOWER (LONG SHAFT)
    MOUNT, RUBBER - LOWER (LONG SHAFT)
  • 26
    53-8M0051043 RING, RETAINING - LOWER MOUNT
    RING, RETAINING - LOWER MOUNT
  • 27
    23-31270 SPACER, LOWER MOUNT COVER
    SPACER, LOWER MOUNT COVER
  • 28
    47943 COVER, LOWER MOUNT
    COVER, LOWER MOUNT
  • 28
    47943 COVER, LOWER MOUNT
    COVER, LOWER MOUNT
  • 29
    10-33726 SCREW, LOWER MOUNT COVER FASTENING
    SCREW, LOWER MOUNT COVER FASTENING
  • 30
    33495 LINK ROD, REVERSE LOCK
    LINK ROD, REVERSE LOCK
  • 31
    24-33413 SPRING, TENSION - REVERSE LOCK LINK ROD
    SPRING, TENSION - REVERSE LOCK LINK ROD
  • 32
    11-57146 NUT, REVERSE LOCK LINK ROD
    NUT, REVERSE LOCK LINK ROD
  • 33
    39241A1 CAM COUPLING ASSEMBLY, SHIFT SHAFT
    CAM COUPLING ASSEMBLY, SHIFT SHAFT
  • 34
    35653 RETAINER, REVERSE LOCK CAM
    RETAINER, REVERSE LOCK CAM
  • 35
    10-20540 SCREW, CAM RETAINER TO DRIVE SHAFT HOUSING
    SCREW, CAM RETAINER TO DRIVE SHAFT HOUSING
  • 36
    13-26992 LOCKWASHER, CAM RETAINER SCREW
    LOCKWASHER, CAM RETAINER SCREW
  • 37
    33407 LEVER, REVERSE LOCK CAM
    LEVER, REVERSE LOCK CAM
  • 38
    17-58998 PIN, TOLL - CAM LEVER TO RETAINER
    PIN, TOLL - CAM LEVER TO RETAINER
