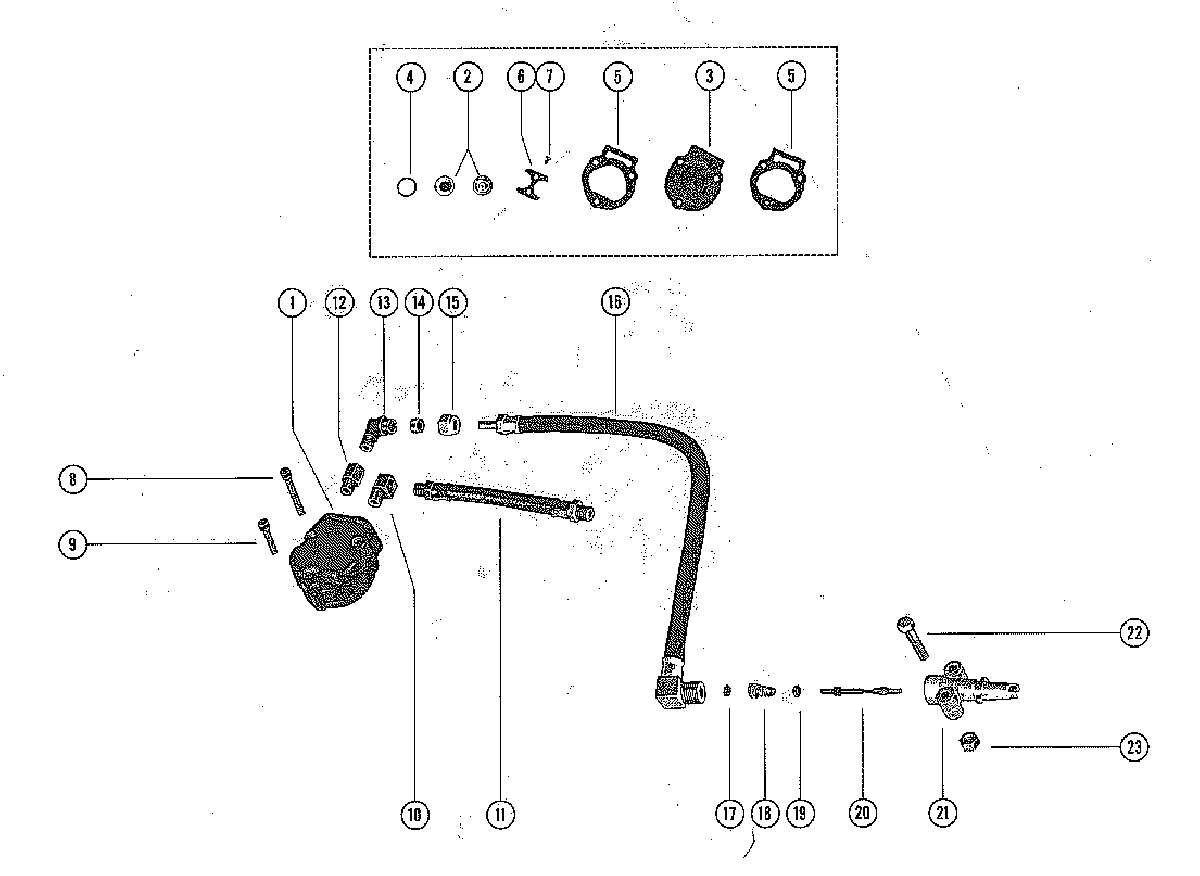

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 200 1866496 THRU 2296266

  • №
    Артикул
    Название
  • 1
    39654A2 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-30430A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    23014A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 4
    90-8M0143356 GASKET, CHECK VALVE TO FUEL PUMP
    GASKET, CHECK VALVE TO FUEL PUMP
  • 5
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 6
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 7
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 8
    10-29246 SCREW, FUEL PUMP TO CYLINDER BLOCK (1 5/8")
    SCREW, FUEL PUMP TO CYLINDER BLOCK (1 5/8")
  • 9
    10-28712 SCREW, FUEL PUMP TO CYLINDER BLOCK (1 5/8")
    SCREW, FUEL PUMP TO CYLINDER BLOCK (1 5/8")
  • 10
    22-59351 FITTING, FUEL PUMP OUTLET
    FITTING, FUEL PUMP OUTLET
  • 11
    32-30040 FUEL LINE, FUEL PUMP TO CARBURETOR (5 1/4")
    FUEL LINE, FUEL PUMP TO CARBURETOR (5 1/4")
  • 12
    22-45089 ADAPTOR, FUEL PUMP INLET
    ADAPTOR, FUEL PUMP INLET
  • 13
    22-22995 FITTING, FUEL PUMP INLET ADAPTOR TO FUEL LINE
    FITTING, FUEL PUMP INLET ADAPTOR TO FUEL LINE
  • 14
    22-22946 SLEEVE, RUBBER - FUEL PUMP INLET FITTING
    SLEEVE, RUBBER - FUEL PUMP INLET FITTING
  • 15
    22-22948 NUT, FUEL PUMP INLET FITTING
    NUT, FUEL PUMP INLET FITTING
  • 16
    32-33475 FUEL LINE, FUEL PUMP TO ADAPTOR (22 1/2")
    FUEL LINE, FUEL PUMP TO ADAPTOR (22 1/2")
  • 17
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 18
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 19
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 20
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 21
    22833 ADAPTOR, CHECK UNIT
    ADAPTOR, CHECK UNIT
  • 22
    10-20784 SCREW, CHECK UNIT ADAPTOR TO BOTTOM COWL (1 1/2")
    SCREW, CHECK UNIT ADAPTOR TO BOTTOM COWL (1 1/2")
  • 23
    11-8267089 NUT, CHECK UNIT ADAPTOR SCREW
    NUT, CHECK UNIT ADAPTOR SCREW
