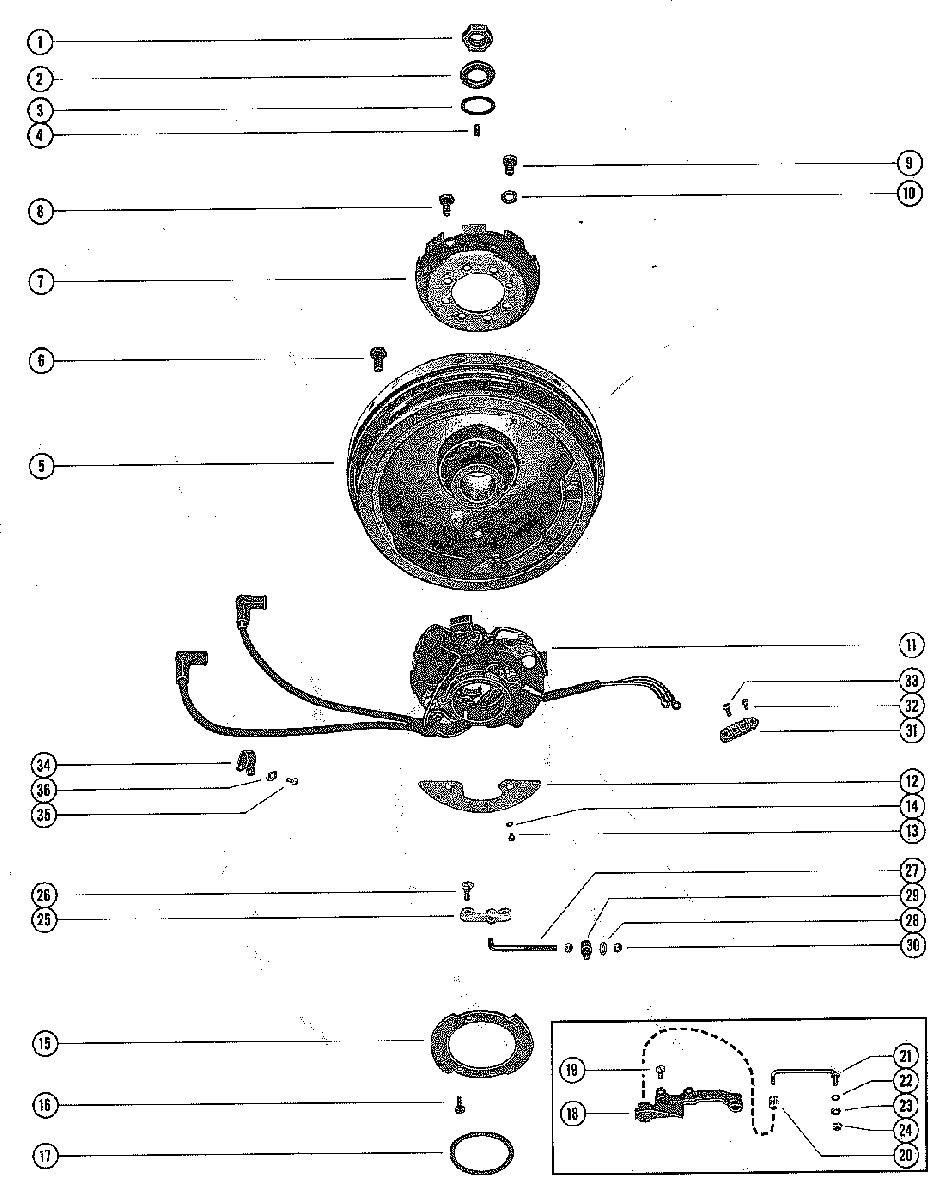

FLYWHEEL ASSEMBLY AND THROTTLE CONTROL LINKAGE для Mercury - 200 1866496 THRU 2296266
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-36281 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
325-37340 "O" RING, FLYWHEEL HUB"O" RING, FLYWHEEL HUB
-
428-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
5221-2297A1 FLYWHEEL ASSEMBLY, COMPLETEFLYWHEEL ASSEMBLY, COMPLETE
-
610-35563 SCREW, FLEXIBLE PLATE TO FLYWHEELSCREW, FLEXIBLE PLATE TO FLYWHEEL
-
750-33000A1 RATCHET ASSEMBLY, FLYWHEELRATCHET ASSEMBLY, FLYWHEEL
-
810-32417 SCREW, RATCHET TO FLYWHEELSCREW, RATCHET TO FLYWHEEL
-
910-34290 SCREW, RATCHET TO FLYWHEELSCREW, RATCHET TO FLYWHEEL
-
1013-26992 LOCKWASHER, RATCHET TO FLYWHEEL SCREWLOCKWASHER, RATCHET TO FLYWHEEL SCREW
-
11398-3297A1 STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)
-
1235599A1 SHIELD ASSEMBLY, LEAD WIRE - STATOR PLATESHIELD ASSEMBLY, LEAD WIRE - STATOR PLATE
-
1310-45742 SCREW, LEAD WIRE SHIELD TO STATOR PLATESCREW, LEAD WIRE SHIELD TO STATOR PLATE
-
1413-26996 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
1534601 RING, HOLD DOWN - STATOR PLATERING, HOLD DOWN - STATOR PLATE
-
1610-35400 SCREW, HOLD DOWN RING TO STATOR PLATESCREW, HOLD DOWN RING TO STATOR PLATE
-
1715-33910015 SHIM, STATOR PLATE TO CRANKCASE TOPSHIM, STATOR PLATE TO CRANKCASE TOP
-
1839296 CAM, THROTTLE CONTROL - STATOR PLATECAM, THROTTLE CONTROL - STATOR PLATE
-
1910-29722 SCREW, THROTTLE CONTROL CAM TO STATOR PLATESCREW, THROTTLE CONTROL CAM TO STATOR PLATE
-
2046097 SWIVEL, CONTROL LINK TO THROTTLE CONTROL CAMSWIVEL, CONTROL LINK TO THROTTLE CONTROL CAM
-
2139596 LINK, THROTTLE CONTROLLINK, THROTTLE CONTROL
-
2213-27071 WASHER, WAVE - THROTTLE CONTROL LINKWASHER, WAVE - THROTTLE CONTROL LINK
-
2312-26013 WASHER, THROTTLE CONTROL LINKWASHER, THROTTLE CONTROL LINK
-
2411-20110 NUT, THROTTLE CONTROL LINK TO THROTTLE LEVERNUT, THROTTLE CONTROL LINK TO THROTTLE LEVER
-
2546381 BRACKET, STATOR PLATEBRACKET, STATOR PLATE
-
2610-29722 SCREW, BRACKET TO STATOR PLATESCREW, BRACKET TO STATOR PLATE
-
2746407 LONK ROD, THROTTLE CONTROLLONK ROD, THROTTLE CONTROL
-
2812-30164 WASHER, LINK ROD SWIVEL TO THROTTLE LEVERWASHER, LINK ROD SWIVEL TO THROTTLE LEVER
-
2933973 SWIVEL, LINK ROD TO THROTTLE LEVERSWIVEL, LINK ROD TO THROTTLE LEVER
-
3011-859124 NUT, THROTTLE CONTROL LINK RODNUT, THROTTLE CONTROL LINK ROD
-
3130212 TERMINAL BLOCK, STATOR PLATE GROUND LEADSTERMINAL BLOCK, STATOR PLATE GROUND LEADS
-
3210-72169 SCREW,TERMINAL BLOCK TO REAR MOUNTING BRACKETSCREW,TERMINAL BLOCK TO REAR MOUNTING BRACKET
-
3310-62568 SCREW, GROUND LEADS TO TERMINAL BLOCKSCREW, GROUND LEADS TO TERMINAL BLOCK
-
3454-22875 CLIP, STATOR LEADS FASTENINGCLIP, STATOR LEADS FASTENING
-
3510-62568 SCREW, STATOR LEADS FASTENING CLIPSCREW, STATOR LEADS FASTENING CLIP
-
368M0084613 "D" WASHER, STATOR LEADS FASTENING CLIP SCREW"D" WASHER, STATOR LEADS FASTENING CLIP SCREW
