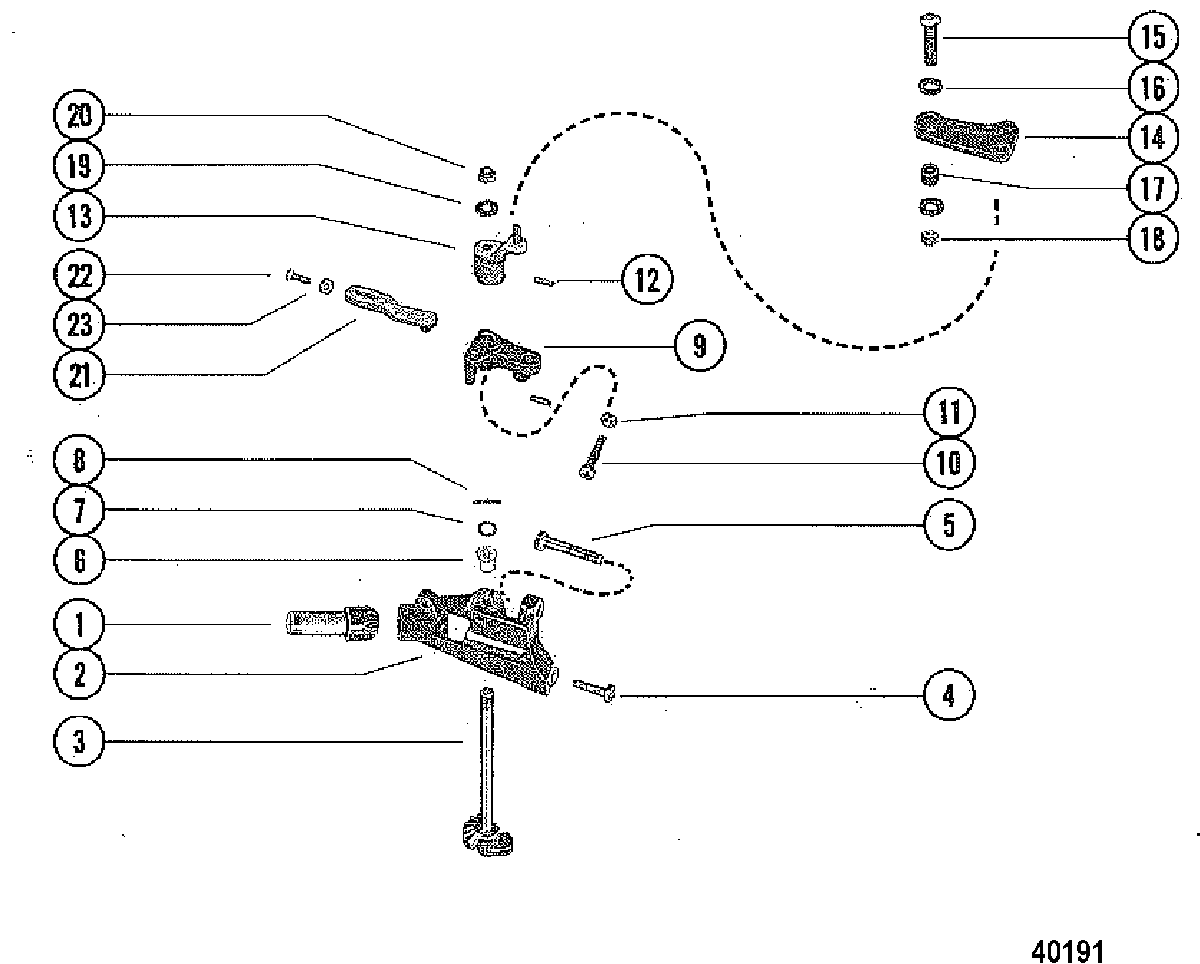

THROTTLE CONTROL LINKAGE для Mercury - 200, 20 9157230 & Up
-
№АртикулНазвание
-
143-60856 GEAR, PINON - THROTTLE CONTROLGEAR, PINON - THROTTLE CONTROL
-
276357 HOUSING, THROTTLE CONTROLHOUSING, THROTTLE CONTROL
-
343-60863 SHAFT AND GEAR, THROTTLESHAFT AND GEAR, THROTTLE
-
4 & 510-76213 SCREW, (.250-20 x 1.120)SCREW, (.250-20 x 1.120)
-
623-33462 BUSHINGBUSHING
-
712-20086 WASHER, THROTTLE SHAFT AND GEARWASHER, THROTTLE SHAFT AND GEAR
-
817-36325 PIN, THROTTLE SHAFT AND GEARPIN, THROTTLE SHAFT AND GEAR
-
946413 LEVER, Throttle, VERTICAL SHAFTLEVER, Throttle, VERTICAL SHAFT
-
1010-72755 SCREWSCREW
-
1111-29598 NUT, VERTICAL SHAFT THROTTLE LEVER SCREWNUT, VERTICAL SHAFT THROTTLE LEVER SCREW
-
1217-24865 PINPIN
-
1360864 LEVER, STATOR PLATE - VERTICAL SHAFTLEVER, STATOR PLATE - VERTICAL SHAFT
-
1464631 LEVER, STATOR PLATE CONTROLLEVER, STATOR PLATE CONTROL
-
1510-69029 SCREW, (.250-28 x 1.750)SCREW, (.250-28 x 1.750)
-
1612-71055 WASHER, STARTER HOUSING SCREWWASHER, STARTER HOUSING SCREW
-
1723-46406 BUSHING, STATOR PLATE CONTROL LEVERBUSHING, STATOR PLATE CONTROL LEVER
-
1811-35888 NUT, (.250-28) Stainless Steel, STARTER HOUSING TO CRANKCASE SCREWNUT, (.250-28) Stainless Steel, STARTER HOUSING TO CRANKCASE SCREW
-
1912-24664 WASHER, (M4 x 20), SHAFT AND GEARWASHER, (M4 x 20), SHAFT AND GEAR
-
2011-826709109 NUT, (.250-28), SHAFT AND GEARNUT, (.250-28), SHAFT AND GEAR
-
2146405 LINK, THROTTLE CLUSTERLINK, THROTTLE CLUSTER
-
2210-69011 SCREW, THROTTLE CLUSTER LINK (7/8")SCREW, THROTTLE CLUSTER LINK (7/8")
-
2311-68219 NUT, (#10-32) Stainless Steel, JAM - THROTTLE CLUSTER LINK SCREWNUT, (#10-32) Stainless Steel, JAM - THROTTLE CLUSTER LINK SCREW
