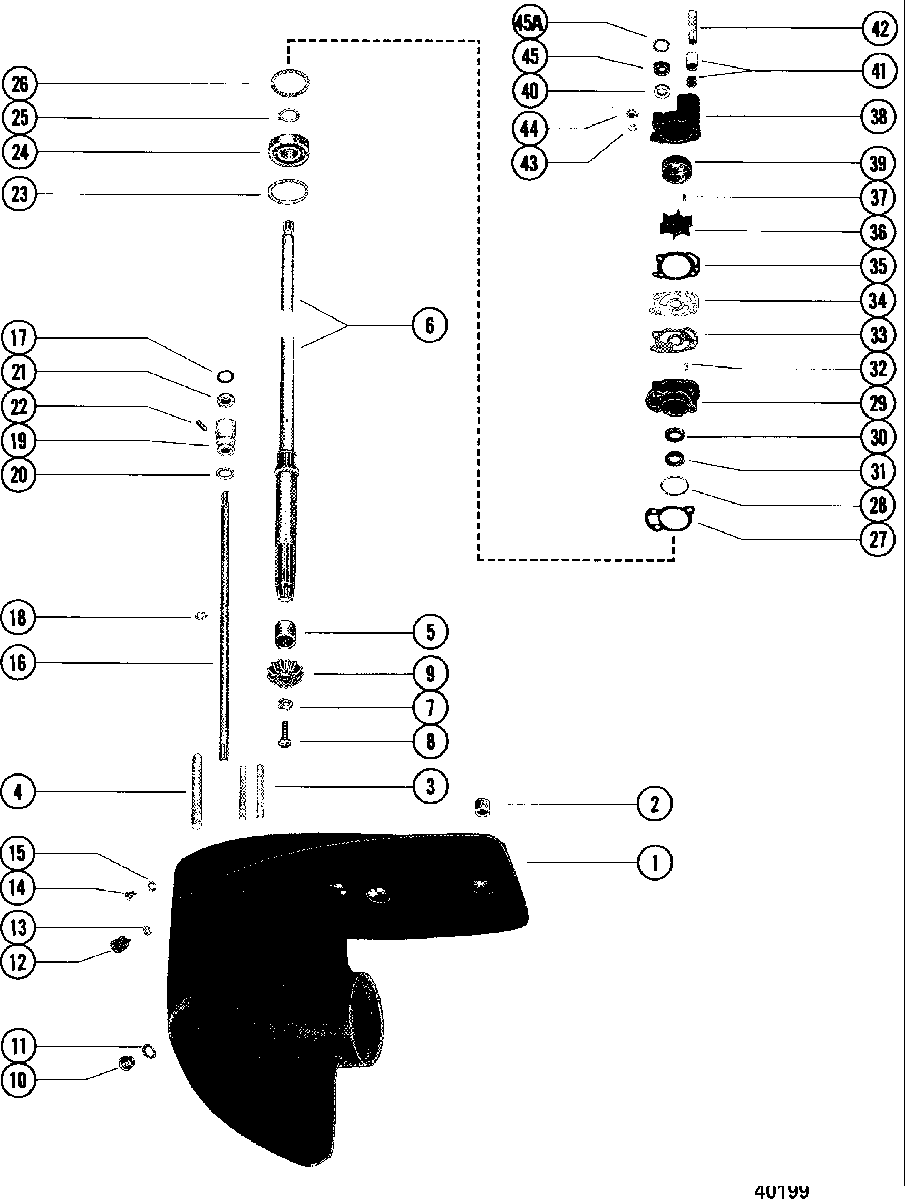

GEAR HOUSING ASSEMBLY, DRIVESHAFT для Mercury - 200, 20 9157230 & Up

  • №
    Артикул
    Название
  • -
    1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
    GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
  • -
    1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
    GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
  • -
    1627-6006A15 GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
    GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
  • -
    1627-6006A16 GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
    GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
  • 1
    1627-6006A5 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    17-20201 PIN
    PIN
  • 3
    16-58137 STUD (3-1/8 INCHES)
    STUD (3-1/8 INCHES)
  • 4
    16-58135 STUD (4-13/16 INCHES)
    STUD (4-13/16 INCHES)
  • 5
    31-28157 BEARING, ROLLER-DRIVESHAFT
    BEARING, ROLLER-DRIVESHAFT
  • 6
    45-93300A1 DRIVESHAFT ASSEMBLY
    (SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
    DRIVESHAFT ASSEMBLY
    (SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
  • 6
    45-93301A1 DRIVESHAFT ASSEMBLY
    (LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
    DRIVESHAFT ASSEMBLY
    (LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
  • 6
    45-88094A1 DRIVESHAFT ASSEMBLY
    (SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
    DRIVESHAFT ASSEMBLY
    (SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
  • 6
    45-88093A1 DRIVESHAFT ASSEMBLY
    (LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
    DRIVESHAFT ASSEMBLY
    (LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
  • 7
    14-49911 TAB WASHER, PINION GEAR SCREW
    TAB WASHER, PINION GEAR SCREW
  • 8
    10-49908 SCREW, (.250-28 x .750)
    SCREW, (.250-28 x .750)
  • 9
    43-45189 GEAR, PINION
    GEAR, PINION
  • 10
    10-79953Q04 SCREW, (.375-16)
    SCREW, (.375-16)
  • 11
    12-191833 WASHER, GREASE FILLER SCREW
    WASHER, GREASE FILLER SCREW
  • 12
    19-48750 PLUG, GEAR HOUSING FLUSHING
    PLUG, GEAR HOUSING FLUSHING
  • 13
    12-49221 WASHER, (.187 x .500 x .062) Neoprene
    WASHER, (.187 x .500 x .062) Neoprene
  • 14
    10-28653 SCREW, (#10-32 x 0.25)
    SCREW, (#10-32 x 0.25)
  • 15
    19643 WASHER, GREASE VENT SCREW
    WASHER, GREASE VENT SCREW
  • 16
    56829A1 SHAFT ASSEMBLY, SHIFT-LOWER
    (SHORT SHAFT)
    SHAFT ASSEMBLY, SHIFT-LOWER
    (SHORT SHAFT)
  • 16
    56830A1 SHAFT ASSEMBLY, SHIFT-LOWER
    (LONG SHAFT)
    SHAFT ASSEMBLY, SHIFT-LOWER
    (LONG SHAFT)
  • 17
    25-38933 O-RING, LOWER SHIFT SHAFT
    O-RING, LOWER SHIFT SHAFT
  • 18
    53-22899 RING, Retaining
    RING, Retaining
  • 19
    23-30676A1 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 20
    25-26802 O-RING, (.424 x .103), SHIFT SHAFT BUSHING
    O-RING, (.424 x .103), SHIFT SHAFT BUSHING
  • 21
    26-30696 SEAL, Oil, SHIFT SHAFT BUSHING
    SEAL, Oil, SHIFT SHAFT BUSHING
  • 22
    10-39149 SCREW, (#10-24 x .500)
    SCREW, (#10-24 x .500)
  • 23
    15-20804A1 SHIM SET, BALL BEARING TO GEAR HOUSIN (.002-3-5-10)
    SHIM SET, BALL BEARING TO GEAR HOUSIN (.002-3-5-10)
  • 24
    30-69389 BEARING, BALL-DRIVESHAFT
    BEARING, BALL-DRIVESHAFT
  • 25
    53-33463 RING, RETAINING-BALL BEARING
    RING, RETAINING-BALL BEARING
  • 26
    15-20804A1 SHIM SET
    SHIM SET
  • 27
    27-39626 GASKET
    GASKET
  • 28
    25-33466 O-RING, WATER PUMP BASE
    O-RING, WATER PUMP BASE
  • 29
    46-48744A1 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 30
    26-20070 SEAL, Oil, WATER PUMP BASE
    SEAL, Oil, WATER PUMP BASE
  • 31
    26-897154 SEAL, Oil, WATER PUMP BASE (SPRING LOADED)
    SEAL, Oil, WATER PUMP BASE (SPRING LOADED)
  • 32
    17-8M0084627 PIN, Dowel
    PIN, Dowel
  • 33
    27-39625 GASKET
    GASKET
  • 34
    39624 PLATE
    PLATE
  • 35
    27-396231 GASKET
    GASKET
  • 36
    47-89982 IMPELLER, Component of Driveshaft Assembly
    IMPELLER, Component of Driveshaft Assembly
  • 37
    28-56661 KEY, Component of Driveshaft Assembly
    KEY, Component of Driveshaft Assembly
  • 38
    46-87458A2 BODY ASSEMBLY, Water Pump
    SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below
    BODY ASSEMBLY, Water Pump
    SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below
  • 38
    46-87458A2 BODY ASSEMBLY, Water Pump
    SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
    BODY ASSEMBLY, Water Pump
    SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
  • 39
    48754 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 40
    26-20070 SEAL, Oil, WATER PUMP BODY
    SEAL, Oil, WATER PUMP BODY
  • 41
    26-33613 SEAL, WATER PUMP BODY
    SEAL, WATER PUMP BODY
  • 41
    23-86215 BEARING, WATER TUBE SEAL
    SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
    BEARING, WATER TUBE SEAL
    SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
  • 42
    23-45170 SLEEVE, GUIDE-WATER INLET TUBE
    SLEEVE, GUIDE-WATER INLET TUBE
  • 43
    12-36001 WASHER, WATER PUMP STUDS
    WASHER, WATER PUMP STUDS
  • 44
    11-82670911 NUT, (.312-24) Stainless Steel, WATER PUMP STUDS
    NUT, (.312-24) Stainless Steel, WATER PUMP STUDS
  • 45
    12-20684 RING
    RING
  • 45A
    25-88198 O-RING, DRIVESHAFT
    SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
    O-RING, DRIVESHAFT
    SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
  • -
    46-48744A3 WATER PUMP ASSEMBLY, Complete
    WATER PUMP ASSEMBLY, Complete
  • -
    26-66303A1 SEAL KIT
    SEAL KIT
