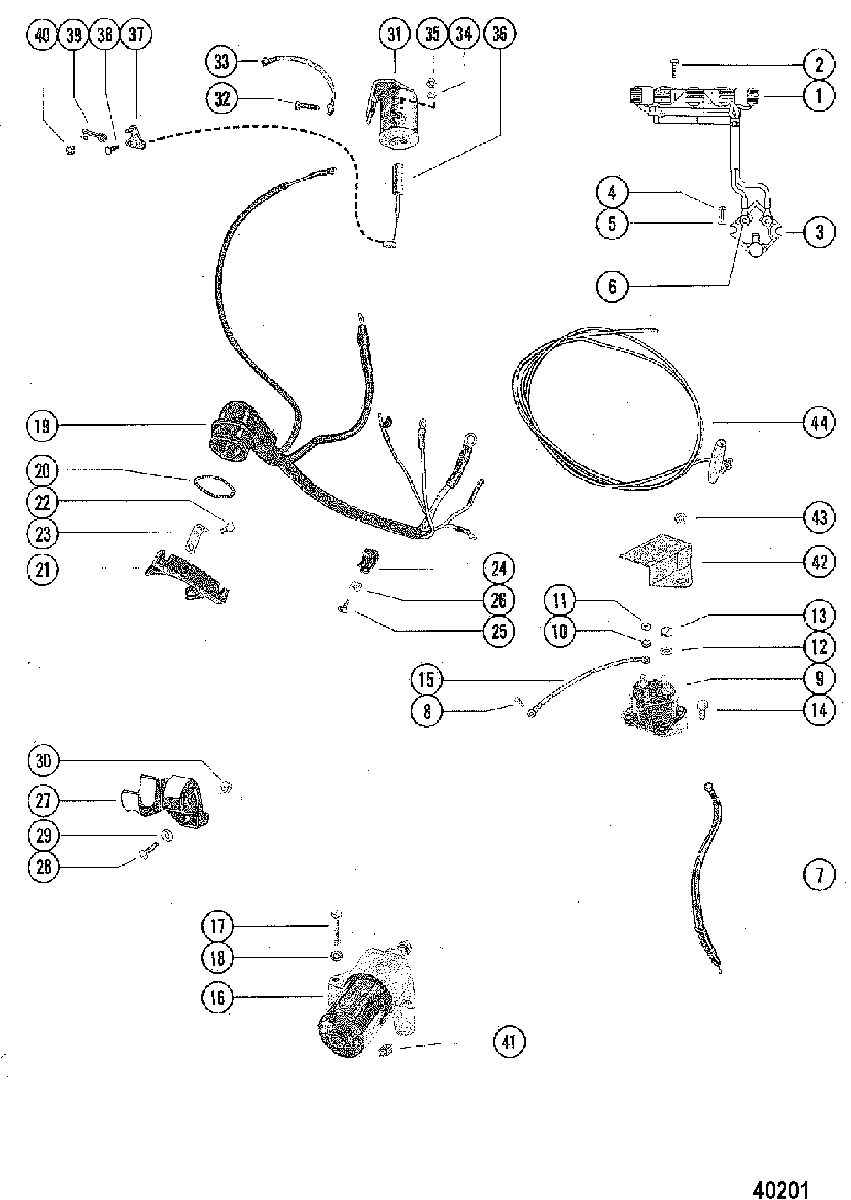

ELECTRIC COMPONENTS для Mercury - 200, 20 9157230 & Up

  • №
    Артикул
    Название
  • 1
    74367A9 LIGHTING STATOR ASSEMBLY
    LIGHTING STATOR ASSEMBLY
  • 2
    10-88447 SCREW, LIGHTING STATOR ATTACHING (1 5/8")
    SCREW, LIGHTING STATOR ATTACHING (1 5/8")
  • 2
    10-66707 SCREW, LIGHTING STATOR ATTACHING (7/8")
    SCREW, LIGHTING STATOR ATTACHING (7/8")
  • 3
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 4
    10-48408 SCREW, (#10-16 x .500), RECTIFIER TO REAR BRACKET
    SCREW, (#10-16 x .500), RECTIFIER TO REAR BRACKET
  • 5
    23-62769 SPACER, RECTIFIER SCREW
    SPACER, RECTIFIER SCREW
  • 6
    11-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALS
    NUT, (#10-32) Brass, RECTIFIER TERMINALS
  • 7
    84-73539A2 WIRE ASSEMBLY
    WIRE ASSEMBLY
  • 8
    10-62568 SCREW, (#10-16 x .375), WIRE TO SWITCH BOX PLATE
    SCREW, (#10-16 x .375), WIRE TO SWITCH BOX PLATE
  • 9
    89-853654A1 SOLENOID, Starter
    SOLENOID, Starter
  • 10
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 11
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 12
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 13
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 14
    10-98256 SCREW, STARTER SOLENOID TO CYLINDER BLOCK
    SCREW, STARTER SOLENOID TO CYLINDER BLOCK
  • 15
    84-65773A2 STRAP ASSEMBLY, Ground
    STRAP ASSEMBLY, Ground
  • 16
    50-76275T STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 17
    10-815549 SCREW, STARTER MOTOR TO CYLINDER BLOCK
    SCREW, STARTER MOTOR TO CYLINDER BLOCK
  • 18
    13-26993 LOCKWASHER, (.312), STARTER MOTOR SCREW
    LOCKWASHER, (.312), STARTER MOTOR SCREW
  • 19
    84-76295A1 HARNESS ASSEMBLY, INTERNAL
    HARNESS ASSEMBLY, INTERNAL
  • 20
    24-28975 SPRING
    SPRING
  • 21
    54-76368 CLAMP
    CLAMP
  • 22
    10-61802 SCREW
    SCREW
  • 23
    54-33361 CLIP
    CLIP
  • 24
    54-23567 CLIP
    CLIP
  • 25
    10-69079 SCREW, (#10-16 x .440)
    SCREW, (#10-16 x .440)
  • 26
    8M0084613 C WASHER, WIRING HARNESS CLAMP
    C WASHER, WIRING HARNESS CLAMP
  • 27
    47951 BRACKET, SUPPORT-EXTERNAL WIRING HARNESS
    BRACKET, SUPPORT-EXTERNAL WIRING HARNESS
  • 28
    10-36137 SCREW, (.250-28 x 1.00)
    SCREW, (.250-28 x 1.00)
  • 29
    12-24664 WASHER, (M4 x 20), WIRING HARNESS SUPORT SCREW
    WASHER, (M4 x 20), WIRING HARNESS SUPORT SCREW
  • 30
    11-20184 NUT, (1/4-28), WIRING HARNESS SUPPORT SCREW
    NUT, (1/4-28), WIRING HARNESS SUPPORT SCREW
  • 31
    54293A10 SOLENOID ASSEMBLY, Choke
    SOLENOID ASSEMBLY, Choke
  • 32
    10-96138 SCREW, (1/4-28 x 5/8)
    SCREW, (1/4-28 x 5/8)
  • 33
    84-60871A14 WIRE ASSEMBLY
    WIRE ASSEMBLY
  • 34
    13-26996 LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
    LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
  • 35
    11-68219 NUT, (#10-32) Stainless Steel, CHOKE SELENOID TERMINAL
    NUT, (#10-32) Stainless Steel, CHOKE SELENOID TERMINAL
  • 36
    56074A10 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 37
    65108 LEVER, CHOKE
    LEVER, CHOKE
  • 38
    10-65109 SCREW, CHOKE LEVER TO CARBURETOR
    SCREW, CHOKE LEVER TO CARBURETOR
  • 39
    65107 LINK, CHOKE
    LINK, CHOKE
  • 40
    11-65110 NUT, LINK TO CHOKE LEVER
    NUT, LINK TO CHOKE LEVER
  • 41
    76534 BUMPER, STARTER MOTOR
    SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
    BUMPER, STARTER MOTOR
    SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
  • 42
    85-78866 INSULATOR
    SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
    INSULATOR
    SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
  • 43
    11-826709106 NUT
    SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
    NUT
    SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
  • 44
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (MANUAL START)
    ROPE AND HANDLE KIT, Manual/Emergency Start (MANUAL START)
