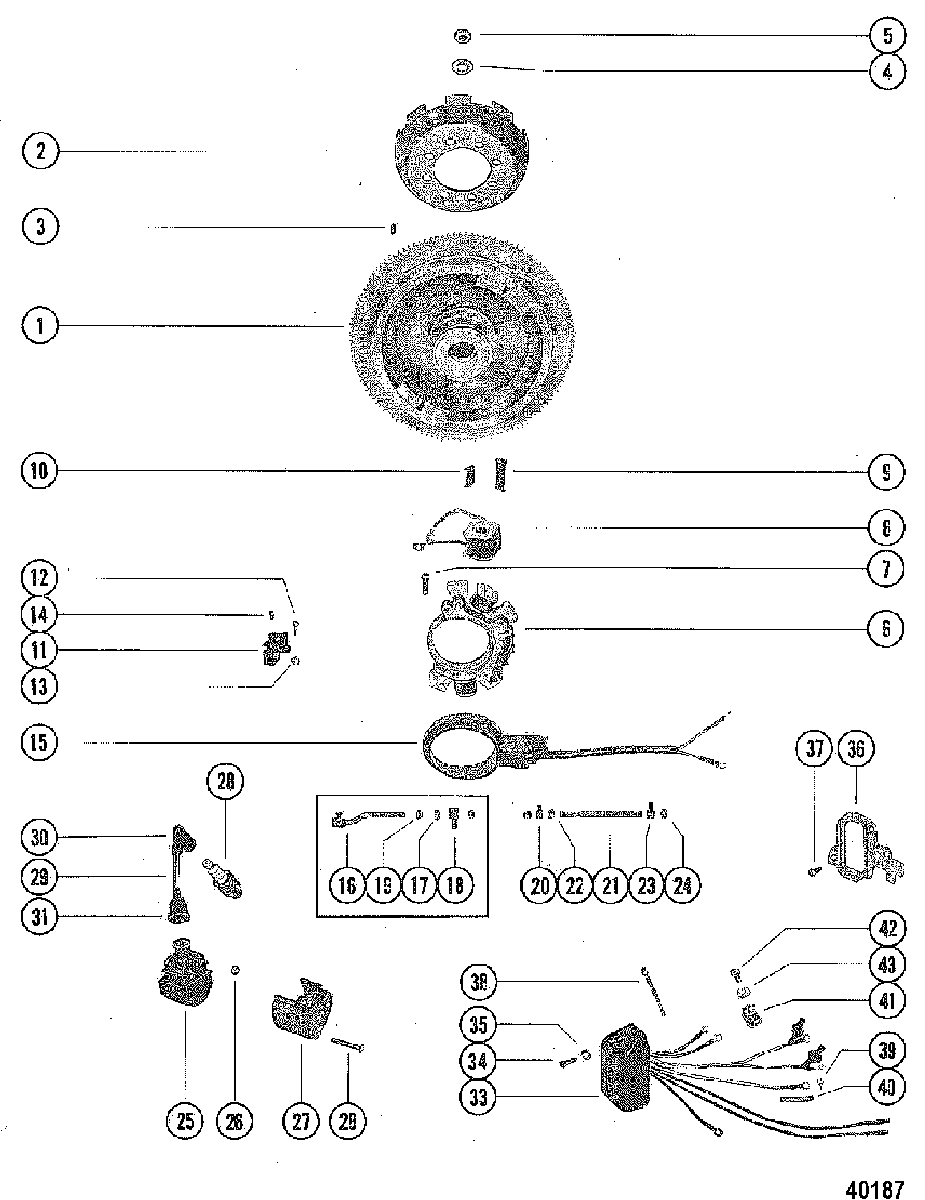

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 200, 20 9157230 & Up

  • №
    Артикул
    Название
  • 1
    244-6601A2 FLYWHEEL ASSEMBLY
    (MANUAL) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947
    FLYWHEEL ASSEMBLY
    (MANUAL) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947
  • 1
    244-6598A2 FLYWHEEL ASSEMBLY
    (ELECTRIC) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947
    FLYWHEEL ASSEMBLY
    (ELECTRIC) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947
  • 1
    244-6601A2 FLYWHEEL ASSEMBLY
    (BELGIUM) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947
    FLYWHEEL ASSEMBLY
    (BELGIUM) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947
  • 1
    244-6601A2 FLYWHEEL ASSEMBLY
    (MANUAL) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
    FLYWHEEL ASSEMBLY
    (MANUAL) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
  • 1
    244-6598A2 FLYWHEEL ASSEMBLY
    (ELECTRIC) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
    FLYWHEEL ASSEMBLY
    (ELECTRIC) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
  • 1
    244-6601A2 FLYWHEEL ASSEMBLY
    (BELGIUM) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
    FLYWHEEL ASSEMBLY
    (BELGIUM) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
  • 2
    50-65721 RATCHET ASSEMBLY, FLYWHEEL
    (MANUAL)
    RATCHET ASSEMBLY, FLYWHEEL
    (MANUAL)
  • 3
    28-20094 KEY, Woodruff, FLYWHEEL DRIVE
    KEY, Woodruff, FLYWHEEL DRIVE
  • 4
    12-65891 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 5
    11-22339 NUT, (.625-18), FLYWHEEL
    NUT, (.625-18), FLYWHEEL
  • 6
    339-5209A9 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 7
    10-66707 SCREW, STATOR TO END CAP (7/8")
    SCREW, STATOR TO END CAP (7/8")
  • 7
    10-35400 SCREW, STATOR TO END CAP (3/8")
    SCREW, STATOR TO END CAP (3/8")
  • 8
    339-6119A1 COIL ASSEMBLY (5-1/2" AND 6-3/8" LEADS)
    COIL ASSEMBLY (5-1/2" AND 6-3/8" LEADS)
  • 8
    339-6120A1 COIL ASSEMBLY (1-3/4" AND 3-1/2" LEADS)
    COIL ASSEMBLY (1-3/4" AND 3-1/2" LEADS)
  • 9
    54-59538T CLIP, COIL RETAINING
    CLIP, COIL RETAINING
  • 10
    56927 CLIP, COIL RETAINING
    CLIP, COIL RETAINING
  • 11
    86-85365 TERMINAL BLOCK, STATOR
    TERMINAL BLOCK, STATOR
  • 12
    10-38055 SCREW, (.190-32 x .62), TERMINAL BLOCK TO STATOR
    SCREW, (.190-32 x .62), TERMINAL BLOCK TO STATOR
  • 13
    11-46438 NUT, (#10-32), TERMINAL BLOCK SCREW
    NUT, (#10-32), TERMINAL BLOCK SCREW
  • 14
    10-22654 SCREW, (.190-32 x .38), LEADS TO TERMINAL BLOCK
    SCREW, (.190-32 x .38), LEADS TO TERMINAL BLOCK
  • 15
    89312A3 TRIGGER ASSEMBLY
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
    TRIGGER ASSEMBLY
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
  • 15
    89312A3 TRIGGER ASSEMBLY
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
    TRIGGER ASSEMBLY
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
  • 16
    74454 SWIVEL, LINK TO TRIGGER
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
    SWIVEL, LINK TO TRIGGER
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
  • 17
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, THROTTLE LINK
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
    WASHER, (.192 x .375 x .0312) Stainless Steel, THROTTLE LINK
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
  • 18
    33973 SWIVEL, THROTTLE LINK
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
    SWIVEL, THROTTLE LINK
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
  • 19
    11-859124 NUT, (#10-32) Stainless Steel, THROTTLE LINK
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
    NUT, (#10-32) Stainless Steel, THROTTLE LINK
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
  • 20
    79364 SWIVEL, LINK TO TRIGGER
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
    SWIVEL, LINK TO TRIGGER
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
  • 21
    79365 LINK, SPARK ADVANCE
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
    LINK, SPARK ADVANCE
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
  • 22
    53-79366 RING, Retaining, SWIVEL TO LINK
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
    RING, Retaining, SWIVEL TO LINK
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
  • 23
    79363 SWIVEL, SPARK ADVANCE LINK
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
    SWIVEL, SPARK ADVANCE LINK
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
  • 24
    11-68219 NUT, (#10-32) Stainless Steel, SPARK ADVANCE LINK
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
    NUT, (#10-32) Stainless Steel, SPARK ADVANCE LINK
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
  • 25
    339-5288T2 COIL ASSEMBLY, IGNITION
    COIL ASSEMBLY, IGNITION
  • 26
    11-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINAL
    NUT, (#10-32) Brass, IGNITION COIL TERMINAL
  • 27
    76254 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 28
    10-60464 SCREW (2")
    SCREW (2")
  • 29
    84-813715A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 30
    85-63709A1 PROTECTOR, SPARK PLUG
    PROTECTOR, SPARK PLUG
  • 31
    332-2854T01 BOOT, IGNITION COIL
    BOOT, IGNITION COIL
  • 32
    33-97182Q SPARK PLUG (ACV#70FFK)
    SPARK PLUG (ACV#70FFK)
  • 32
    33-14103Q SPARK PLUG
    BELGIUM AND CANADA
    SPARK PLUG
    BELGIUM AND CANADA
  • 33
    899883229 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 34
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, SWITCH BOX TO PLATE
    SCREW, (#10-16 x .625) Stainless Steel, SWITCH BOX TO PLATE
  • 35
    12-56681 WASHER, (.203 x .500 x .032), SWITCH BOX SCREW
    WASHER, (.203 x .500 x .032), SWITCH BOX SCREW
  • 36
    75899 PLATE, SWITCH BOX
    PLATE, SWITCH BOX
  • 37
    10-98256 SCREW, SWITCH BOX PLATE ATTACHING (1/2")
    SCREW, SWITCH BOX PLATE ATTACHING (1/2")
  • 38
    61990 TIE STRAP, (14.00 Inches)
    TIE STRAP, (14.00 Inches)
  • 39
    10-45218 SCREW, (#10-32 x .380), SWITCH BOX LEADS
    SCREW, (#10-32 x .380), SWITCH BOX LEADS
  • 40
    5790811 SLEEVE, SWITCH BOX LEADS
    SLEEVE, SWITCH BOX LEADS
  • 41
    54-23567 CLIP, SWITCH BOX WIRES
    CLIP, SWITCH BOX WIRES
  • 42
    10-62568 SCREW, (#10-16 x .375), CLIP ATTACHING
    SCREW, (#10-16 x .375), CLIP ATTACHING
  • 43
    8M0084613 C WASHER, CLIP ATTACHING SCREW
    C WASHER, CLIP ATTACHING SCREW
