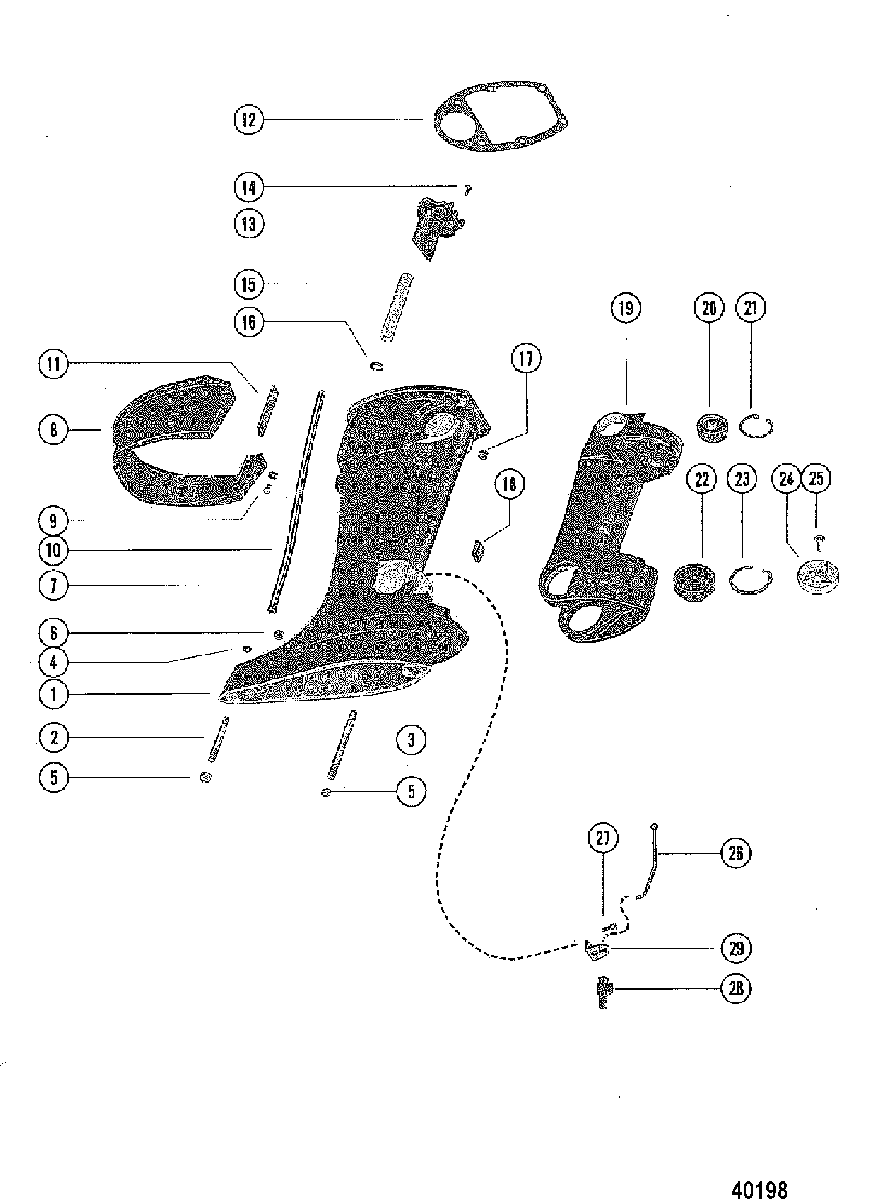

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 200, 20 9157230 & Up

  • №
    Артикул
    Название
  • 1
    1561-6007A2 HOUSING ASSEMBLY, Driveshaft
    (SHORT SHAFT)
    HOUSING ASSEMBLY, Driveshaft
    (SHORT SHAFT)
  • 1
    1560-7679A3 HOUSING ASSEMBLY, Driveshaft
    (LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
    HOUSING ASSEMBLY, Driveshaft
    (LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
  • 1
    1560-7679A3 HOUSING ASSEMBLY, Driveshaft
    (LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
    HOUSING ASSEMBLY, Driveshaft
    (LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
  • 2
    16-66373 STUD, DRIVESHAFT HSG. TO GEAR HSG. (2 5/16")
    STUD, DRIVESHAFT HSG. TO GEAR HSG. (2 5/16")
  • 3
    16-58134 STUD, DRIVESHAFT HSG. TO GEAR HSG. (3 15/16")
    STUD, DRIVESHAFT HSG. TO GEAR HSG. (3 15/16")
  • 4
    19-32298 PLUG, DRIVESHAFT HOUSING STUD
    PLUG, DRIVESHAFT HOUSING STUD
  • 5
    11-82670911 NUT, (.312-24) Stainless Steel, DRIVESHAFT HOUSING STUD
    NUT, (.312-24) Stainless Steel, DRIVESHAFT HOUSING STUD
  • 6
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
  • 7
    32-39586 TUBE, WATER OUTLET
    (SHORT SHAFT)
    TUBE, WATER OUTLET
    (SHORT SHAFT)
  • 7
    32-39587 TUBE, WATER OUTLET
    (LONG SHAFT)
    TUBE, WATER OUTLET
    (LONG SHAFT)
  • 8
    39301 COVER, TRIM
    COVER, TRIM
  • 9
    10-69013 SCREW, (#10-16 x .880)
    SCREW, (#10-16 x .880)
  • 10
    25-8M0079730 GROMMET, TRIM COVER SCREW
    GROMMET, TRIM COVER SCREW
  • 11
    39353 SEAL, RUBBER-TRIM COVER
    SEAL, RUBBER-TRIM COVER
  • 12
    27-39402 GASKET
    GASKET
  • 13
    39492 PLATE, IDLE RELIEF
    PLATE, IDLE RELIEF
  • 14
    10-35519 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 15
    32-45054 TUBE, NYLON-IDLE RELIEF TUBE
    TUBE, NYLON-IDLE RELIEF TUBE
  • 16
    25-201951 O-RING, IDLE RELIEF TUBE
    O-RING, IDLE RELIEF TUBE
  • 17
    11-29250 NUT, (.312-24), POWERHEAD STUDS
    NUT, (.312-24), POWERHEAD STUDS
  • 18
    64076 BUMPER, RUBBER-SADDLE
    BUMPER, RUBBER-SADDLE
  • 19
    1562-7098A1 SADDLE ASSEMBLY
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
    SADDLE ASSEMBLY
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
  • 19
    1562-7098A1 SADDLE ASSEMBLY
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
    SADDLE ASSEMBLY
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
  • 20
    85003 MOUNT, RUBBER
    (SHORT SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below
    MOUNT, RUBBER
    (SHORT SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below
  • 20
    85002 MOUNT, RUBBER
    (LONG SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below
    MOUNT, RUBBER
    (LONG SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below
  • 20
    85003 MOUNT, RUBBER
    (SHORT SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
    MOUNT, RUBBER
    (SHORT SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
  • 20
    85002 MOUNT, RUBBER
    (LONG SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
    MOUNT, RUBBER
    (LONG SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
  • 21
    53-23720 RING, Retaining
    RING, Retaining
  • 22
    79948A1 MOUNT, RUBBER-LOWER
    (SHORT SHAFT SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below
    MOUNT, RUBBER-LOWER
    (SHORT SHAFT SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below
  • 22
    79947A1 MOUNT, RUBBER-LOWER
    (LONG SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below
    MOUNT, RUBBER-LOWER
    (LONG SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below
  • 22
    79948A1 MOUNT, RUBBER-LOWER
    (SHORT SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
    MOUNT, RUBBER-LOWER
    (SHORT SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
  • 22
    79947A1 MOUNT, RUBBER-LOWER
    (LONG SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
    MOUNT, RUBBER-LOWER
    (LONG SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
  • 23
    53-8M0051043 RING, Retaining
    RING, Retaining
  • 24
    70317 COVER, LOWER MOUNT
    SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below
    COVER, LOWER MOUNT
    SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below
  • 24
    79908 COVER, LOWER MOUNT
    SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
    COVER, LOWER MOUNT
    SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up
  • 25
    10-28638 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 26
    76536 LINK ROD, REVERSE LOCK
    LINK ROD, REVERSE LOCK
  • 27
    10-65414 SCREW, CAM RETAINER TO DRIVESHAFT HOUSING (3/4")
    SCREW, CAM RETAINER TO DRIVESHAFT HOUSING (3/4")
  • 28
    65216 CAM, REVERSE LOCK
    CAM, REVERSE LOCK
  • 29
    72007 RETAINER, REVERSE LOCK CAM
    RETAINER, REVERSE LOCK CAM
