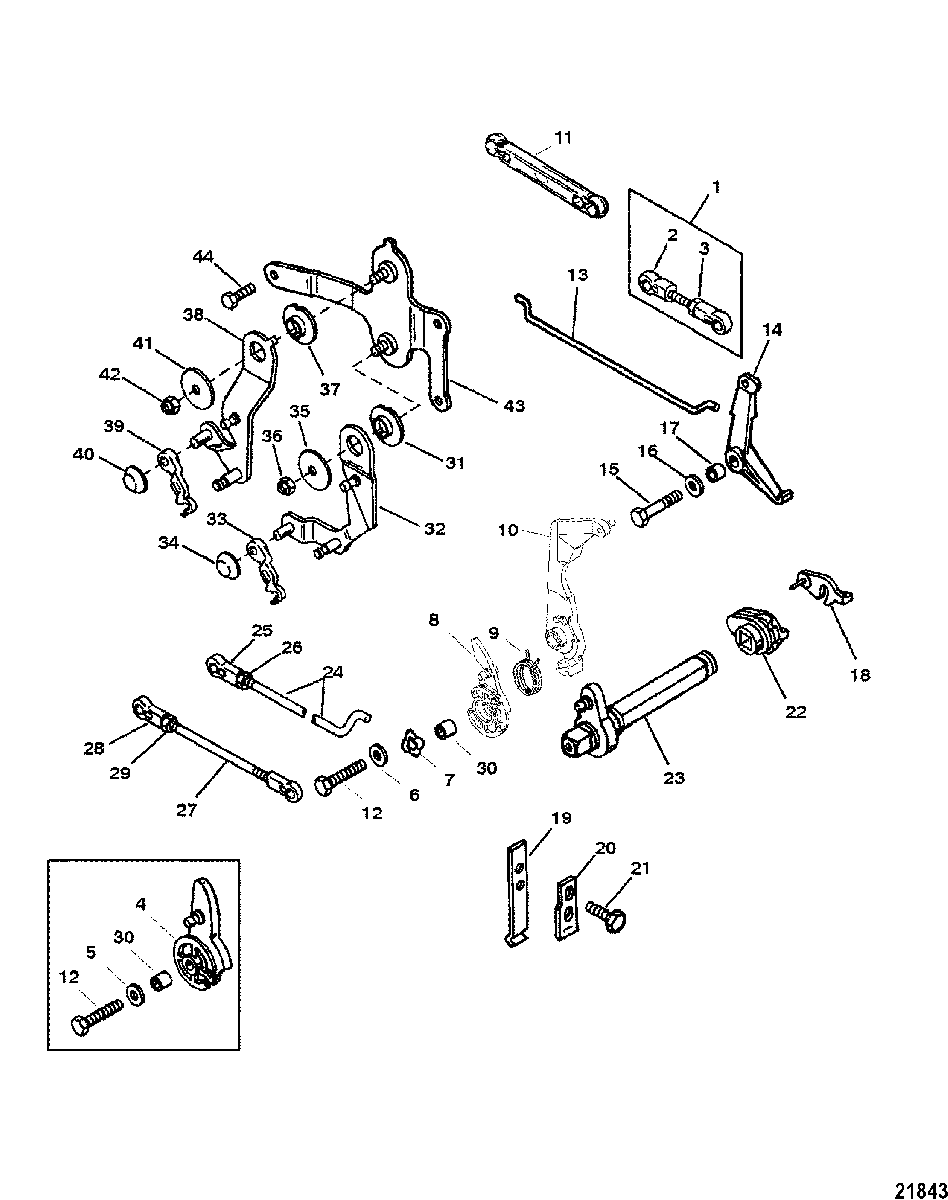

Throttle and Shift Linkage(Remote Control) для Mercury - 15 SEA PRO (XD) 9927000 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    823857A1 LINK ASSEMBLY, Spark Adjustment
    SN# USA-0G437999/BEL-9926999 & Below
    LINK ASSEMBLY, Spark Adjustment
    SN# USA-0G437999/BEL-9926999 & Below
  • 2
    817428 SOCKET
    SN# USA-0G437999/BEL-9926999 & Below
    SOCKET
    SN# USA-0G437999/BEL-9926999 & Below
  • 3
    11-45076 NUT, (#10-32) Brass
    SN# USA-0G437999/BEL-9926999 & Below
    NUT, (#10-32) Brass
    SN# USA-0G437999/BEL-9926999 & Below
  • 4
    8237571 CAM, Throttle
    SN# USA-0G437999/BEL-9926999 & Below
    CAM, Throttle
    SN# USA-0G437999/BEL-9926999 & Below
  • 5
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    SN# USA-0G437999/BEL-9926999 & Below
    WASHER, (.255 x .620 x .030) Stainless Steel
    SN# USA-0G437999/BEL-9926999 & Below
  • 6
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    SN# USA-0G438000/BEL-9927000 & Up
    WASHER, (.265 x .750 x .048) Stainless Steel
    SN# USA-0G438000/BEL-9927000 & Up
  • 7
    13-99611 WAVE WASHER
    SN# USA-0G438000/BEL-9927000 & Up
    WAVE WASHER
    SN# USA-0G438000/BEL-9927000 & Up
  • 8
    8319781 CAM, Throttle
    SN# USA-0G438000/BEL-9927000 & Up
    CAM, Throttle
    SN# USA-0G438000/BEL-9927000 & Up
  • 9
    24-42164 SPRING
    SN# USA-0G438000/BEL-9927000 & Up
    SPRING
    SN# USA-0G438000/BEL-9927000 & Up
  • 10
    888191 SPARK ARM
    SN# USA-0G438000/BEL-9927000 & Up
    SPARK ARM
    SN# USA-0G438000/BEL-9927000 & Up
  • 11
    8327471 TIMING LINK
    SN# USA-0G438000/BEL-9927000 & Up
    TIMING LINK
    SN# USA-0G438000/BEL-9927000 & Up
  • 12
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 13
    42161 LINK INTERLOCK
    LINK INTERLOCK
  • 14
    8236103 LEVER, Interlock Control
    LEVER, Interlock Control
  • 15
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 16
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 17
    23-823806 BUSHING
    BUSHING
  • 18
    823862 LEVER, Backplate
    LEVER, Backplate
  • 19
    24-826077 SPRING, Detent
    SPRING, Detent
  • 20
    824994 SPRING, Plate
    SPRING, Plate
  • 21
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 22
    8238632 LEVER, Horizontal Shift Shaft (PORT)
    LEVER, Horizontal Shift Shaft (PORT)
  • 23
    8236011 SHIFT SHAFT (HORIZONTAL)
    SHIFT SHAFT (HORIZONTAL)
  • 24
    881228A1 SHIFT ROD ASSEMBLY
    SHIFT ROD ASSEMBLY
  • 25
    817428 SOCKET
    SOCKET
  • 26
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 27
    881227A3 LINK ASSEMBLY, Throttle
    LINK ASSEMBLY, Throttle
  • 28
    817428 SOCKET
    SOCKET
  • 29
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 30
    23-823806 BUSHING
    BUSHING
  • 31
    23-825319 NYLINER
    NYLINER
  • 32
    8251681 LEVER, Shift
    LEVER, Shift
  • 33
    822459 RETAINER
    RETAINER
  • 34
    11-825677 PUSH NUT
    PUSH NUT
  • 35
    12-35280 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 36
    11-401386 NUT, (M6)
    NUT, (M6)
  • 37
    23-825319 NYLINER
    NYLINER
  • 38
    825169 LEVER, Throttle
    LEVER, Throttle
  • 39
    822459 RETAINER
    RETAINER
  • 40
    11-825677 PUSH NUT
    PUSH NUT
  • 41
    12-35280 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 42
    11-401386 NUT, (M6)
    NUT, (M6)
  • 43
    8251701 BRACKET, Mounting
    BRACKET, Mounting
  • 44
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
