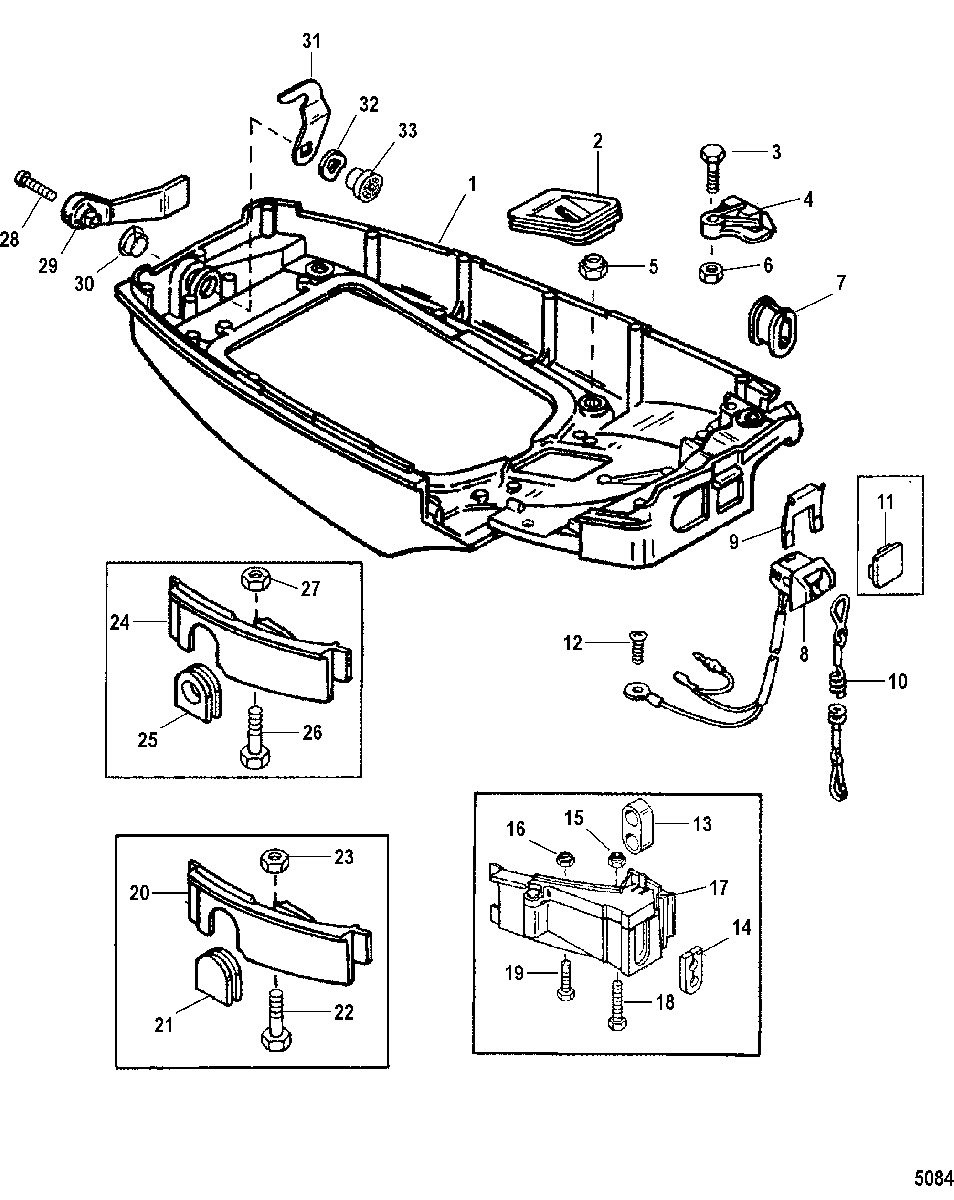

Bottom Cowl для Mercury - 15 SEA PRO (XD) 9927000 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    2193-9682A8 BOTTOM COWL
    (BLACK)
    BOTTOM COWL
    (BLACK)
  • 1
    2193-9682A9 BOTTOM COWL
    (GRAY)
    BOTTOM COWL
    (GRAY)
  • 1
    2193-9682A10 BOTTOM COWL
    (TRACKER GRAPHITE GRAY)
    BOTTOM COWL
    (TRACKER GRAPHITE GRAY)
  • 2
    25-17231 GROMMET, Shift Shaft
    GROMMET, Shift Shaft
  • 3
    10-4000332 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 4
    17223 COVER, Harness
    COVER, Harness
  • 5
    11-401196 NUT, (M6)
    NUT, (M6)
  • 6
    11-401196 NUT, (M6)
    NUT, (M6)
  • 7
    25-17226 GROMMET, Wire Harness
    GROMMET, Wire Harness
  • 8
    87-11083A6 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 9
    8M0032846 RETAINER, Brass
    RETAINER, Brass
  • 10
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 11
    19-17230 PLUG
    PLUG
  • 12
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 13
    39519 CUP
    CUP
  • 14
    25-8243641 GROMMET, Side Cover
    GROMMET, Side Cover
  • 15
    11-401196 NUT, (M6)
    NUT, (M6)
  • 16
    11-401196 NUT, (M6)
    NUT, (M6)
  • 17
    8M0053899 SIDE COVER
    (Black) SN# USA-0G438000/BEL-9927000 & Up
    SIDE COVER
    (Black) SN# USA-0G438000/BEL-9927000 & Up
  • 17
    8M0053899 SIDE COVER
    (Gray) SN# USA-0G438000/BEL-9927000 & Up
    SIDE COVER
    (Gray) SN# USA-0G438000/BEL-9927000 & Up
  • 17
    8M0053899 SIDE COVER
    (Tracker Graphite Gray) SN# USA-0G438000/BEL-9927000 & Up
    SIDE COVER
    (Tracker Graphite Gray) SN# USA-0G438000/BEL-9927000 & Up
  • 17
    8M0053899 SIDE COVER
    (Black) SN# USA-0G437999/BEL-9926999 & Below
    SIDE COVER
    (Black) SN# USA-0G437999/BEL-9926999 & Below
  • 17
    8M0053899 SIDE COVER
    (Gray) SN# USA-0G437999/BEL-9926999 & Below
    SIDE COVER
    (Gray) SN# USA-0G437999/BEL-9926999 & Below
  • 17
    8M0053899 SIDE COVER
    (Tracker Graphite Gray) SN# USA-0G437999/BEL-9926999 & Below
    SIDE COVER
    (Tracker Graphite Gray) SN# USA-0G437999/BEL-9926999 & Below
  • 18
    10-4000329 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 19
    10-4000328 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 20
    8M0054857 SIDE COVER
    (MANUAL - BLACK)
    SIDE COVER
    (MANUAL - BLACK)
  • 20
    8M0054857 SIDE COVER
    (MANUAL - GRAY)
    SIDE COVER
    (MANUAL - GRAY)
  • 20
    8M0054857 SIDE COVER
    (MANUAL - TRACKER GRAPHITE GRAY)
    SIDE COVER
    (MANUAL - TRACKER GRAPHITE GRAY)
  • 21
    25-824362 GROMMET
    GROMMET
  • 22
    10-4000329 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 23
    11-401366 NUT, (M6)
    NUT, (M6)
  • 24
    8M0054857 SIDE COVER
    (MANUAL - BLACK)
    SIDE COVER
    (MANUAL - BLACK)
  • 24
    8M0054857 SIDE COVER
    (MANUAL - GRAY)
    SIDE COVER
    (MANUAL - GRAY)
  • 25
    25-824361 GROMMET
    GROMMET
  • 26
    10-4000329 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 27
    11-401366 NUT, (M6)
    NUT, (M6)
  • 28
    10-852530 SCREW, (.250-20 x 1.50)
    SCREW, (.250-20 x 1.50)
  • 29
    17220 LEVER, Cowl Latch
    LEVER, Cowl Latch
  • 30
    23-812707 BUSHING
    BUSHING
  • 31
    816202 HOOK, Latch
    HOOK, Latch
  • 32
    13-37642 WAVE WASHER
    WAVE WASHER
  • 33
    11-17224 NUT, Latch Retaining
    NUT, Latch Retaining
