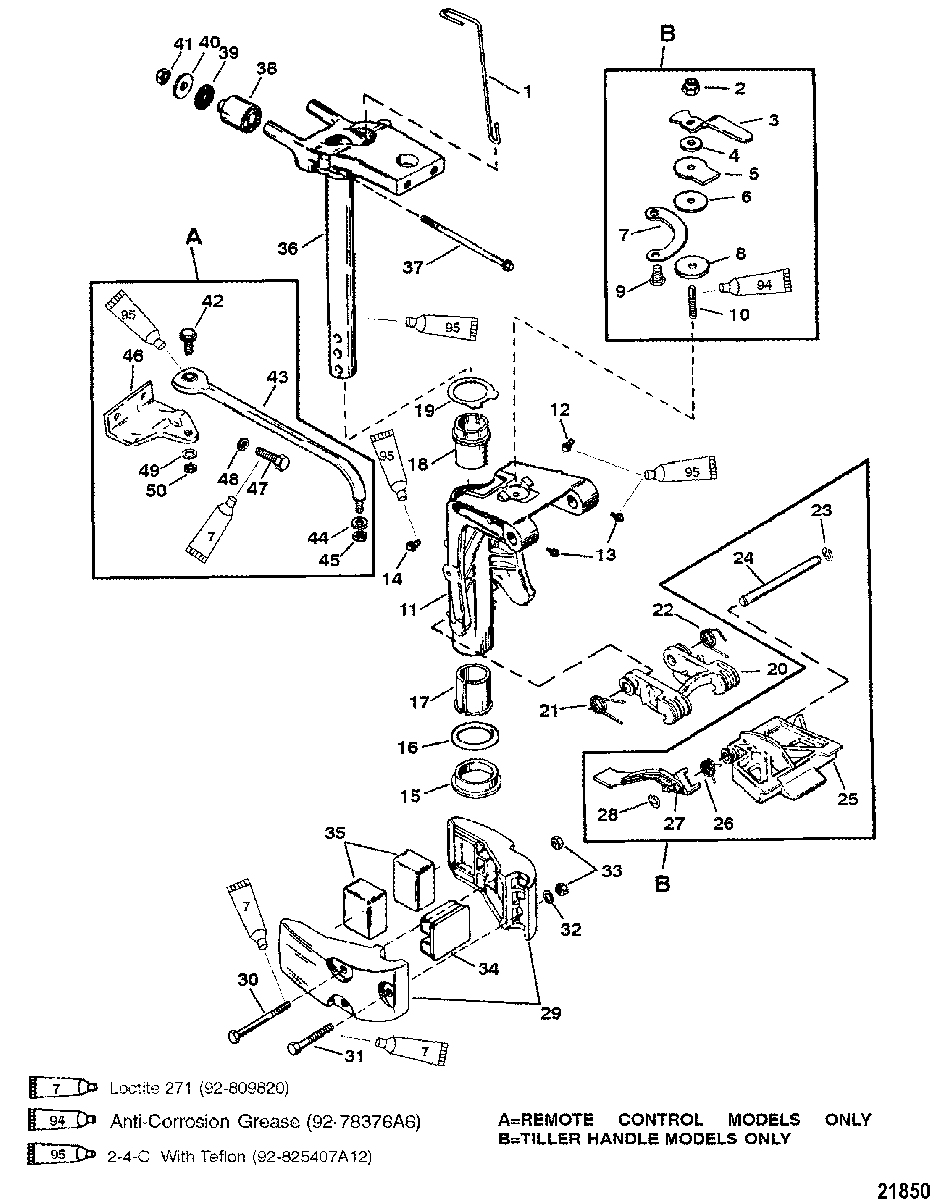

Swivel Bracket Assembly для Mercury - 15 SEA PRO (XD) 9927000 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    165541 ROD, Reverse Hook
    ROD, Reverse Hook
  • 2
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
  • 3
    821959 HANDLE
    HANDLE
  • 4
    12-29330 WASHER
    WASHER
  • 5
    821957 BRAKE PLATE
    BRAKE PLATE
  • 6
    8165621 DISC
    DISC
  • 7
    821958A1 PLATE KIT (INCLUDED W/REF. #36)
    PLATE KIT (INCLUDED W/REF. #36)
  • 8
    8165621 DISC
    DISC
  • 9
    10-82130014 SCREW, (M6 x 14) (INCLUDED W/REF. #36)
    SCREW, (M6 x 14) (INCLUDED W/REF. #36)
  • 10
    821961 ROD
    ROD
  • 11
    3415-822237A3 SWIVEL BRACKET
    (BLACK)
    SWIVEL BRACKET
    (BLACK)
  • 11
    3415-822237A3 SWIVEL BRACKET
    (GRAY)
    SWIVEL BRACKET
    (GRAY)
  • 11
    3415-822237A3 SWIVEL BRACKET
    (TRACKER GRAPHITE GRAY)
    SWIVEL BRACKET
    (TRACKER GRAPHITE GRAY)
  • 12
    22-74036 FITTING, Grease
    FITTING, Grease
  • 13
    22-74036 FITTING, Grease
    FITTING, Grease
  • 14
    22-74036 FITTING, Grease
    FITTING, Grease
  • 15
    23-85154A1 BUSHING KIT
    BUSHING KIT
  • 16
    25-86993 O-RING
    O-RING
  • 17
    NSS NOT SOLD SEPARATE, Bushing
    NOT SOLD SEPARATE, Bushing
  • 18
    NSS NOT SOLD SEPARATE, Bushing
    NOT SOLD SEPARATE, Bushing
  • 19
    NSS NOT SOLD SEPARATE, Washer
    NOT SOLD SEPARATE, Washer
  • 20
    98830A3 HOOK ASSEMBLY, Reverse Lock
    HOOK ASSEMBLY, Reverse Lock
  • 21
    24-97427 SPRING
    (REMOTE CONTROL MODELS)
    SPRING
    (REMOTE CONTROL MODELS)
  • 21
    24-879894 SPRING
    (ALL OTHER MODELS)
    SPRING
    (ALL OTHER MODELS)
  • 22
    24-96018 SPRING
    SPRING
  • 23
    53-13194 RING, Retaining
    RING, Retaining
  • 24
    17-13195 PIN
    PIN
  • 25
    12756 BRACKET
    BRACKET
  • 26
    24-12754 SPRING
    SPRING
  • 27
    12758 LEVER
    LEVER
  • 28
    53-13194 RING, Retaining
    RING, Retaining
  • 29
    17232A1 COVER
    (BLACK)
    COVER
    (BLACK)
  • 29
    17232A1 COVER
    (GRAY)
    COVER
    (GRAY)
  • 29
    17232A3 COVER
    (TRACKER GRAPHITE GRAY)
    COVER
    (TRACKER GRAPHITE GRAY)
  • 30
    10-19943100 SCREW, (M8 x 100)
    SCREW, (M8 x 100)
  • 31
    10-1994360 SCREW, (M8 x 60)
    SCREW, (M8 x 60)
  • 32
    12-36001 WASHER
    WASHER
  • 33
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 34
    85123001 BUMPER, Front
    BUMPER, Front
  • 35
    85122001 MOUNT
    MOUNT
  • 36
    822238A9 SWIVEL HEAD
    (BLACK)
    SWIVEL HEAD
    (BLACK)
  • 36
    822238A9 SWIVEL HEAD
    (GRAY)
    SWIVEL HEAD
    (GRAY)
  • 36
    822238A9 SWIVEL HEAD
    (TRACKER GRAPHITE GRAY)
    SWIVEL HEAD
    (TRACKER GRAPHITE GRAY)
  • 37
    10-125161 SCREW, (M8 x 133.35) Upper Mount
    SCREW, (M8 x 133.35) Upper Mount
  • 38
    14894 MOUNT
    MOUNT
  • 39
    12-85172 WASHER, UPPER MOUNT SCREW
    WASHER, UPPER MOUNT SCREW
  • 40
    12-43430 WASHER
    WASHER
  • 41
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 42
    10-849838 SCREW, (.375-24 x 1.25)
    SCREW, (.375-24 x 1.25)
  • 43
    41323A03 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 44
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 45
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
  • 46
    96186A2 BRACKET ASSEMBLY
    (BLACK)
    BRACKET ASSEMBLY
    (BLACK)
  • 46
    96186A2 BRACKET, Ride Guide
    (GRAY)
    BRACKET, Ride Guide
    (GRAY)
  • 47
    10-1993325 SCREW, (M10 x 25 MM)
    SCREW, (M10 x 25 MM)
  • 48
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 49
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 50
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
