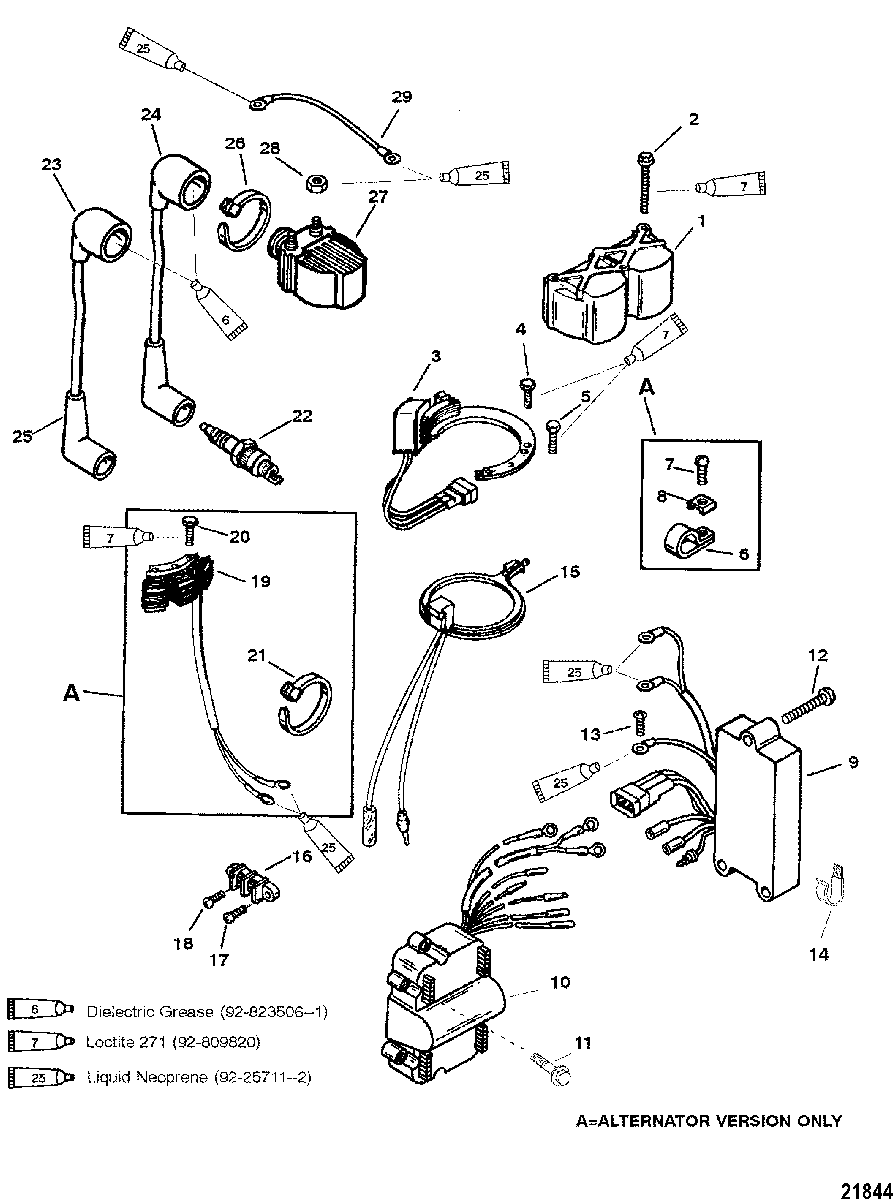

Ignition/Electrical Components для Mercury - 15 SEA PRO (XD) 9927000 THRU 0P016999
-
№АртикулНазвание
-
1997621 COVER, Ignition CoilCOVER, Ignition Coil
-
210-1994155 SCREW, (M5 x 55)SCREW, (M5 x 55)
-
386617A17 STATOR ASSEMBLY
(20/25) SN# USA-0G437999/BEL-9926999 & BelowSTATOR ASSEMBLY
(20/25) SN# USA-0G437999/BEL-9926999 & Below -
386617A20 STATOR ASSEMBLY
(20/25) SN# USA-0G438000/BEL-9927000 & UpSTATOR ASSEMBLY
(20/25) SN# USA-0G438000/BEL-9927000 & Up -
386617A17 STATOR ASSEMBLY
(JET 20)STATOR ASSEMBLY
(JET 20) -
410-4000120 SCREW, (M5 x 25)SCREW, (M5 x 25)
-
510-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
654-22740 CLIPCLIP
-
710-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
88M0084613 C WASHERC WASHER
-
918495A30 SWITCHBOX ASSEMBLY
(Jet 20)SWITCHBOX ASSEMBLY
(Jet 20) -
918495A30 SWITCHBOX ASSEMBLY
(20/25) SN# USA-0G437999/BEL-9926999 & BelowSWITCHBOX ASSEMBLY
(20/25) SN# USA-0G437999/BEL-9926999 & Below -
10339-7452A19 SWITCHBOX ASSEMBLY
(20/25) SN# USA-0G438000/BEL-9927000 & UpSWITCHBOX ASSEMBLY
(20/25) SN# USA-0G438000/BEL-9927000 & Up -
1110-40019108 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
1210-40011111 SCREW, (M5 x 35) Stainless SteelSCREW, (M5 x 35) Stainless Steel
-
1310-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1454-55098 J CLIPJ CLIP
-
1598450A10 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
1686-638131 TERMINAL BLOCK
COMMERCIALTERMINAL BLOCK
COMMERCIAL -
1710-48409 SCREW, (#10-16 x .625) Stainless Steel
COMMERCIALSCREW, (#10-16 x .625) Stainless Steel
COMMERCIAL -
1810-62568 SCREW, (#10-16 x .375)
COMMERCIALSCREW, (#10-16 x .375)
COMMERCIAL -
1986704A10 STATOR ASSEMBLY
COMMERCIALSTATOR ASSEMBLY
COMMERCIAL -
2010-4000123 SCREW, (M5 x 30)
COMMERCIALSCREW, (M5 x 30)
COMMERCIAL -
2154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2233-816737Q SPARK PLUG
(NGK #BP8H-N-10)SPARK PLUG
(NGK #BP8H-N-10) -
2233-816837Q SPARK PLUG
(NGK #BPZ8H-N-10) (Canada/Belgium)SPARK PLUG
(NGK #BPZ8H-N-10) (Canada/Belgium) -
2384-813715A2 CABLE SET, High Tension (5 and 8.25 Inch)CABLE SET, High Tension (5 and 8.25 Inch)
-
24NSS NOT SOLD SEPARATE, Hi Tension Cable (Part of Reference #22)NOT SOLD SEPARATE, Hi Tension Cable (Part of Reference #22)
-
2585-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
2654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
27339-832757A4 COIL KITCOIL KIT
-
2811-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2984-88807A10 CABLE ASSEMBLY (BLACK)CABLE ASSEMBLY (BLACK)
