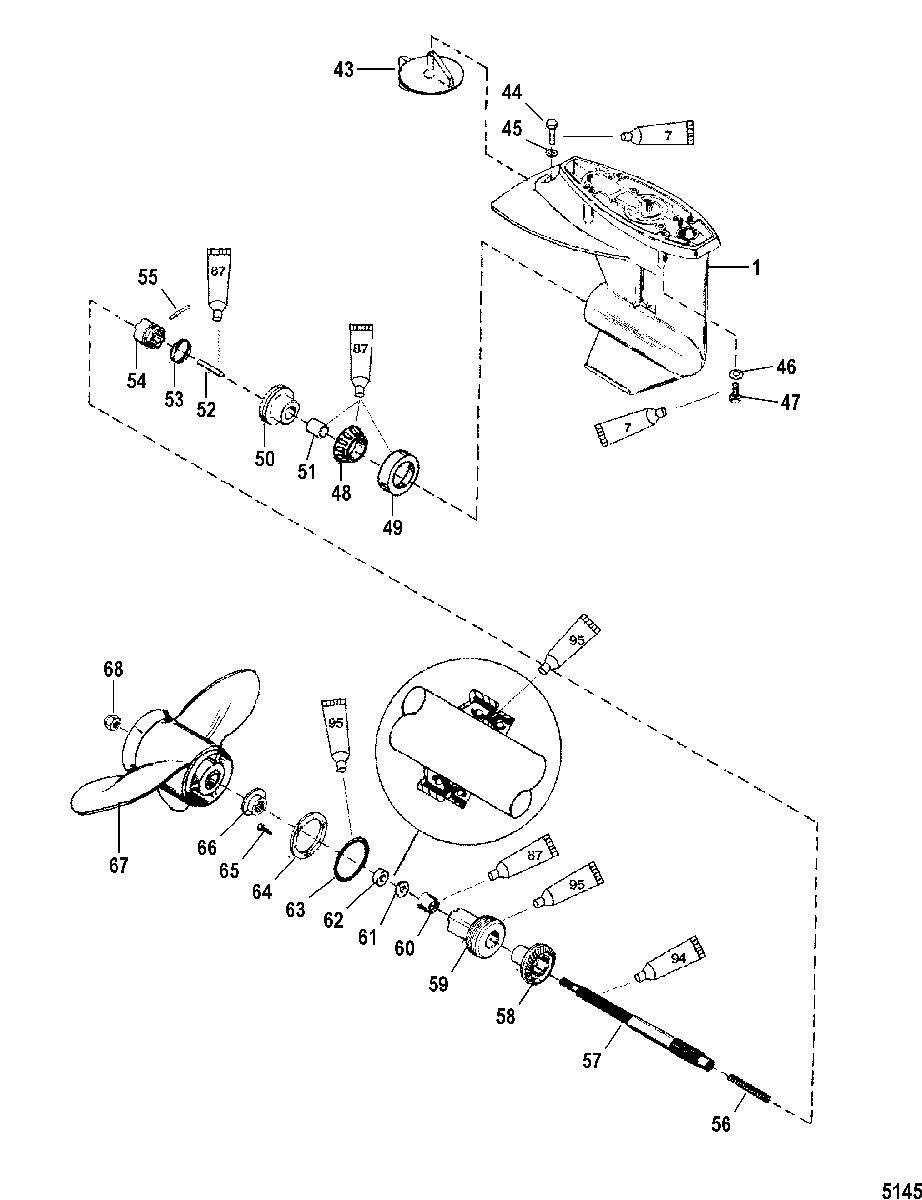

Gear Housing, Propeller Shaft - 2.25:1 Gear Ratio для Mercury - 15 SEA PRO (XD) 9927000 THRU 0P016999
-
№АртикулНазвание
-
-1665-8669T26 GEAR HOUSING ASSEMBLY
(SHORT - BLACK)GEAR HOUSING ASSEMBLY
(SHORT - BLACK) -
-1665-8669T28 GEAR HOUSING ASSEMBLY
(LONG - BLACK)GEAR HOUSING ASSEMBLY
(LONG - BLACK) -
-1665-8669T26 GEAR HOUSING ASSEMBLY
(SHORT - GRAY)GEAR HOUSING ASSEMBLY
(SHORT - GRAY) -
-1665-8669T28 GEAR HOUSING ASSEMBLY
(LONG - GRAY)GEAR HOUSING ASSEMBLY
(LONG - GRAY) -
-1665-8669A30 GEAR HOUSING ASSEMBLY
(TRACKER GRAPHITE GRAY)GEAR HOUSING ASSEMBLY
(TRACKER GRAPHITE GRAY) -
11600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Black
(BLACK)GEAR HOUSING ASSEMBLY, Basic-Black
(BLACK) -
11600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Gray
(GRAY)GEAR HOUSING ASSEMBLY, Basic-Gray
(GRAY) -
11665-8669A39 GEAR HOUSING ASSEMBLY
(TRACKER GRAPHITE GRAY)GEAR HOUSING ASSEMBLY
(TRACKER GRAPHITE GRAY) -
4397-98432Q6 TRIM TABTRIM TAB
-
4410-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
4512-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
4612-43328 WASHERWASHER
-
4710-4000378 SCREW, (M10 x 35) Stainless SteelSCREW, (M10 x 35) Stainless Steel
-
4831-8M0103470 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
49NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
5043-44213T1 GEAR ASSEMBLY, Forward (27 TEETH)GEAR ASSEMBLY, Forward (27 TEETH)
-
5123-85557 BUSHINGBUSHING
-
5285094 FOLLOWER, CamFOLLOWER, Cam
-
5324-38114 SPRINGSPRING
-
5452-41040T1 CLUTCHCLUTCH
-
5517-8M0020999 PINPIN
-
5624-88680 SPRINGSPRING
-
5744-8166231 PROPELLER SHAFTPROPELLER SHAFT
-
5843-99542T GEAR, Reverse (27 TEETH)GEAR, Reverse (27 TEETH)
-
5999906T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6031-21739 BEARING, RollerBEARING, Roller
-
6126-41132 SEAL, Oil (INNER)SEAL, Oil (INNER)
-
6226-41131 SEAL, Oil (OUTER)SEAL, Oil (OUTER)
-
6325-85549 O-RINGO-RING
-
6487293 PLATEPLATE
-
6510-90883 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
66851281 THRUST HUB ASSEMBLYTHRUST HUB ASSEMBLY
-
6748-19640A40 PROPELLERPROPELLER
-
6748-19638A40 PROPELLER
(SEA PRO/MARATHON 15/25/SUPER 15)PROPELLER
(SEA PRO/MARATHON 15/25/SUPER 15) -
6811-88228 PROP NUTPROP NUT
-
6811-4011912 PROP NUT
(SEA PRO/MARATHON 15/25/SUPER 15)PROP NUT
(SEA PRO/MARATHON 15/25/SUPER 15) -
-27-41499A88 GASKET SETGASKET SET
-
-26-85090A2 SEAL KITSEAL KIT
