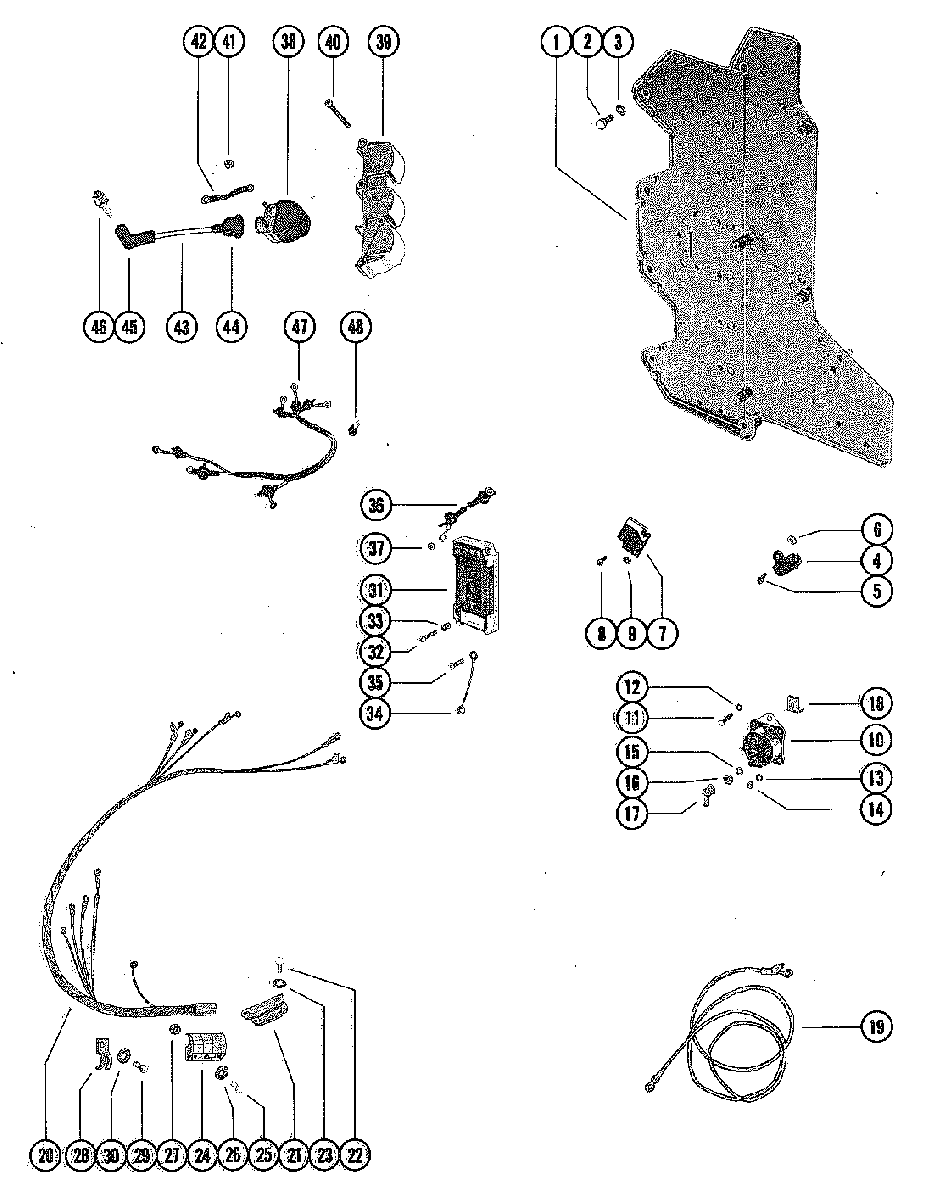

WIRING HARNESS, SWITCH BOX AND IGNITION COIL для Mercury - 140 8066065 AND UP

  • №
    Артикул
    Название
  • 1
    89748T PLATE, ELECTRICAL MOUNTING
    PLATE, ELECTRICAL MOUNTING
  • 2
    10-86885 SCREW, PLATE TO CYLINDER BLOCK (1 1/2")
    SCREW, PLATE TO CYLINDER BLOCK (1 1/2")
  • 2
    10-28636 SCREW, PLATE TO CYLINDER BLOCK (3/4")
    SCREW, PLATE TO CYLINDER BLOCK (3/4")
  • 2
    10-455611 SCREW, PLATE TO CYLINDER BLOCK (1 1/8")
    SCREW, PLATE TO CYLINDER BLOCK (1 1/8")
  • 3
    12-29245 WASHER, PLATE SCREW
    WASHER, PLATE SCREW
  • 4
    87-33386A3 SWITCH ASSEMBLY, MERCURY
    SWITCH ASSEMBLY, MERCURY
  • 5
    10-25764 SCREW, MERCURY SWITCH TO PLATE (5/8")
    SCREW, MERCURY SWITCH TO PLATE (5/8")
  • 6
    11-45076 NUT, WIRE TO MERCURY SWITCH
    NUT, WIRE TO MERCURY SWITCH
  • 7
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 8
    10-25764 SCREW, RECTIFIER TO IGNITION PLATE (5/8")
    SCREW, RECTIFIER TO IGNITION PLATE (5/8")
  • 9
    11-45076 NUT, RECTIFIER TERMINALS
    NUT, RECTIFIER TERMINALS
  • 10
    89-853654A1 SOLENOID, STARTER
    SOLENOID, STARTER
  • 11
    10-38601 SCREW, STARTER SOLENOID TO PLATE (1/2")
    SCREW, STARTER SOLENOID TO PLATE (1/2")
  • 12
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
  • 13
    13-26996 LOCKWASHER, SOLENOID TERMINALS (#10)
    LOCKWASHER, SOLENOID TERMINALS (#10)
  • 14
    11-68219 NUT, SOLENOID TERMINALS (10-32)
    NUT, SOLENOID TERMINALS (10-32)
  • 15
    13-26993 LOCKWASHER, SOLENOID TERMINALS (5/16")
    LOCKWASHER, SOLENOID TERMINALS (5/16")
  • 16
    11-68292 NUT, SOLENOID TERMINALS (5/16-18)
    NUT, SOLENOID TERMINALS (5/16-18)
  • 17
    46265 BOOT, TERMINAL - STARTER SOLENOID
    BOOT, TERMINAL - STARTER SOLENOID
  • 18
    90547 LOCATOR, STARTER SOLENOID
    LOCATOR, STARTER SOLENOID
  • 19
    84-88439A3 BATTERY CABLE ASSEMBLY (POSITIVE)
    BATTERY CABLE ASSEMBLY (POSITIVE)
  • 19
    84-88439A4 BATTERY CABLE ASSEMBLY (NEGATIVE)
    BATTERY CABLE ASSEMBLY (NEGATIVE)
  • 20
    84-96188A4 WIRING HARNESS (INTERNAL)
    WIRING HARNESS (INTERNAL)
  • 21
    54-88608 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 22
    10-28636 SCREW, WIRING HARNESS CLAMP
    SCREW, WIRING HARNESS CLAMP
  • 23
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 24
    89047 BRACKET, WIRING HARNESS
    BRACKET, WIRING HARNESS
  • 25
    10-15124 SCREW, WIRING HARNESS BRACKET
    SCREW, WIRING HARNESS BRACKET
  • 26
    12-38833 WASHER, BRACKET SCREW
    WASHER, BRACKET SCREW
  • 27
    11-859124 NUT, BRACKET SCREW
    NUT, BRACKET SCREW
  • 28
    88751 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 29
    10-28636 SCREW, WIRING HARNESS CLAMP
    SCREW, WIRING HARNESS CLAMP
  • 30
    12-20533 WASHER, CLAMP SCREW
    WASHER, CLAMP SCREW
  • 31
    332-7778A12 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 32
    10-20619 SCREW, SWITCH BOX ATTACHING (1 3/8")
    SCREW, SWITCH BOX ATTACHING (1 3/8")
  • 33
    23-94304 SPACER, SWITCH BOX SCREW
    SPACER, SWITCH BOX SCREW
  • 34
    84-60871A10 WIRE ASSEMBLY, SWITCH BOX
    WIRE ASSEMBLY, SWITCH BOX
  • 35
    10-62568 SCREW, WIRE ATTACHING
    SCREW, WIRE ATTACHING
  • 36
    84-62310A3 CABLE ASS'Y
    SWITCH BOX TO SWITCH BOX (WHITE AND BLACK)
    CABLE ASS'Y
    SWITCH BOX TO SWITCH BOX (WHITE AND BLACK)
  • 37
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 38
    339-832757A4 COIL ASSEMBLY, IGNITION
    COIL ASSEMBLY, IGNITION
  • 39
    43542 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 40
    10-88856 SCREW, IGNITION COIL COVER (2")
    SCREW, IGNITION COIL COVER (2")
  • 41
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 42
    84-60466A1 CABLE ASSEMBLY, IGNITION COIL (BLACK)
    CABLE ASSEMBLY, IGNITION COIL (BLACK)
  • 43
    84-813715A1 CABLE, HIGH TENSION
    CABLE, HIGH TENSION
  • 44
    332-2854T01 BOOT, HIGH TENSION CABLE
    BOOT, HIGH TENSION CABLE
  • 45
    85-63709A1 PROTECTOR, HIGH TENSION CABLE
    PROTECTOR, HIGH TENSION CABLE
  • 46
    33-97180Q SPARK PLUG (CHAMPION#L76-V)
    SPARK PLUG (CHAMPION#L76-V)
  • 47
    84-85537A2 HARNESS ASSEMBLY
    COIL TO SWITCH BOX (#2, 4 AND 6)
    HARNESS ASSEMBLY
    COIL TO SWITCH BOX (#2, 4 AND 6)
  • 47
    84-85537A1 HARNESS ASSEMBLY
    COIL TO SWITCH BOX (#1, 3 AND 5)
    HARNESS ASSEMBLY
    COIL TO SWITCH BOX (#1, 3 AND 5)
  • 48
    54-63153 CLIP, HARNESS TO COIL COVER
    CLIP, HARNESS TO COIL COVER
