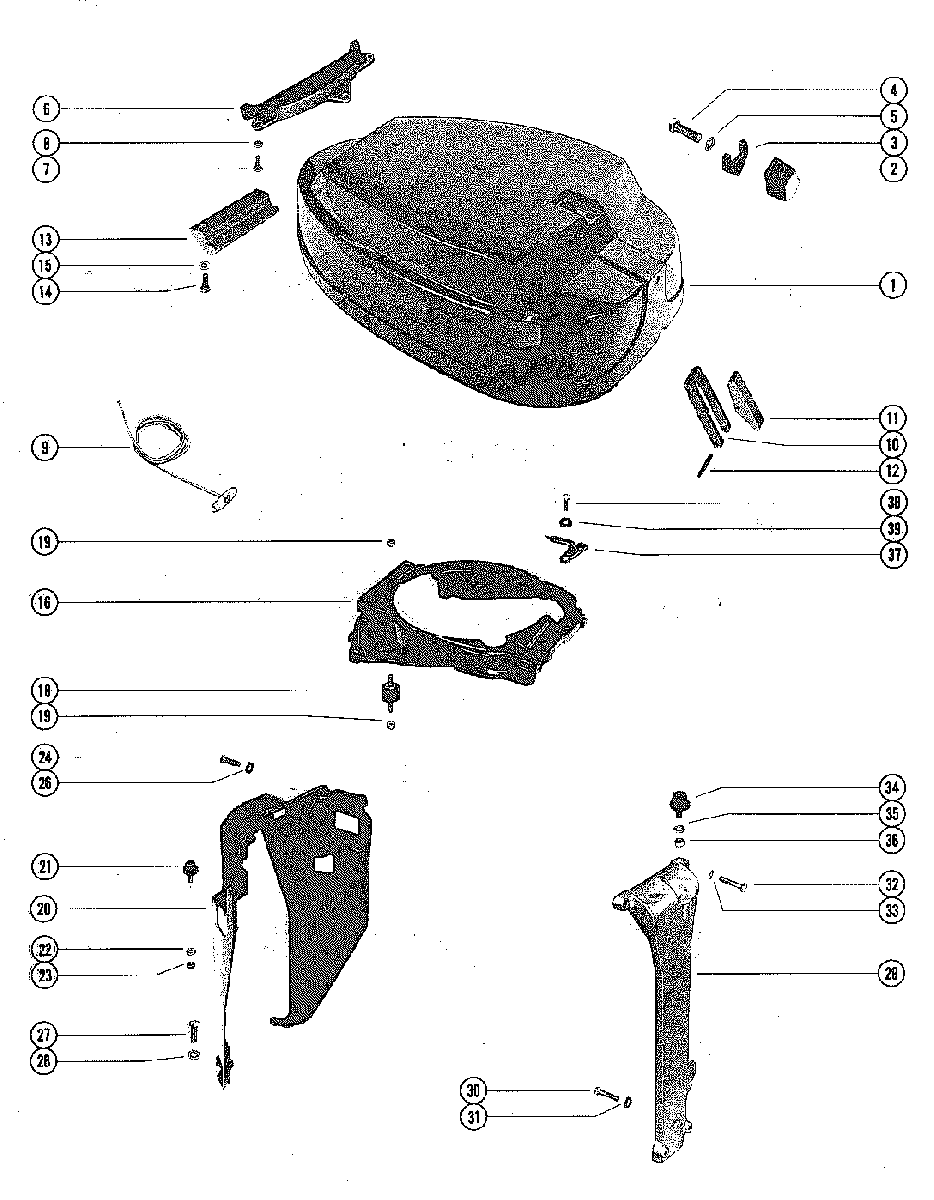

TOP COWL AND SUPPORT BRACKETS для Mercury - 140 8066065 AND UP
-
№АртикулНазвание
-
12114-7934T COWL TOP (WITHOUT DECALS)COWL TOP (WITHOUT DECALS)
-
252733A9 RETAINER ASSEMBLY, TOP COWLRETAINER ASSEMBLY, TOP COWL
-
335496 PAD, BUMPER - TOP COWL RETAINERPAD, BUMPER - TOP COWL RETAINER
-
410-74824 SCREW, RETAINER TO TOP COWL (1 1/4)SCREW, RETAINER TO TOP COWL (1 1/4)
-
513-39107 LOCKWASHER, RETAINER TO TOP COWL SCREWLOCKWASHER, RETAINER TO TOP COWL SCREW
-
676370 SHIELD, TOP COWL - REARSHIELD, TOP COWL - REAR
-
710-37370 SCREW, SHIELD TO TOP COWL (5/8")SCREW, SHIELD TO TOP COWL (5/8")
-
813-37371 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
947341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)ROPE, STARTER (FOR MANUAL STARTING ONLY)
-
1052739 HINGE, COWL LATCH - TOP COWLHINGE, COWL LATCH - TOP COWL
-
1194918F1 LEVER, COWL LATCH HINGELEVER, COWL LATCH HINGE
-
1217-58998 PIN, ROLL - COWL LATCH LEVER TO HINGEPIN, ROLL - COWL LATCH LEVER TO HINGE
-
1355455 HOOK, TOP COWL LATCH - REARHOOK, TOP COWL LATCH - REAR
-
1410-22956 SCREW, REAR HOOK TO TOP COWL (7/8")SCREW, REAR HOOK TO TOP COWL (7/8")
-
1513-26992 LOCKWASHER, REAR HOOK MOUNTING SCREWLOCKWASHER, REAR HOOK MOUNTING SCREW
-
1679897A4 FRAME, TOP COWL SUPPORTFRAME, TOP COWL SUPPORT
-
1890435 MOUNT, RUBBER - TOP COWL FRAMEMOUNT, RUBBER - TOP COWL FRAME
-
1846096 MOUNT, RUBBER
TOP COWL FRAME (HEAVY DUTY)MOUNT, RUBBER
TOP COWL FRAME (HEAVY DUTY) -
1911-35888 NUT, RUBBER MOUNT TO TOP COWL FRAMENUT, RUBBER MOUNT TO TOP COWL FRAME
-
2086472 BRACKET, TOP COWL SUPPORT - REARBRACKET, TOP COWL SUPPORT - REAR
-
2131014 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
2213-26992 LOCKWASHER
RUBBER MOUNT TO REAR SUPPORT BRACKETLOCKWASHER
RUBBER MOUNT TO REAR SUPPORT BRACKET -
2311-29598 NUT
RUBBER MOUNT TO REAR SUPPORT BRACKETNUT
RUBBER MOUNT TO REAR SUPPORT BRACKET -
2410-37562 SCREW, REAR BRACKET TO FRAME (1")SCREW, REAR BRACKET TO FRAME (1")
-
2613-26993 LOCKWASHER, REAR BRACKET SCREWLOCKWASHER, REAR BRACKET SCREW
-
2710-37562 SCREW
REAR BRACKET TO BOTTOM COWL (1")SCREW
REAR BRACKET TO BOTTOM COWL (1") -
2813-26993 LOCKWASHER
REAR SUPPORT BRACKET SCREWLOCKWASHER
REAR SUPPORT BRACKET SCREW -
2942706A1 BRACKET ASSEMBLY, TOP COWL - FRONTBRACKET ASSEMBLY, TOP COWL - FRONT
-
3010-60411 SCREW
FRONT BRACKET TO BOTTOM COWL (1 1/4")SCREW
FRONT BRACKET TO BOTTOM COWL (1 1/4") -
3113-26993 LOCKWASHER
FRONT SUPPORT BRACKET SCREWLOCKWASHER
FRONT SUPPORT BRACKET SCREW -
3210-60411 SCREW
FRONT BRACKET TO TOP COWL FRAME (1 1/2")SCREW
FRONT BRACKET TO TOP COWL FRAME (1 1/2") -
3313-26993 LOCKWASHER
FRONT SUPPORT BRACKET SCREWLOCKWASHER
FRONT SUPPORT BRACKET SCREW -
3437640 MOUNT, RUBBER FRONT SUPPORT BRACKETMOUNT, RUBBER FRONT SUPPORT BRACKET
-
3513-26993 LOCKWASHER
RUBBER MOUNT TO FRONT SUPPORT BRACKETLOCKWASHER
RUBBER MOUNT TO FRONT SUPPORT BRACKET -
3611-28770 NUT
RUBBER MOUNT TO FRONT SUPPORT BRACKETNUT
RUBBER MOUNT TO FRONT SUPPORT BRACKET -
3787991 POINTER, TIMINGPOINTER, TIMING
-
3810-28636 SCREW, TIMING POINTER ATTACHING (3/4")SCREW, TIMING POINTER ATTACHING (3/4")
-
3912-35462 WASHER, TIMING POINTER SCREWWASHER, TIMING POINTER SCREW
