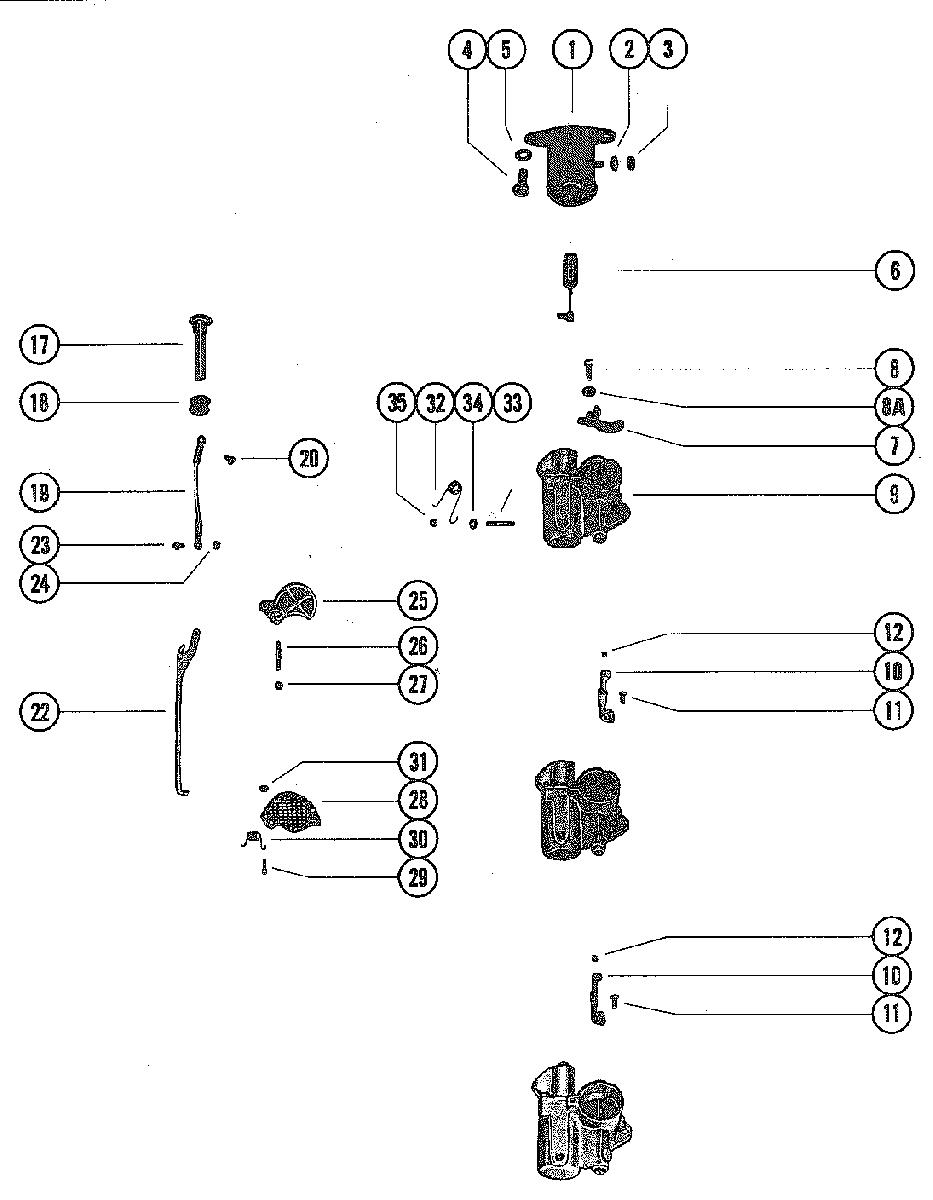

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 140 8066065 AND UP

  • №
    Артикул
    Название
  • 1
    54293A10 CHOKE SOLENOID
    CHOKE SOLENOID
  • 2
    13-26996 LOCKWASHER, SOLENOID TERMINAL
    LOCKWASHER, SOLENOID TERMINAL
  • 3
    11-68219 NUT, SOLENOID TERMINAL
    NUT, SOLENOID TERMINAL
  • 4
    10-25299 SCREW, CHOKE SOLENOID (3/4")
    SCREW, CHOKE SOLENOID (3/4")
  • 5
    13-26993 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 6
    90548A1 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
    PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
  • 7
    85943A1 LEVER, THROTTLE (UPPER CARBURETOR)
    LEVER, THROTTLE (UPPER CARBURETOR)
  • 8
    10-60293 SCREW, THROTTLE LEVER
    SCREW, THROTTLE LEVER
  • 8A
    12-74726 WASHER, THROTTLE LEVER SCREW
    WASHER, THROTTLE LEVER SCREW
  • 9
    1368-7466A1 CARBURETOR ASSEMBLY (TOP)
    CARBURETOR ASSEMBLY (TOP)
  • 9
    1368-7466A3 CARBURETOR ASSEMBLY (CENTER/BOTTOM)
    CARBURETOR ASSEMBLY (CENTER/BOTTOM)
  • 10
    53720A2 THROTTLE PICK-UP BRACKET ASSEMBLY
    THROTTLE PICK-UP BRACKET ASSEMBLY
  • 11
    10-66104 SCREW, THROTTLE BRACKET MOUNTING
    SCREW, THROTTLE BRACKET MOUNTING
  • 12
    28-89694 KEY, THROTTLE COUPLING
    KEY, THROTTLE COUPLING
  • 17
    90242A1 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 18
    25-20116 GROMMET, CHOKE ROD
    GROMMET, CHOKE ROD
  • 19
    49589 STRAP, CHOKE KNOB TO CHOKE ROD
    STRAP, CHOKE KNOB TO CHOKE ROD
  • 20
    10-77137 SCREW, STRAP TO CHOKE KNOB (5/8")
    SCREW, STRAP TO CHOKE KNOB (5/8")
  • 22
    48203 ROD, CHOKE
    ROD, CHOKE
  • 23
    10-48591 SCREW, STRAP TO CHOKE ROD (1/2")
    SCREW, STRAP TO CHOKE ROD (1/2")
  • 24
    11-46438 NUT, STRAP TO CHOKE ROD SCREW
    NUT, STRAP TO CHOKE ROD SCREW
  • 25
    48152 SHUTTER, CHOKE - CARBURETOR
    SHUTTER, CHOKE - CARBURETOR
  • 26
    16-69037 STUD, CARBURETOR - CHOKE SHUTTER PIVOT
    STUD, CARBURETOR - CHOKE SHUTTER PIVOT
  • 27
    11-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUD
    NUT, CHOKE SHUTTER TO CARBURETOR STUD
  • 28
    35-57819 SCREEN ASSEMBLY, FILTER - CARBURETOR
    SCREEN ASSEMBLY, FILTER - CARBURETOR
  • 29
    10-22523 SCREW
    LOWER CARBURETOR FILTER SCREEN TO CARB. (5/8")
    SCREW
    LOWER CARBURETOR FILTER SCREEN TO CARB. (5/8")
  • 29
    10-23015 SCREW
    UPPER CARBURETOR FILTER SCREEN TO CARB. (1")
    SCREW
    UPPER CARBURETOR FILTER SCREEN TO CARB. (1")
  • 30
    24-57818 SPRING, UPPER FILTER SCREEN SCREW
    SPRING, UPPER FILTER SCREEN SCREW
  • 31
    11-20110 NUT
    CARBURETOR FILTER SCREEN FASTENING SCREW
    NUT
    CARBURETOR FILTER SCREEN FASTENING SCREW
  • 32
    24-48230 SPRING, CHOKE ROD TENSION
    SPRING, CHOKE ROD TENSION
  • 33
    10-657461 STUD, CHOKE ROD SPRING TO CARBURETOR
    STUD, CHOKE ROD SPRING TO CARBURETOR
  • 34
    23-32427 SPACER, CHOKE ROD SPRING STUD
    SPACER, CHOKE ROD SPRING STUD
  • 35
    11-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUD
    NUT, CHOKE ROD SPRING TO CARBURETOR STUD
