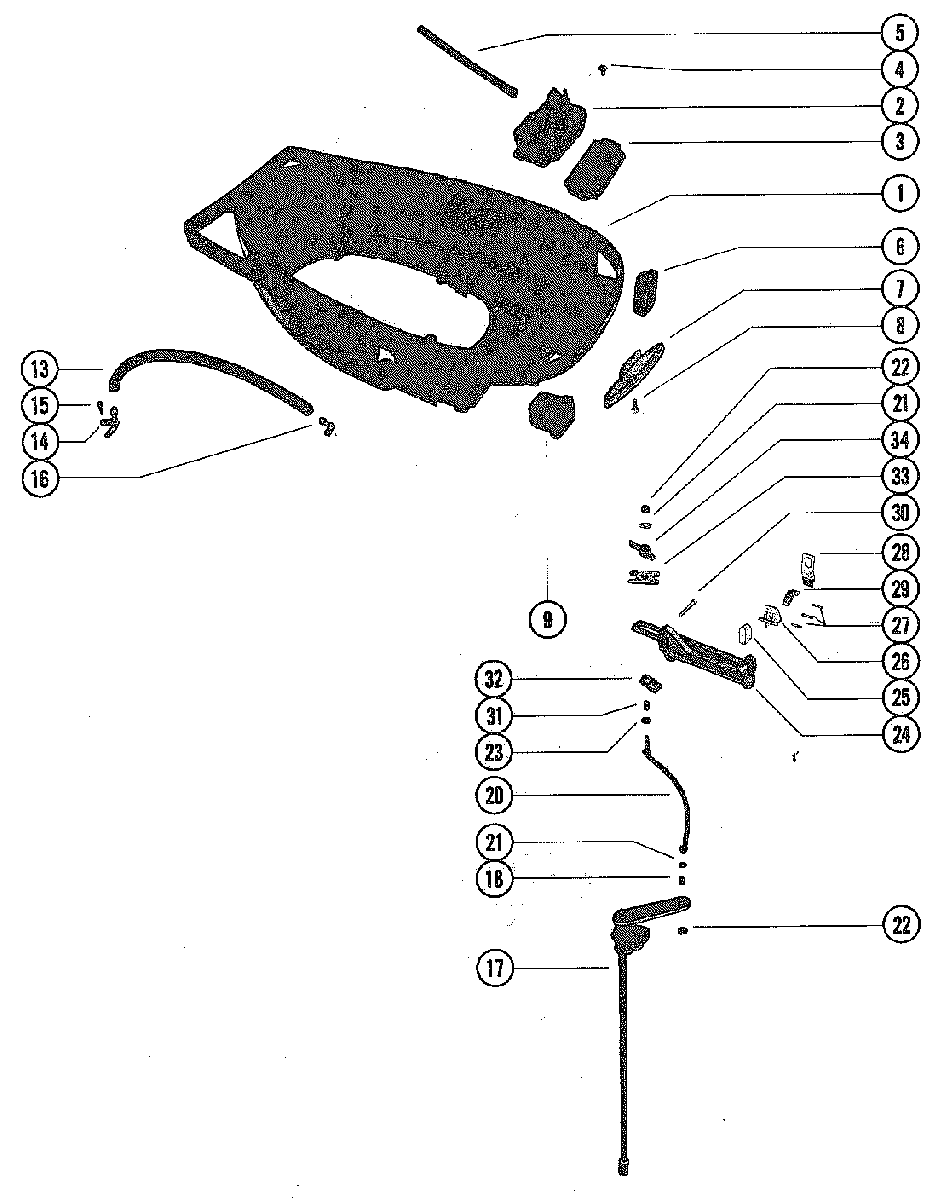

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 140 8066065 AND UP

  • №
    Артикул
    Название
  • 1
    2115-8963A1 COWL, BOTTOM
    COWL, BOTTOM
  • 2
    52862A2 DRIP TRAY ASSEMBLY, BOTTOM COWL
    DRIP TRAY ASSEMBLY, BOTTOM COWL
  • 3
    37940 PAD, SOUND - DRIP TRAY
    PAD, SOUND - DRIP TRAY
  • 4
    10-48408 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
    SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
  • 5
    32-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")
    HOSE, DRIP TRAY TO BOTTOM COWL (8")
  • 6
    39616 BOOT, CONTROL CABLES - BOTTOM COWL
    BOOT, CONTROL CABLES - BOTTOM COWL
  • 7
    76369 SPACER, BOTTOM COWL (COWL FRONT COVER)
    SPACER, BOTTOM COWL (COWL FRONT COVER)
  • 8
    10-48591 SCREW, SPACER TO BOTTOM COWL (1/2")
    SCREW, SPACER TO BOTTOM COWL (1/2")
  • 9
    37637 BOOT, FUEL CONNECTOR - BOTTOM COWL
    BOOT, FUEL CONNECTOR - BOTTOM COWL
  • 13
    32-8M0108355 HOSE, TELL TALE
    EXHAUST COVER TO BOTTOM COWL (21 1/2")
    HOSE, TELL TALE
    EXHAUST COVER TO BOTTOM COWL (21 1/2")
  • 14
    52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
  • 15
    10-48408 SCREW
    TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    SCREW
    TELL TALE NOZZLE TO BOTTOM COWL (1/2")
  • 16
    22-782792 ELBOW, TELL TALE HOSE TO CYLINDER BLOCK
    ELBOW, TELL TALE HOSE TO CYLINDER BLOCK
  • 17
    60304A54 SHIFT SHAFT ASSEMBLY, UPPER
    SHIFT SHAFT ASSEMBLY, UPPER
  • 18
    23-26600 BUSHING, SHIFT SHAFT
    BUSHING, SHIFT SHAFT
  • 20
    73402 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 21
    12-35462 WASHER, LINK ROD
    WASHER, LINK ROD
  • 22
    11-826709109 NUT, LINK ROD
    NUT, LINK ROD
  • 23
    13-29720 WASHER, WAVE - LINK ROD
    WASHER, WAVE - LINK ROD
  • 24
    52732A6 BRACKET, ANCHOR - CONTROL CABLES
    BRACKET, ANCHOR - CONTROL CABLES
  • 25
    39519 CAP, BARREL RETAINER - ANCHOR BRACKET
    CAP, BARREL RETAINER - ANCHOR BRACKET
  • 26
    87609A1 LEVER, NYLON - SHIFT CABLE LOCKING
    LEVER, NYLON - SHIFT CABLE LOCKING
  • 27
    17-47175 PIN, LOCKING LEVER AND COVER FASTENING
    PIN, LOCKING LEVER AND COVER FASTENING
  • 28
    39667 COVER, NYLON - SHIFT CABLE
    COVER, NYLON - SHIFT CABLE
  • 29
    87609A1 LINK, LOCKING LEVER TO COVER
    LINK, LOCKING LEVER TO COVER
  • 30
    10-35386 SCREW
    ANCHOR BRACKET TO CYLINDER BLOCK (1")
    SCREW
    ANCHOR BRACKET TO CYLINDER BLOCK (1")
  • 31
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 32
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 33
    52100 WEAR PLATE, LINK ROD
    WEAR PLATE, LINK ROD
  • 34
    8M0036768 LATCH
    CONTROL CABLE FASTENING - ANCHOR BRACKET
    LATCH
    CONTROL CABLE FASTENING - ANCHOR BRACKET
