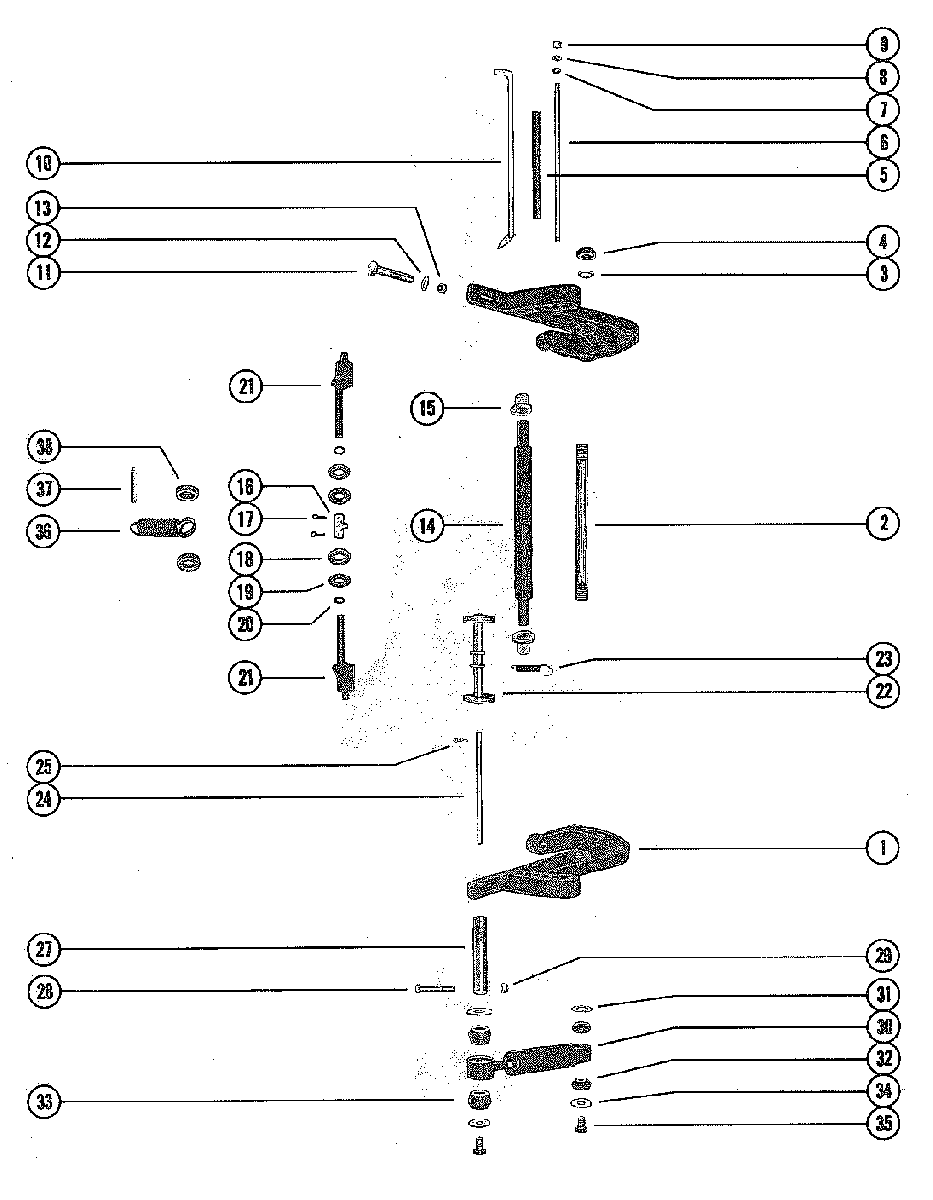

TRANSOM BRACKET для Mercury - 140 8066065 AND UP

  • №
    Артикул
    Название
  • 1
    1496-8822A1 TRANSOM BRACKET
    TRANSOM BRACKET
  • 2
    89099 TUBE, TILT
    TUBE, TILT
  • 3
    13-89297 WASHER, WAVE - TILT TUBE
    WASHER, WAVE - TILT TUBE
  • 4
    11-858869 NUT, TILT TUBE
    NUT, TILT TUBE
  • 5
    23-87642 SPACER, TRANSOM BRACKET STUD
    SPACER, TRANSOM BRACKET STUD
  • 6
    16-87643 STUD
    TRANSOM BRACKET--NOT USED WITH POWER TRIM
    STUD
    TRANSOM BRACKET--NOT USED WITH POWER TRIM
  • 7
    12-36001 WASHER, TRANSOM BRACKET STUD
    WASHER, TRANSOM BRACKET STUD
  • 8
    13-26993 LOCKWASHER, TRANSOM BRACKET STUD
    LOCKWASHER, TRANSOM BRACKET STUD
  • 9
    11-28770 NUT, TRANSOM BRACKET STUD
    NUT, TRANSOM BRACKET STUD
  • 10
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    -NOT USED WITH POWER TRIM
    TILT LOCK PIN ASSEMBLY
    -NOT USED WITH POWER TRIM
  • 11
    10-89673 BOLT, TRANSOM BRACKET TO TRANSOM (5")
    BOLT, TRANSOM BRACKET TO TRANSOM (5")
  • 12
    12-46765 WASHER, TRANSOM BRACKET BOLT
    WASHER, TRANSOM BRACKET BOLT
  • 13
    11-82670912 NUT, TRANSOM BRACKET BOLT
    NUT, TRANSOM BRACKET BOLT
  • 11
    10-677552 BOLT, TRANSOM BRACKET TO TRANSOM (6")
    BOLT, TRANSOM BRACKET TO TRANSOM (6")
  • 12
    12-28421 WASHER, TRANSOM BRACKET BOLT
    WASHER, TRANSOM BRACKET BOLT
  • 13
    11-35000 NUT, TRANSOM BRACKET BOLT
    NUT, TRANSOM BRACKET BOLT
  • 14
    89116 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 15
    23-89117 BUSHING, UPPER SHOCK MOUNTING PIN
    BUSHING, UPPER SHOCK MOUNTING PIN
  • 16
    79659 COUPLING, TILT LOCK
    COUPLING, TILT LOCK
  • 17
    18-47959 COTTER PIN, TILT LOCK
    COTTER PIN, TILT LOCK
  • 18
    26-22734 OIL SEAL, SWIVEL BRACKET (TILT LOCK)
    OIL SEAL, SWIVEL BRACKET (TILT LOCK)
  • 19
    12-76388 WASHER, TILT LOCK
    WASHER, TILT LOCK
  • 20
    25-627021 "O" RING, TILT LOCK
    "O" RING, TILT LOCK
  • 21
    89105 TILT LOCK
    TILT LOCK
  • 22
    87431 REVERSE LOCK ASSEMBLY
    - NOT USED WITH POWER TRIM
    REVERSE LOCK ASSEMBLY
    - NOT USED WITH POWER TRIM
  • 23
    24-78203A2 SPRING ASSEMBLY, REVERSE LOCK
    - NOT USED WITH POWER TRIM
    SPRING ASSEMBLY, REVERSE LOCK
    - NOT USED WITH POWER TRIM
  • 24
    56349 SHAFT, REVERSE LOCK PIVOT
    - NOT USED WITH POWER TRIM
    SHAFT, REVERSE LOCK PIVOT
    - NOT USED WITH POWER TRIM
  • 25
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    - NOT USED WITH POWER TRIM
    COTTER PIN, REVERSE LOCK TO SHAFT
    - NOT USED WITH POWER TRIM
  • 27
    55-28414 PIN, LOWER SHOCK MOUNTING
    PIN, LOWER SHOCK MOUNTING
  • 28
    10-21937 SCREW, LOWER SHOCK PIN (2")
    SCREW, LOWER SHOCK PIN (2")
  • 29
    11-20184 NUT, LOWER SHOCK PIN SCREW
    NUT, LOWER SHOCK PIN SCREW
  • 30
    55-58780A7 SHOCK ABSORBER
    - NOT USED WITH POWER TRIM
    SHOCK ABSORBER
    - NOT USED WITH POWER TRIM
  • 31
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    - NOT USED WITH POWER TRIM
    WASHER, UPPER BUSHING RETAINER (INNER)
    - NOT USED WITH POWER TRIM
  • 32
    23-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    - NOT USED WITH POWER TRIM
    BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    - NOT USED WITH POWER TRIM
  • 33
    23-28198 BUSHING, UPPER - SHOCK ABSORBER (LOWER)
    - NOT USED WITH POWER TRIM
    BUSHING, UPPER - SHOCK ABSORBER (LOWER)
    - NOT USED WITH POWER TRIM
  • 34
    12-69374 WASHER, UPPER/LOWER SHOCK PIN (LOWER)
    - NOT USED WITH POWER TRIM
    WASHER, UPPER/LOWER SHOCK PIN (LOWER)
    - NOT USED WITH POWER TRIM
  • 35
    10-69375 SCREW, UPPER AND LOWER SHOCK PIN
    - NOT USED WITH POWER TRIM
    SCREW, UPPER AND LOWER SHOCK PIN
    - NOT USED WITH POWER TRIM
  • 36
    24-94891 SPRING, COIL - SWIVEL BRACKET
    - NOT USED WITH POWER TRIM
    SPRING, COIL - SWIVEL BRACKET
    - NOT USED WITH POWER TRIM
  • 37
    17-38311 PIN, COIL SPRING MOUNTING
    - NOT USED WITH POWER TRIM
    PIN, COIL SPRING MOUNTING
    - NOT USED WITH POWER TRIM
  • 38
    23-28688 SPACER, RUBBER - COIL SPRING POSITIONING
    - NOT USED WITH POWER TRIM
    SPACER, RUBBER - COIL SPRING POSITIONING
    - NOT USED WITH POWER TRIM
