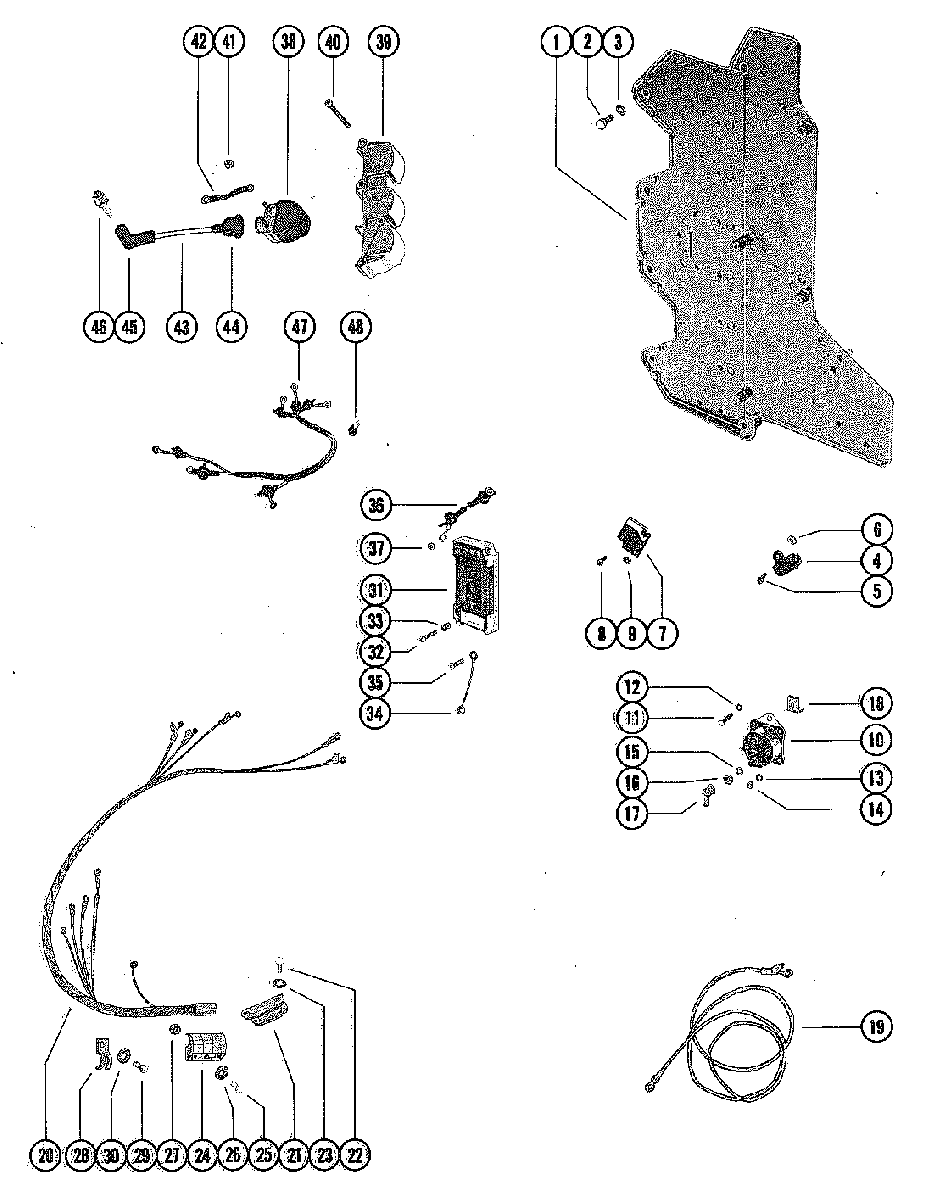

WIRING HARNESS, SWITCH BOX AND IGNITION COIL для Mercury - 140 7150413 AND UP
-
№АртикулНазвание
-
189748T PLATE, ELECTRICAL MOUNTINGPLATE, ELECTRICAL MOUNTING
-
210-86885 SCREW, PLATE TO CYLINDER BLOCK (1 1/2")SCREW, PLATE TO CYLINDER BLOCK (1 1/2")
-
210-28636 SCREW, PLATE TO CYLINDER BLOCK (3/4")SCREW, PLATE TO CYLINDER BLOCK (3/4")
-
210-455611 SCREW, PLATE TO CYLINDER BLOCK (1 1/8")SCREW, PLATE TO CYLINDER BLOCK (1 1/8")
-
312-29245 WASHER, PLATE SCREWWASHER, PLATE SCREW
-
487-33386A3 SWITCH ASSEMBLY, MERCURYSWITCH ASSEMBLY, MERCURY
-
510-25764 SCREW, MERCURY SWITCH TO PLATE (5/8")SCREW, MERCURY SWITCH TO PLATE (5/8")
-
611-45076 NUT, WIRE TO MERCURY SWITCHNUT, WIRE TO MERCURY SWITCH
-
78M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
810-25764 SCREW, RECTIFIER TO IGNITION PLATE (5/8")SCREW, RECTIFIER TO IGNITION PLATE (5/8")
-
911-45076 NUT, RECTIFIER TERMINALSNUT, RECTIFIER TERMINALS
-
1089-853654A1 SOLENOID, STARTERSOLENOID, STARTER
-
1110-38601 SCREW, STARTER SOLENOID TO PLATE (1/2")SCREW, STARTER SOLENOID TO PLATE (1/2")
-
1213-26992 LOCKWASHER, STARTER SOLENOID SCREWLOCKWASHER, STARTER SOLENOID SCREW
-
1313-26996 LOCKWASHER, SOLENOID TERMINALS (#10)LOCKWASHER, SOLENOID TERMINALS (#10)
-
1411-68219 NUT, SOLENOID TERMINALS (10-32)NUT, SOLENOID TERMINALS (10-32)
-
1513-26993 LOCKWASHER, SOLENOID TERMINALS (5/16")LOCKWASHER, SOLENOID TERMINALS (5/16")
-
1611-68292 NUT, SOLENOID TERMINALS (5/16-18)NUT, SOLENOID TERMINALS (5/16-18)
-
1746265 BOOT, TERMINAL - STARTER SOLENOIDBOOT, TERMINAL - STARTER SOLENOID
-
1890547 LOCATOR, STARTER SOLENOIDLOCATOR, STARTER SOLENOID
-
1984-88439A3 BATTERY CABLE ASSEMBLY (POSITIVE)BATTERY CABLE ASSEMBLY (POSITIVE)
-
1984-88439A4 BATTERY CABLE ASSEMBLY (NEGATIVE)BATTERY CABLE ASSEMBLY (NEGATIVE)
-
2084-96188A4 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
2154-88608 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
2210-28636 SCREW, WIRING HARNESS CLAMPSCREW, WIRING HARNESS CLAMP
-
2313-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
2489047 BRACKET, WIRING HARNESSBRACKET, WIRING HARNESS
-
2510-15124 SCREW, WIRING HARNESS BRACKETSCREW, WIRING HARNESS BRACKET
-
2612-38833 WASHER, BRACKET SCREWWASHER, BRACKET SCREW
-
2711-859124 NUT, BRACKET SCREWNUT, BRACKET SCREW
-
2888751 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
2910-28636 SCREW, WIRING HARNESS CLAMPSCREW, WIRING HARNESS CLAMP
-
3012-20533 WASHER, CLAMP SCREWWASHER, CLAMP SCREW
-
31332-7778A12 SWITCH BOX ASSEMBLYSWITCH BOX ASSEMBLY
-
3210-20619 SCREW, SWITCH BOX ATTACHING (1 3/8")SCREW, SWITCH BOX ATTACHING (1 3/8")
-
3323-94304 SPACER, SWITCH BOX SCREWSPACER, SWITCH BOX SCREW
-
3484-60871A10 WIRE ASSEMBLY, SWITCH BOXWIRE ASSEMBLY, SWITCH BOX
-
3510-62568 SCREW, WIRE ATTACHINGSCREW, WIRE ATTACHING
-
3684-62310A3 CABLE ASS'Y
SWITCH BOX TO SWITCH BOX (WHITE AND BLACK)CABLE ASS'Y
SWITCH BOX TO SWITCH BOX (WHITE AND BLACK) -
3711-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
38339-832757A4 COIL ASSEMBLY, IGNITIONCOIL ASSEMBLY, IGNITION
-
3943542 COVER, IGNITION COILCOVER, IGNITION COIL
-
4010-88856 SCREW, IGNITION COIL COVER (2")SCREW, IGNITION COIL COVER (2")
-
4111-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
4284-60466A1 CABLE ASSEMBLY, IGNITION COIL (BLACK)CABLE ASSEMBLY, IGNITION COIL (BLACK)
-
4384-813715A1 CABLE, HIGH TENSIONCABLE, HIGH TENSION
-
44332-2854T01 BOOT, HIGH TENSION CABLEBOOT, HIGH TENSION CABLE
-
4585-63709A1 PROTECTOR, HIGH TENSION CABLEPROTECTOR, HIGH TENSION CABLE
-
4633-97180Q SPARK PLUG (CHAMPION#L76-V)SPARK PLUG (CHAMPION#L76-V)
-
4784-85537A2 HARNESS ASSEMBLY
COIL TO SWITCH BOX (#2, 4 AND 6)HARNESS ASSEMBLY
COIL TO SWITCH BOX (#2, 4 AND 6) -
4784-85537A1 HARNESS ASSEMBLY
COIL TO SWITCH BOX (#1, 3 AND 5)HARNESS ASSEMBLY
COIL TO SWITCH BOX (#1, 3 AND 5) -
4854-63153 CLIP, HARNESS TO COIL COVERCLIP, HARNESS TO COIL COVER
