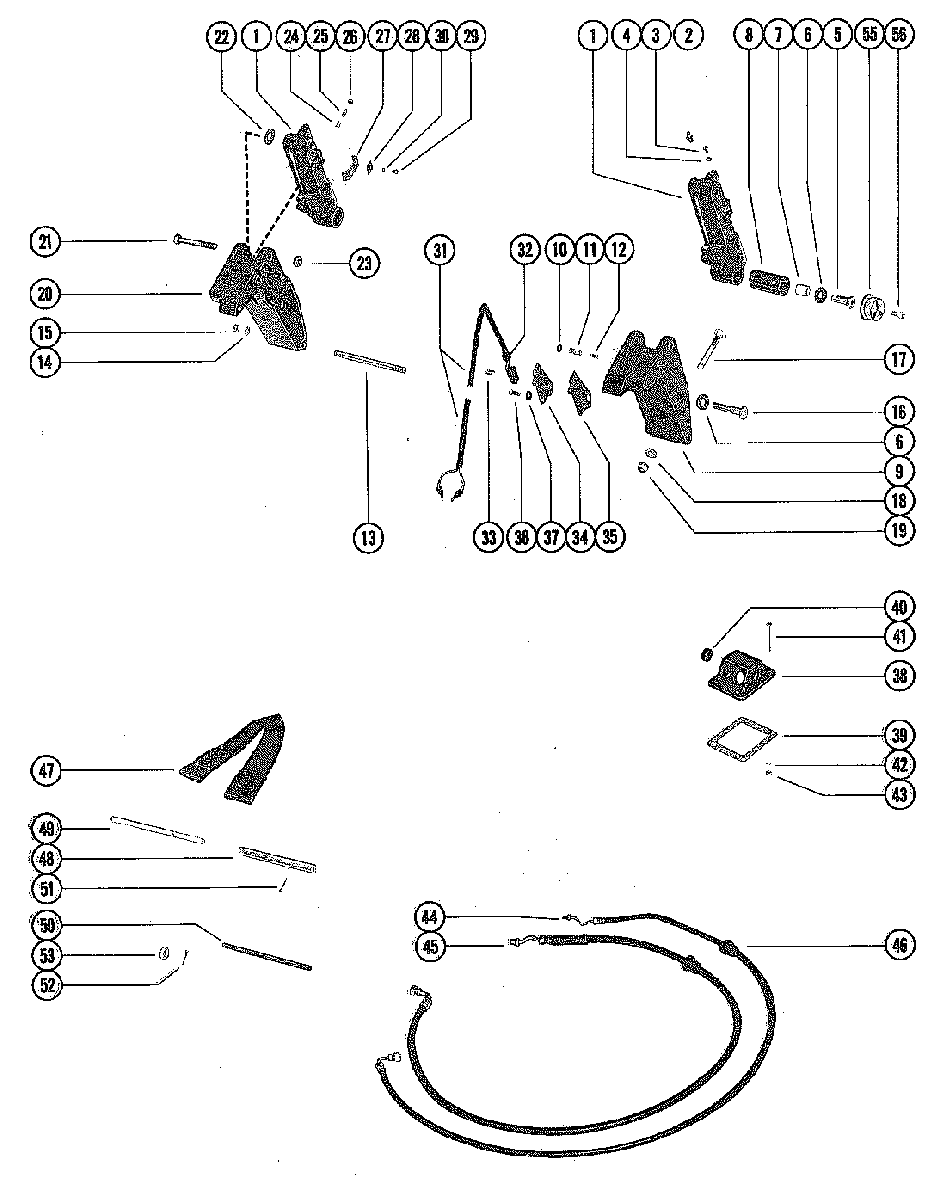

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercury - 140 7150413 AND UP
-
№АртикулНазвание
-
192194A14 TRIM CYLINDER ASSEMBLYTRIM CYLINDER ASSEMBLY
-
222-74036 GREASE FITTING, TRIM CYLINDERGREASE FITTING, TRIM CYLINDER
-
310-45265 SCREW, BLEED - TRIM CYLINDERSCREW, BLEED - TRIM CYLINDER
-
425-45016 "O" RING, TRIM CYLINDER BLEED SCREW"O" RING, TRIM CYLINDER BLEED SCREW
-
510-45264 SCREW
TRIM CYLINDER TO LOWER SHOCK PIN (1 9/16")SCREW
TRIM CYLINDER TO LOWER SHOCK PIN (1 9/16") -
612-28421 WASHER, TRIM CYLINDER BOLTWASHER, TRIM CYLINDER BOLT
-
723-45280 SPACER, TRIM CYLINDER - LOWERSPACER, TRIM CYLINDER - LOWER
-
823-94907A1 BUSHING, RUBBER - TRIM CYLINDERBUSHING, RUBBER - TRIM CYLINDER
-
989108A3 BRACKET, MOUNTING - TRIM CYLINDER (PORT)BRACKET, MOUNTING - TRIM CYLINDER (PORT)
-
1026-70608 OIL SEAL, PORT MOUNTING BRACKETOIL SEAL, PORT MOUNTING BRACKET
-
1189290 PLUNGER, LIMIT SWITCH ACTUATINGPLUNGER, LIMIT SWITCH ACTUATING
-
1224-95881 SPRING, TENSION - LIMIT SWITCH PLUNGERSPRING, TENSION - LIMIT SWITCH PLUNGER
-
1316-45282 STUD
MOUNTING BRACKET AND TRANSOM BRACKETSTUD
MOUNTING BRACKET AND TRANSOM BRACKET -
1413-26993 LOCKWASHER
MOUNTING BRACKET TO TRANSOM BRACKET STUDLOCKWASHER
MOUNTING BRACKET TO TRANSOM BRACKET STUD -
1511-28770 NUT
MOUNTING BRACKET TO TRANSOM BRACKET STUDNUT
MOUNTING BRACKET TO TRANSOM BRACKET STUD -
1610-45263 SCREW
MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4")SCREW
MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4") -
1710-68298 BOLT
MOUNTING BRACKET TO BOAT TRANSOM (3 1/4")BOLT
MOUNTING BRACKET TO BOAT TRANSOM (3 1/4") -
1710-89673 BOLT
MOUNTING BRACKET TO BOAT TRANSOM (5")BOLT
MOUNTING BRACKET TO BOAT TRANSOM (5") -
1812-46765 WASHER, MOUNTING BRACKET BOLTWASHER, MOUNTING BRACKET BOLT
-
1911-82670912 NUT, MOUNTING BRACKET BOLTNUT, MOUNTING BRACKET BOLT
-
2089111T BRACKET
MOUNTING - TRIM CYLINDER (STARBOARD)BRACKET
MOUNTING - TRIM CYLINDER (STARBOARD) -
2110-45328 SCREW
TRIM CYLINDER TO MOUNTING BRACKET (3 9/16")SCREW
TRIM CYLINDER TO MOUNTING BRACKET (3 9/16") -
2212-37807 WASHER
TRIM CYLINDER SCREW (STARBOARD ONLY)WASHER
TRIM CYLINDER SCREW (STARBOARD ONLY) -
2311-20696 NUT, TRIM CYLINDER SCREWNUT, TRIM CYLINDER SCREW
-
2424-24390 SPRING, TENSION - ADJUSTING STUDSPRING, TENSION - ADJUSTING STUD
-
2516-8M0034461 STUD, ADJUSTING - CUT-OUT LIMIT SWITCHSTUD, ADJUSTING - CUT-OUT LIMIT SWITCH
-
2611-859124 NUT, JAM - LIMIT SWITCH ADJUSTING STUDNUT, JAM - LIMIT SWITCH ADJUSTING STUD
-
2799897 CAM, LIMIT SWITCH ADJUSTING STUDCAM, LIMIT SWITCH ADJUSTING STUD
-
2886967 PLATE, RETAINING - LIMIT SWITCH CAMPLATE, RETAINING - LIMIT SWITCH CAM
-
2910-68513 SCREW
RETAINING PLATE AND CAM TO TRIM CYLINDERSCREW
RETAINING PLATE AND CAM TO TRIM CYLINDER -
3013-26996 LOCKWASHER
RETAINING PLATE AND CAM SCREWLOCKWASHER
RETAINING PLATE AND CAM SCREW -
3145326A2 SWITCH ASSEMBLY, CUT-OUT LIMITSWITCH ASSEMBLY, CUT-OUT LIMIT
-
3223-45354 BUSHING, RUBBER - CUT-OUT LIMIT SWITCHBUSHING, RUBBER - CUT-OUT LIMIT SWITCH
-
3310-47255 SCREW
CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16")SCREW
CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16") -
3489272 COVER, LIMIT SWITCHCOVER, LIMIT SWITCH
-
3527-892731 GASKET, LIMIT SWITCH COVERGASKET, LIMIT SWITCH COVER
-
3610-34994 SCREW
LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16")SCREW
LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16") -
3712-38833 WASHER, LIMIT SWITCH COVER SCREWWASHER, LIMIT SWITCH COVER SCREW
-
3887774A1 COVER, INLET - TRANSOMCOVER, INLET - TRANSOM
-
3927-87775 GASKET, INLET COVERGASKET, INLET COVER
-
4025-45507 GROMMET, RUBBER - INLET COVERGROMMET, RUBBER - INLET COVER
-
4110-32866 SCREW, INLET COVER TO BOAT (2")SCREW, INLET COVER TO BOAT (2")
-
4212-20878 WASHER, INLET COVER SCREWWASHER, INLET COVER SCREW
-
4311-826709106 NUT, INLET COVER SCREWNUT, INLET COVER SCREW
-
4432-88005 HOSE
TRIM - CYLINDER TO CONTROL VALVE (5') - 12/32" O.D.HOSE
TRIM - CYLINDER TO CONTROL VALVE (5') - 12/32" O.D. -
4532-88006 HOSE
LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D.HOSE
LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. -
4623-35977 GROMMET, RUBBER - LIFT HOSE AND TRIM HOSEGROMMET, RUBBER - LIFT HOSE AND TRIM HOSE
-
4773519A1 TILT STOPTILT STOP
-
4869259 TUBE, MOUNTING - TILT STOPTUBE, MOUNTING - TILT STOP
-
4977669 PIN, MOUNTING TUBEPIN, MOUNTING TUBE
-
5063473 TUBE, CUSHIONTUBE, CUSHION
-
5118-36002 COTTER PIN, MOUNTING TUBE PINCOTTER PIN, MOUNTING TUBE PIN
-
5218-45882 COTTER PIN, TILT PIN RETAININGCOTTER PIN, TILT PIN RETAINING
-
5312-39304 WASHER, TILT PINWASHER, TILT PIN
-
5570679 COVER, TRIM CYLINDERCOVER, TRIM CYLINDER
-
5610-37655 SCREW, TRIM CYLINDER COVERSCREW, TRIM CYLINDER COVER
