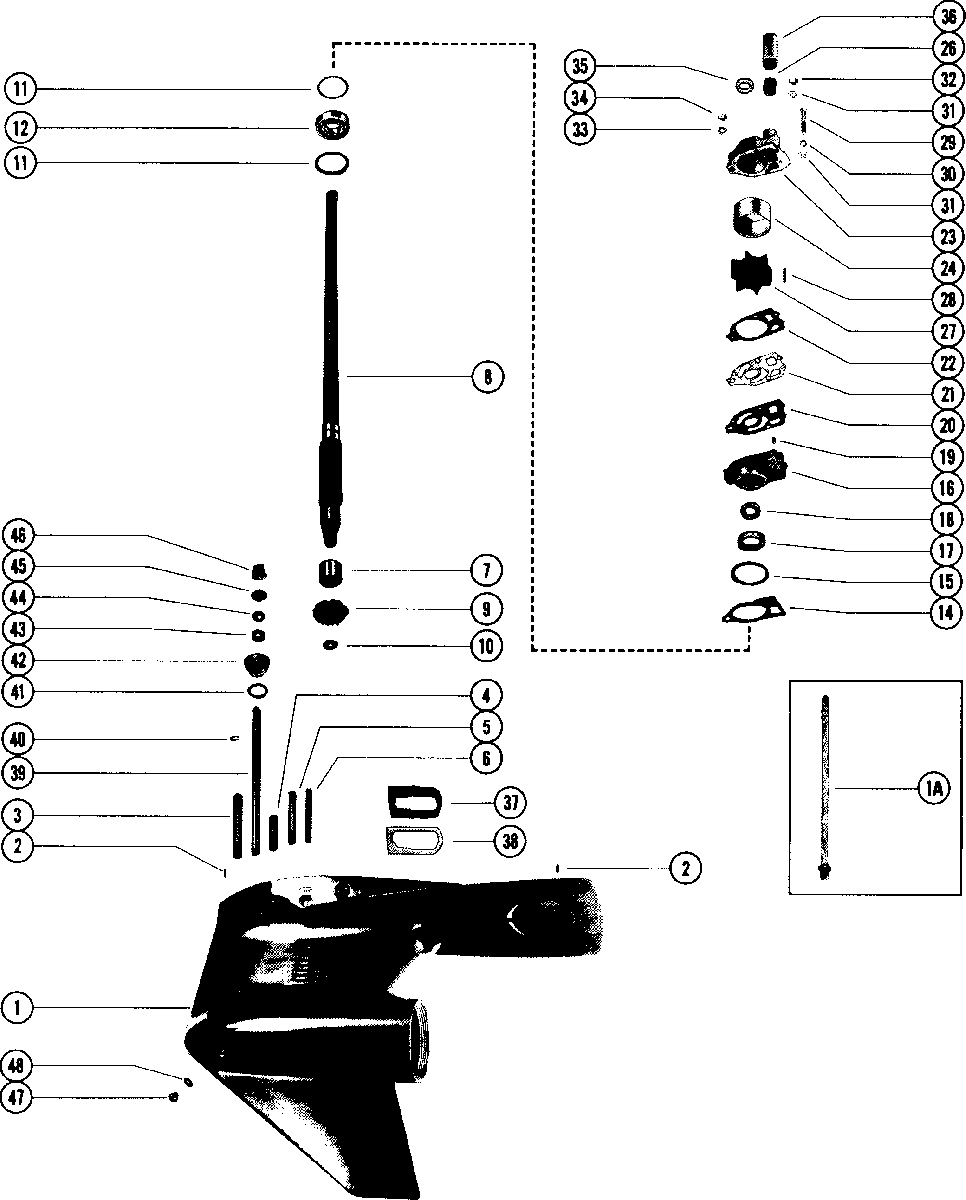

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 140 7150413 AND UP

  • №
    Артикул
    Название
  • -
    1655-7333T24 GEAR HOUSING ASS'Y COMP. (SEE NOTE BELOW)
    GEAR HOUSING ASS'Y COMP. (SEE NOTE BELOW)
  • 1
    1655-7333T23 GEAR HOUSING ASS'Y
    GEAR HOUSING ASS'Y
  • 1A
    22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER
    CONNECTOR ASSEMBLY, SPEEDOMETER
  • 2
    17-8M0084726 DOWEL PIN, GEAR HOUSING LOCATING
    DOWEL PIN, GEAR HOUSING LOCATING
  • 3
    16-57921 STUD
    GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
    STUD
    GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
  • 4
    16-8M0133358 STUD
    GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")
    STUD
    GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")
  • 5
    16-8M0034463 STUD
    WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
    STUD
    WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
  • 6
    16-306671 STUD
    WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
    STUD
    WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
  • 7
    31-32898T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 8
    45-42646 DRIVE SHAFT
    DRIVE SHAFT
  • 9
    43-68548T3 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
    Производитель Mercury-Mercruiser
  • 10
    11-35921 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 11
    23-70412 SPACER, BALL BEARING TO BASE
    SPACER, BALL BEARING TO BASE
  • 11
    15-57007A1 SHIM, BALL BEARING TO BASE
    SHIM, BALL BEARING TO BASE
  • 12
    31-69220T ROLLER BEARING, DRIVE SHAFT
    ROLLER BEARING, DRIVE SHAFT
  • 14
    27-856704 GASKET, WATER PUMP BASE
    GASKET, WATER PUMP BASE
  • 15
    25-33145 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 16
    46-96146A5 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 17
    26-94038 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 18
    26-16977 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 19
    17-8M0084627 DOWEL PIN
    WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN
    WATER PUMP BASE TO WATER PUMP BODY
  • 20
    27-8M0090319 GASKET, LOWER
    WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER
    WATER PUMP BASE TO FACE PLATE
  • 21
    324351 PLATE, FACE
    WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE
    WATER PUMP BASE TO WATER PUMP BODY
  • 22
    27-858524 GASKET, UPPER
    FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER
    FACE PLATE TO WATER PUMP BODY
  • 23
    46-96148T1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 24
    48752T INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 26
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 27
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 28
    28-8M0032834 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 29
    10-30720 SCREW
    WATER PUMP BODY TO GEAR HOUSING (2 1/4")
    SCREW
    WATER PUMP BODY TO GEAR HOUSING (2 1/4")
  • 30
    13-26992 LOCKWASHER, WATER PUMP BODY SCREW
    LOCKWASHER, WATER PUMP BODY SCREW
  • 31
    12-29245 WASHER
    WATER PUMP BODY FASTENING SCREW AND STUD
    WASHER
    WATER PUMP BODY FASTENING SCREW AND STUD
  • 32
    11-35888 NUT, WATER PUMP FASTENING SCREW
    NUT, WATER PUMP FASTENING SCREW
  • 33
    12-36001 WASHER, WATER PUMP BODY FASTENING STUD
    WASHER, WATER PUMP BODY FASTENING STUD
  • 34
    11-82670911 NUT, WATER PUMP BODY FASTENING STUD
    NUT, WATER PUMP BODY FASTENING STUD
  • 35
    25-30271 RING, RUBBER
    CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER
    CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 36
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 37
    37641001 SEAL, EXHAUST ELBOW
    SEAL, EXHAUST ELBOW
  • 38
    38051 PLATE, SUPPORT - EXHAUST TUBE SEAL
    PLATE, SUPPORT - EXHAUST TUBE SEAL
  • 39
    76062A1 SHAFT ASSEMBLY, SHIFT - LOWER
    SHAFT ASSEMBLY, SHIFT - LOWER
  • 40
    53-29641 "E" RING, RETAINING - SHIFT SHAFT
    "E" RING, RETAINING - SHIFT SHAFT
  • 41
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 42
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 43
    26-8164641 OIL SEAL, SHIFT SHAFT BUSHING
    .
    OIL SEAL, SHIFT SHAFT BUSHING
    .
  • 44
    12-77674 WASHER, RUBBER - SHIFT SHAFT BUSHING
    .
    WASHER, RUBBER - SHIFT SHAFT BUSHING
    .
  • 45
    78036 SPACER, LOWER
    REVERSE LOCKING NOT USED WITH FULL POWER TRIM NOT USED WITH FULL POWER TRIM
    SPACER, LOWER
    REVERSE LOCKING NOT USED WITH FULL POWER TRIM NOT USED WITH FULL POWER TRIM
  • 46
    43308T1 CAM, REVERSE LOCKING
    NOT USED WITH FULL POWER TRIM
    CAM, REVERSE LOCKING
    NOT USED WITH FULL POWER TRIM
  • 47
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 47
    22-8M0058389 PLUG, DRAIN (MAGNETIC)
    PLUG, DRAIN (MAGNETIC)
  • 48
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
  • -
    27-85653A87 GASKET SET
    GASKET SET
  • -
    46-96148A8 WATER PUMP REPAIR KIT
    WATER PUMP REPAIR KIT
  • -
    26-55682A1 SEAL REPAIR KIT
    SEAL REPAIR KIT
