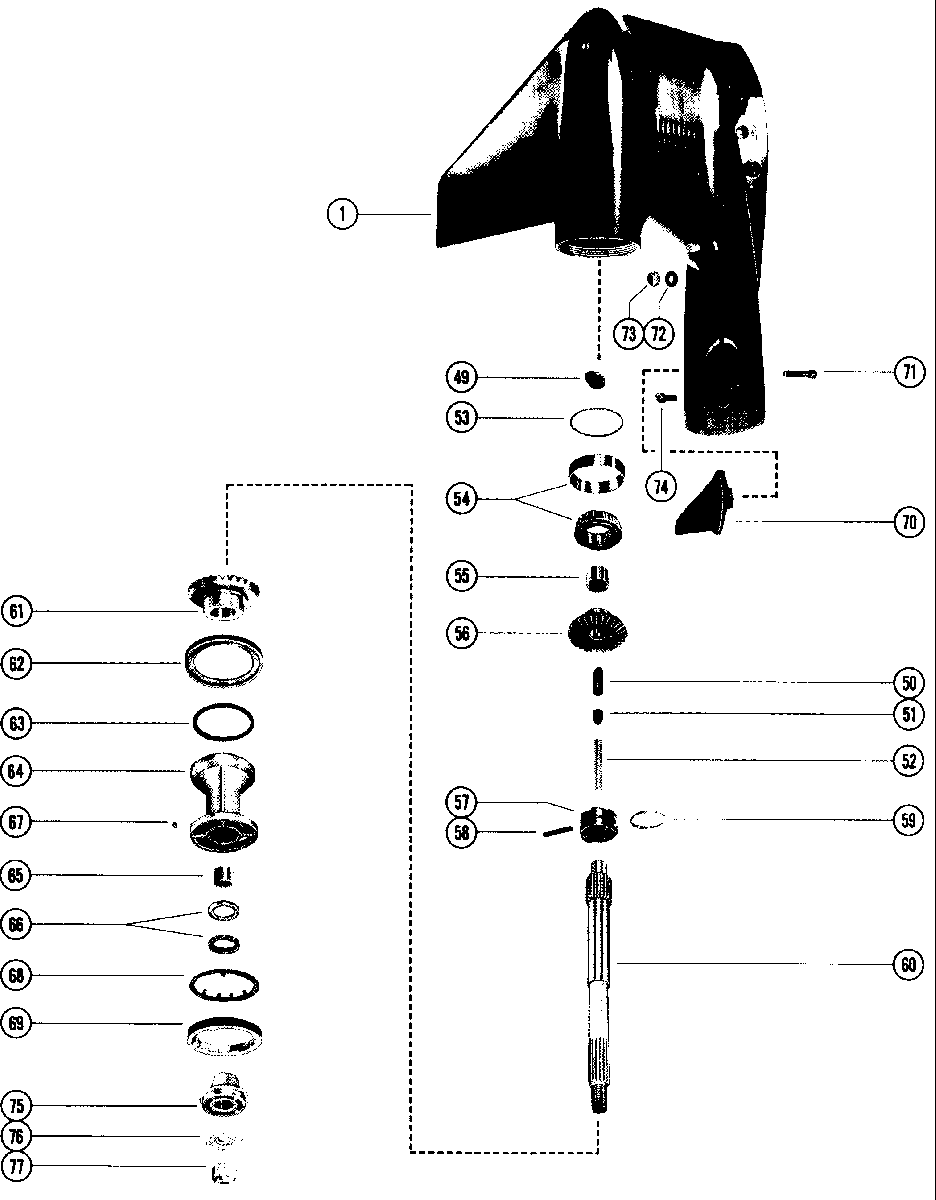

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 140 7150413 AND UP
-
№АртикулНазвание
-
-1655-7333T24 GEAR HOUSING ASS'Y, COMP. (SEE NOTE BELOW)GEAR HOUSING ASS'Y, COMP. (SEE NOTE BELOW)
-
11655-7333T23 GEAR HOUSING ASS'YGEAR HOUSING ASS'Y
-
49760394 CAM, SHIFTCAM, SHIFT
-
5030625 FOLLOWER, CAMFOLLOWER, CAM
-
5130624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5224-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5315-30923A1 SHIM
BEARING OUTER RACE TO HOUSING (.002-3-5-10)SHIM
BEARING OUTER RACE TO HOUSING (.002-3-5-10) -
5431-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5531-30895T BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5643-68447T1 FORWARD GEARFORWARD GEAR
-
5752-822539T RATCHET, SLIDING GEARRATCHET, SLIDING GEAR
-
5817-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
5924-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6044-93003 SHAFT, PROPELLERSHAFT, PROPELLER
-
6143-76250T REVERSE GEARREVERSE GEAR
-
6212-76358 WASHER, THRUST
BEARING CARRIER TO GEAR HOUSINGWASHER, THRUST
BEARING CARRIER TO GEAR HOUSING -
6325-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6441529T2 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6531-30956T BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
6626-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
6728-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
6814-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
6952699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7097-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
7110-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
7212-45176 WASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS -
7311-34933 NUT
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS -
7410-65210 SCREW
GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW
GEAR HOUSING TO DRIVE SHAFT HOUSING (1") -
7513191Q01 THRUST HUBTHRUST HUB
-
7614-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
7711-52707Q1 NUT, PROPELLERNUT, PROPELLER
-
-27-85653A87 GASKET SETGASKET SET
