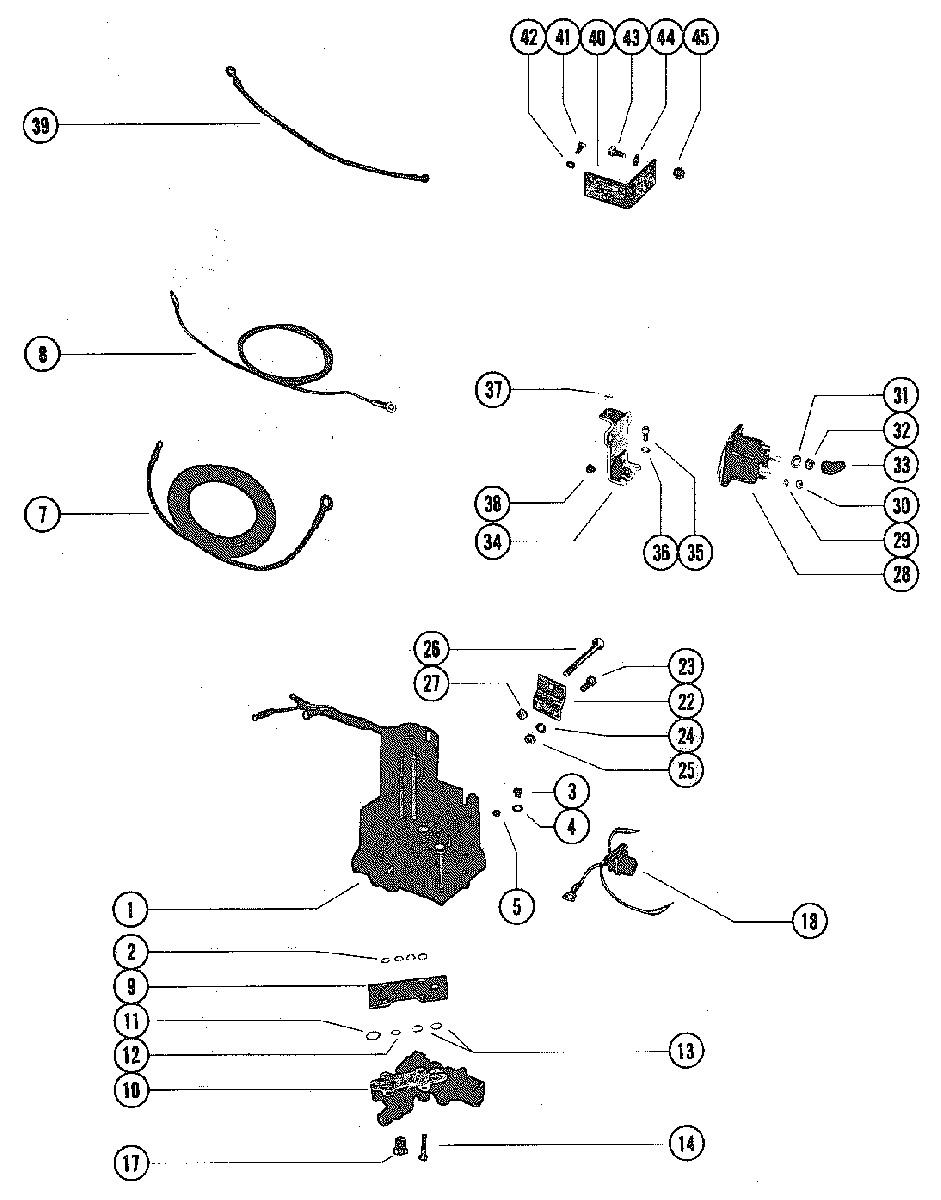

HYDRAULIC PUMP AND CONTROL VALVE для Mercury - 140 7150413 AND UP

№

Артикул

Название
1

92975A32 HYDRAULIC PUMP ASSEMBLY (SEE NOTE BELOW)

HYDRAULIC PUMP ASSEMBLY (SEE NOTE BELOW)

130 600 ₽
2

25-48171 "O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE

"O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE

130 ₽
3

10-79953Q04 SCREW, FILLER - HYDRAULIC PUMP

SCREW, FILLER - HYDRAULIC PUMP

1 000 ₽
4

12-191833 WASHER
SEALING - HYDRAULIC PUMP FILLER SCREW

WASHER
SEALING - HYDRAULIC PUMP FILLER SCREW

60 ₽
5

10-62269 SCREW, VENT - HYDRAULIC PUMP

SCREW, VENT - HYDRAULIC PUMP

0 ₽
7

32979 BATTERY LEAD (POSITIVE)

BATTERY LEAD (POSITIVE)

0 ₽
8

32988 BATTERY LEAD (NEGATIVE)

BATTERY LEAD (NEGATIVE)

0 ₽
9

45336 PLATE, MANIFOLD

PLATE, MANIFOLD

0 ₽
10

45197A2 CONTROL VALVE ASSEMBLY

CONTROL VALVE ASSEMBLY

0 ₽
--

25-48171 "O" RING, PUMP TO MANIFOLD PLATE (SEE REF. #2)

"O" RING, PUMP TO MANIFOLD PLATE (SEE REF. #2)

130 ₽
11

25-45254 "O" RING
CONTROL VALVE TO MANIFOLD PLATE (3/4" O.D.)

"O" RING
CONTROL VALVE TO MANIFOLD PLATE (3/4" O.D.)

150 ₽
12

25-48171 "O" RING
CONTROL VALVE TO MANIFOLD PLATE (1/2" O.D.)

"O" RING
CONTROL VALVE TO MANIFOLD PLATE (1/2" O.D.)

130 ₽
13

25-45253 "O" RING
CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.)

"O" RING
CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.)

120 ₽
14

10-56500 SCREW
VALVE AND MANIFOLD PLATE TO PUMP (1 1/4")

SCREW
VALVE AND MANIFOLD PLATE TO PUMP (1 1/4")

210 ₽
17

22-46008 PLUG, CONTROL VALVE (1/2-20")

PLUG, CONTROL VALVE (1/2-20")

450 ₽
18

84-74023A1 CONNECTOR AND HARNESS

CONNECTOR AND HARNESS

0 ₽
22

45377T BRACKET, MOUNTING
HYDRAULIC PUMP TO BOAT

BRACKET, MOUNTING
HYDRAULIC PUMP TO BOAT

0 ₽
23

10-35386 SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (1")

SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (1")

90 ₽
24

13-39107 LOCKWASHER, MOUNTING BRACKET SCREW

LOCKWASHER, MOUNTING BRACKET SCREW

120 ₽
25

11-21908 NUT, MOUNTING BRACKET SCREW

NUT, MOUNTING BRACKET SCREW

180 ₽
26

10-68298 BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")

BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")

0 ₽
27

11-82670912 NUT, HYDRAULIC PUMP BOLT

NUT, HYDRAULIC PUMP BOLT

410 ₽
28

89-853654A1 STARTER SOLENOID

STARTER SOLENOID

4 900 ₽
29

13-26996 LOCKWASHER
STARTER SOLENOID TERMINAL (#10)

LOCKWASHER
STARTER SOLENOID TERMINAL (#10)

60 ₽
30

11-68219 NUT, STARTER SOLENOID TERMINAL (#10)

NUT, STARTER SOLENOID TERMINAL (#10)

50 ₽
31

13-26993 LOCKWASHER
STARTER SOLENOID TERMINAL (5/16")

LOCKWASHER
STARTER SOLENOID TERMINAL (5/16")

140 ₽
32

11-68292 NUT, STARTER SOLENOID TERMINAL (5/16")

NUT, STARTER SOLENOID TERMINAL (5/16")

200 ₽
33

46265 BOOT, RUBBER - STARTER SOLENOID TERMINAL

BOOT, RUBBER - STARTER SOLENOID TERMINAL

340 ₽
34

74407T BRACKET, MOUNTING - STARTER SOLENOID

BRACKET, MOUNTING - STARTER SOLENOID

0 ₽
35

10-21140 SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")

SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")

0 ₽
36

13-26992 LOCKWASHER, MOUNTING BRACKET SCREW

LOCKWASHER, MOUNTING BRACKET SCREW

70 ₽
37

11-24656 NUT
MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT

NUT
MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT

0 ₽
38

269011 BUMPER, RUBBER - SOLENOID BRACKET

BUMPER, RUBBER - SOLENOID BRACKET

290 ₽
39

84-79139A2 BATTERY LEAD (POSITIVE)

BATTERY LEAD (POSITIVE)

0 ₽
39

55992 BATTERY LEAD (NEGATIVE)

BATTERY LEAD (NEGATIVE)

0 ₽
40

74406 BRACKET, MOUNTING - STARTER SOLENOID

BRACKET, MOUNTING - STARTER SOLENOID

0 ₽
41

10-69028 SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")

SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")

180 ₽
42

13-26992 LOCKWASHER, MOUNTING BRACKET SCREW

LOCKWASHER, MOUNTING BRACKET SCREW

70 ₽
43

10-34290 SCREW
STARTER SOLENOID TO MOUNTING BRACKET (5/8")

SCREW
STARTER SOLENOID TO MOUNTING BRACKET (5/8")

60 ₽
44

13-26992 LOCKWASHER, STARTER SOLENOID SCREW

LOCKWASHER, STARTER SOLENOID SCREW

70 ₽
45

11-21825 NUT, STARTER SOLENOID SCREW

NUT, STARTER SOLENOID SCREW

130 ₽
